36 Way Flanged Collector Slip Ring Multi Channel Used In Electronic Toys
Price:
＄19-199
MOQ:
1
Delivery Time:
3 weeks ARO
Brand:
GUREN
Product Description
36-way 2A OD 22mm Flange Collector Ring Multi-channel High Quality Teflon Wire Used In Electronic Toys
Product Attributes
| Outer diameter | 22mm |
| Length | 54.5mm |
| Radial runout tolerance | ≤0.1mm |
| Single channel current | 2A |
| Sealing ring | Fluororubber (FKM) |
| Vibration resistance | 10g@5~500Hz |
Product Description
The WX22-36PS miniature flange collector ring provides 36 2A current channels with standard AWG28# (0.32mm²) Teflon tinned copper wire conductors. Designed for low power requirements, it ensures efficient energy transmission with low contact resistance, ideal for 12V/24V low voltage systems including rotating LED lights and small test equipment.
Product Features
- 360° rotation anti-winding design ensures stable current and signal transmission, supporting analog signals and low-frequency data
- Integrated structural design with one-piece injection molding for compact size (22mm diameter, 54.5mm length)
- Fast rotation speed of 150RPM per minute
- Gold-plated cluster brush technology for strong conductivity and excellent signal transmission
- High-quality Teflon wire with corrosion resistance, strong insulation, and long service life
- Certified with CE, ROHS and other institutional standards
Performance Parameters
| Dielectric strength | 300VCA@50Hz,60s |
| Insulation resistance | ≥500MΩ/300VDC |
| Dynamic resistance change value | ＜10mΩ |
| Rated voltage | 0～240VDC/VAC |
| Wire Specifications | 28AWG Teflon wire |
| Wire length | Rotor 250mm; stator 250mm |
| Operating temperature | -20℃～+80℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP51 |
| Shell material | Engineering Plastics |
| Rotational torque | 0.05N.m,+0.01N.m/6-way |
| Service life | 2 million rpm |

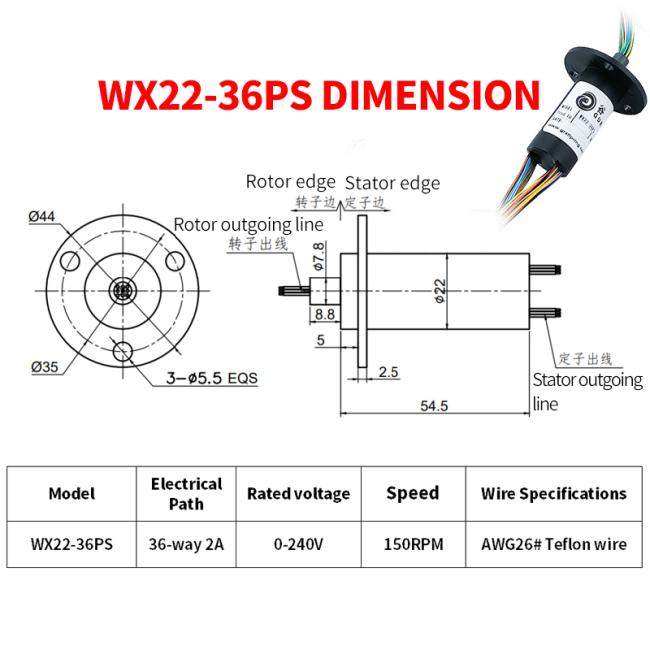

Product Dimensions

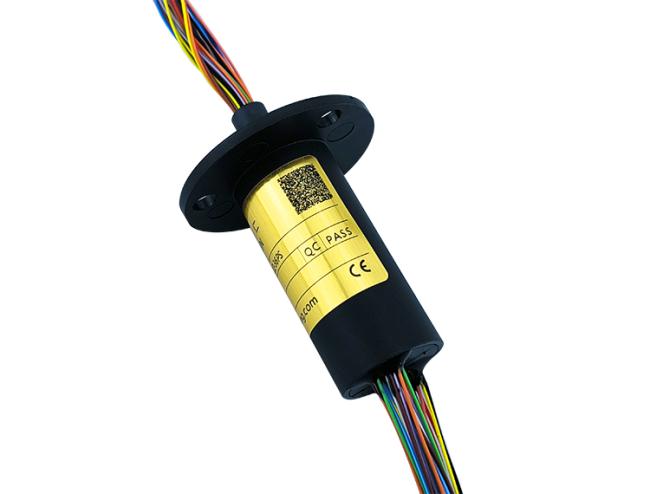

Product Images
Applications
The WX22-36PS miniature flange collector ring is designed for use in drones, stabilizers, smart homes, security monitoring systems, photography and videography equipment, robots, test instruments, turntables, and automation equipment.
