Oil Filled Power Transformer 2500KVA 1600 2000Kva Copper Winding Low Loss
MOQ:
1
Delivery Time:
Negotiable
Brand:
HENTG Power
Product Description

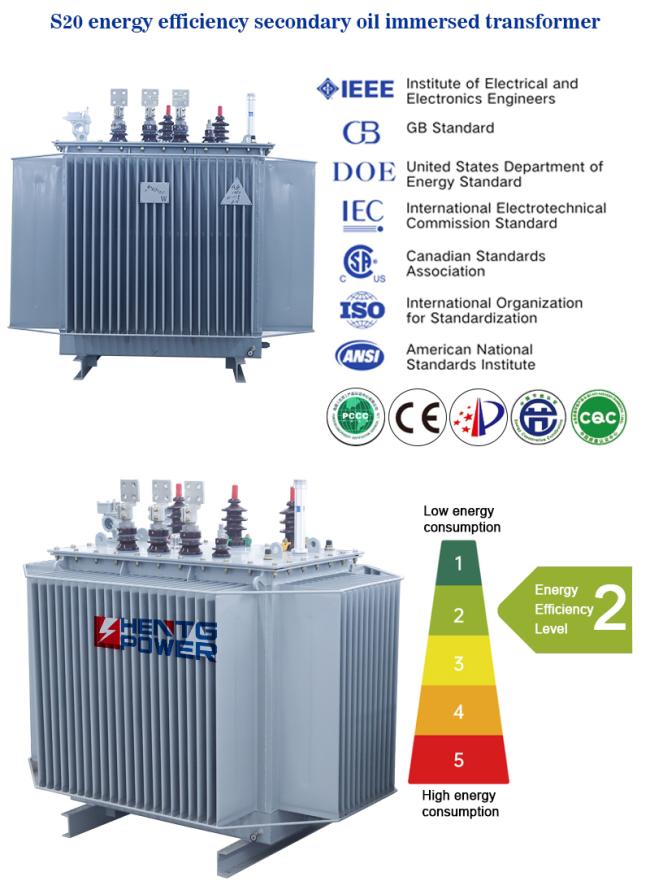

Oil Filled Power Transformer 2500KVA 1600-2000KVA Copper Winding Low Loss
Product Specifications
| Attribute | Value |
|---|---|
| Type | Distribution transformer, Oil-filled Transformer |
| Frequency | 50Hz, 60Hz |
| Phase | Three |
| Coil Structure | TOROIDAL |
| Coil Material | Copper |
| Input Voltage | 180V, 115V, 3kV, 6kV, 10kV, 15kV |
| Output Voltage | 400V, 208V, 200V, 415V, 127V, 9V, 11kV, 12V, 24V, 36V, 48V |
| Cooling Method | ONAN (Oil Natural Air Natural) or ONAF (Oil Natural Air Forced) |
| Rated Capacity | 1600-3200kva |
| Voltage Range | Hv 110±8X1.25% |
Product Overview
Our oil-immersed distribution transformers are widely used in power transmission, industrial and commercial electricity, renewable energy systems, and urban infrastructure. With a capacity range from 30kVA to 2500kVA and voltage levels up to 35kV, these units feature low loss, high reliability, and stable operation, fully compliant with IEC, ANSI, and other international standards.
Key Benefits
- Flexible installation for various project requirements
- Environmentally friendly - supports carbon neutrality goals
- International certifications ensure smooth overseas compliance
Technical Data For 35KV Three-Phase Oil Immersed Transformer (630KVA~31500KVA)
| Capacity (KVA) | HV (KV) | HV Tapping | LV (KV) | Vector Group | No-load Loss (W) | On-load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| 630 |
35 |
±5% |
3.15 |
Yd11 |
830 | 7870 | 1.1 | 6.5 |
| 800 | 980 | 9410 | 1.0 | |||||
| 1000 | 1150 | 11540 | 1.0 | |||||
| 1250 | 1410 | 13940 | 0.9 | |||||
| 1600 | 1700 | 16670 | 0.8 | |||||
| 2000 | 2180 | 18380 | 0.7 | |||||
| 2500 | 2560 | 19670 | 0.6 |
Our Manufacturing Process
Step 1: Consultation & Design
We respond to inquiries within 1 hour and recommend suitable transformers according to your needs. We provide reasonable quotations and payment terms. Our professional drawing team confirms all technical details within 7 days after payment, including technical data, weight and parts list.
Step 2: Production & Quality Control
After finalizing production drawings, we prepare stock and begin manufacturing. All raw materials are strictly screened. We provide dual quality assurance with QC reports and test reports before shipment. Special accessory requirements can be accommodated.
Step 3: Installation & Support
Our professional team provides installation guidance and on-site support when needed. We offer more than 2 years of warranty service to ensure complete satisfaction.
Why Choose Us?
- Professional 30+ senior engineers offer 24 hours online service with response within 30 minutes
- 100,000 m² factory with 250 workers and 30+ engineers
- 4 production lines with 10,000+ sets annual production capacity
- 100% OQC testing with 25 detection contents
- 15 years power transformer designing and production experience
- Products comply with GB 20052-2024/ANSI/IEEE/DOE2016/CSA/IEC60076 standards
- Cross-industry power transformer solutions
- Global on-site technical support
