Low Loss Cast Resin Type Transformer 2000KVA Aluminum Winding Dry Power Transformer
| Attribute | Value |
|---|---|
| Type | Power transformer, distribution transformer, Dry Type Transformer |
| Frequency | 50Hz, 60Hz |
| Winding Material | Aluminum |
| Phase | Three |
| Coil Structure | Layered Winding |
| Coil Number | Triple-winding coil |
| Input Voltage | 10kV |
| Output Voltage | 400V |
| Cooling Method | Fan System |
| Material | Aluminum Winding |
| Transformer type | Dry Isolation |
| Vector Group | Dyn11/Yyn0 |
| Rated Voltage | 6-10kV |
| Insulation Class | Class F or H |
| Temperature Rise | Up to 150°C |
| Cool Method | AN/AF |

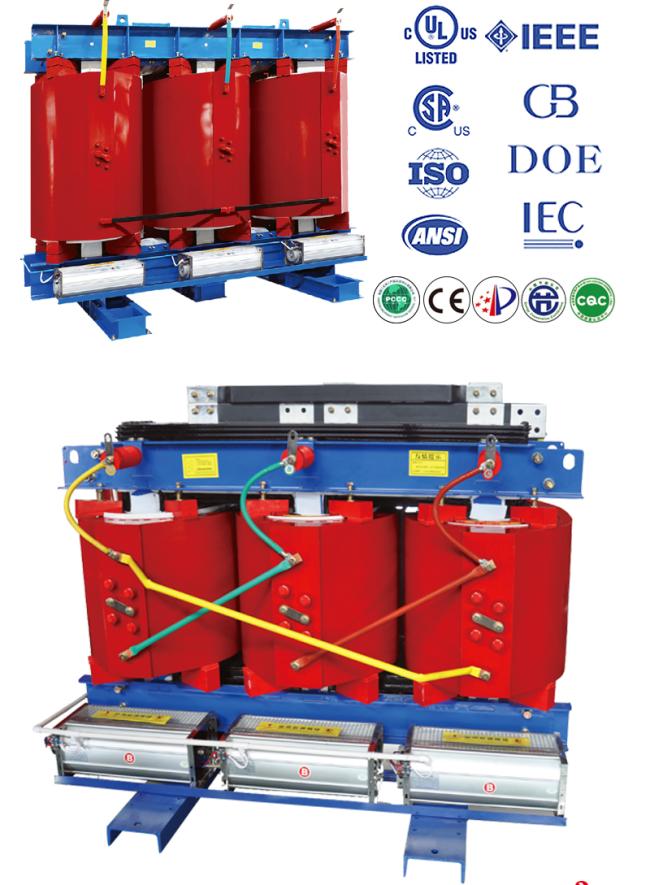

The SCB11 Series 2000kVA epoxy resin cast dry-type transformer is engineered with premium materials and advanced manufacturing techniques. It offers high efficiency, low loss, low noise, and superior fire resistance. Ideal for power distribution systems in commercial buildings, industrial plants, hospitals, and data centers.
- High-permeability cold-rolled silicon steel core minimizes no-load loss
- Fully cast epoxy resin insulation offers excellent dielectric strength and moisture resistance
- Optional forced-air cooling system increases load capacity
- Oil-free and maintenance-free design, eco-friendly
- High short-circuit withstand capacity, fire safety, and low operational noise
- Reduced long-term energy costs
- Enhanced safety and stability of the power system
- Avoids oil leakage and contamination associated with oil-filled transformers
- Space-saving, suitable for indoor use
- Zero maintenance minimizes labor costs
- Complies with national energy efficiency standards
- Service life over 20 years
- High reliability for mission-critical applications
- Easy to transport and install, no special containment needed
- Low operating cost and energy expenditure
HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.
Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.
We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.
Accept OEM, business payment are negotiated.
