100W Led Parking Lot Light With Dusk Dawn Photocell Quick Installation Commercial CE RoHs
Price:
36.8USD/pcs
MOQ:
1PCS
Delivery Time:
5-15 work days
Brand:
OEM/ODM/X-Power
Product Description
100W LED Parking Lot Light with Dusk Dawn Photocell
Product Attributes
| IP Rating | IP65 |
|---|---|
| Certification | CE, RoHS, EMC, LVD, SAA |
| CRI (Ra>) | 80 |
| Item Type | Street Lights |
| Working Lifetime | 50,000 hours |
| Input Voltage | AC85-265V |
| Warranty | 5 years |
| Luminous Efficiency | 160 lm/W |
Technical Specifications
| Item No | XP-ST-HF50W | XP-ST-HF100W | XP-ST-HF150W | XP-ST-HF200W |
|---|---|---|---|---|
| Power | 50W | 100W | 150W | 200W |
| Product Size (mm) | L471×W175×H55.3 | L556×W221×H58.1 | L645×W241×H66 | L745×W276×H69 |
| PF | >0.97 | |||
| Driver Efficiency | >95% | |||
| Efficacy | 190-200LM/W | |||
| Beam Angle | T2 | |||
| Surge Protection | 6KV | |||
| Operating Temperature | -40° to +50℃ | |||
| Color Temperature | 2700K - 7000K | |||
| IK/IP Rating | IK08/IP65 | |||
| Material | AL+PC | |||
| Function | Sensor/Dimming/Emergency | |||
| Control Protocol(s) | 0-10V/PMW/Rx/Dali2.0 | |||
| Installation | Lamp-post | |||
| Certification | CE/ROHS | |||
Product Features
-
Durable Construction & Easy Installation: Made of aluminum alloy for strength and durability with excellent heat dissipation. Suitable for installation at heights of 5-15m.
-
High-Quality Light Source: Uses domestic brand SMD2835/3030/5050 LEDs with high brightness, minimal light decay, and extended service life.
-
Reliable Power Supply: High-stability isolated constant current power supply with over-temperature protection, wide voltage range (AC85-265V), high power factor, and excellent heat dissipation.
-
Advanced Thermal Management: High-purity aluminum radiator with special design increases radiating area and enhances heat exchange efficiency, ensuring product stability and longevity.
-

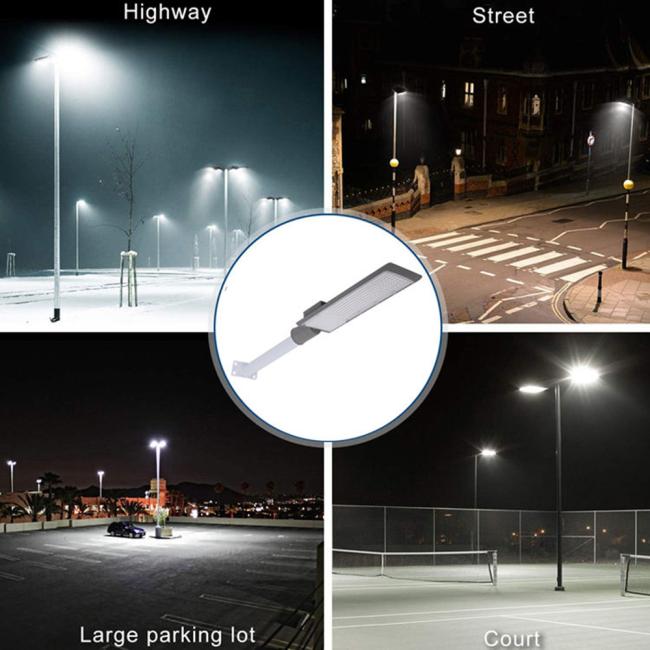

Versatile Applications: Ideal for main roads, highways, flyovers, city streets, overpasses, sidewalks, squares, schools, residential districts, industrial areas, parks, and more.
Why Choose Our LED Parking Lot Lights?
Rich Project Experience: Successfully delivered projects include Bangladesh Stadium (1200W DMX Control), Bangladesh Tennis Court (200W LED high bay), Malaysia 400W LED flood light, Netherlands Stadium lighting, Italy LED street light, and Spain Yard projects.
Innovative R&D: Capability to develop new molds annually and collaborate with customers on custom designs while maintaining confidentiality.
Technical Expertise: Engineering team provides DIALux simulations for lighting calculations and effects (IES files available upon request).
Global Support: On-site technical support available for professional projects worldwide.
Flexible Payment: O/A payment options available after establishing trust and cooperation.
