ASME SA213 TP316 Austenitic Alloy-Steel H Type Boiler Fin Tube In Heat Recovery Systems
Price:
1 - 10000 USD
MOQ:
1 PC
Delivery Time:
5 - 90 Days
Brand:
YUHONG
Product Description

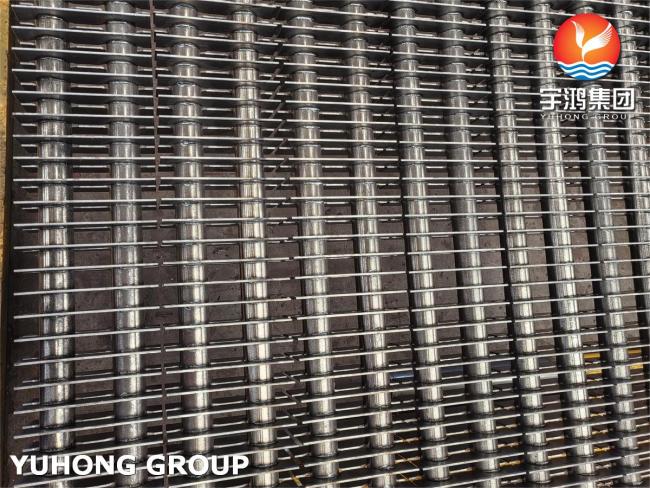

ASME SA213 TP316 Austenitic Alloy-Steel H Type Boiler Fin Tube In Heat Recovery Systems
Product Overview
The ASME SA213 TP316 H Type Boiler Fin Tube Economizer is an essential component in industrial systems designed to recover waste heat energy. These tubes are engineered for high efficiency and durability in economizers and other heat recovery systems.
Chemical Composition
| Grade | Cr | Ni | Mo | C | Mn | Si | P | S |
|---|---|---|---|---|---|---|---|---|
| TP316 | 16.0-18.0% | 10.0-14.0% | 2.0-3.0% | 0.08% max | 2.0% max | 1.0% max | 0.045% max | 0.030% max |
Mechanical Properties
| Grade | Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|---|
| TP316 | ≥ 205 MPa (30 ksi) | ≥ 515 MPa (75 ksi) | ≥ 35% in 50 mm (2 inches) | ≤ 90 HRB |
Key Features
- Material: Constructed from ASME SA213 TP316 stainless steel, known for excellent corrosion resistance and high-temperature strength
- Seamless Construction: Provides uniform strength, reducing the risk of leaks and enhancing reliability
- H Type Fin Design: Increases surface area significantly, optimizing heat transfer efficiency
- Durability: Offers long service life with minimal maintenance due to robust material properties
Applications
- Economizers: Recover residual heat from exhaust gases, preheating the feedwater and improving overall thermal efficiency
- Heat Exchangers: Enhance energy recovery in power generation and industrial processes
- Industrial Boilers: Increase efficiency and reduce fuel consumption in various industrial applications
