ASTM A213 TP316L Austenitic Alloy-Steel Longitudinal Finned Tube For Oil Coolers
Price:
Negotiable
MOQ:
1 pc
Delivery Time:
7-45DAYS
Brand:
Yuhong
Product Description
ASTM A213 TP316L Austenitic Alloy-Steel Longitudinal Finned Tube For Oil Coolers
Product Overview

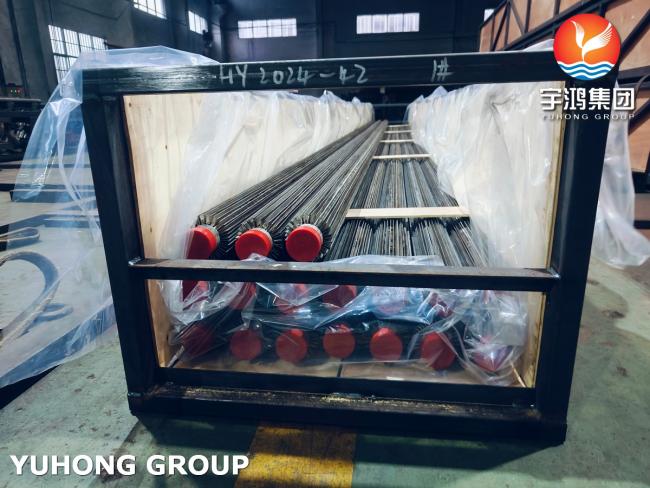

TP316L ASTM A213 Longitudinal Finned Pipe with SS316L Fins designed specifically for oil cooler applications, offering superior heat transfer efficiency and corrosion resistance in demanding environments.
Key Features
- Base Tube Material: ASTM A213 TP316L Stainless Steel for excellent corrosion resistance in harsh environments
- Fin Material: SS316L Stainless Steel with exceptional resistance to pitting and stress corrosion cracking
- Fin Type: Longitudinal fins designed for efficient heat transfer by increasing surface area
- Application: Engineered for high-performance cooling in oil cooler systems
Technical Specifications
| Property | Base Tube (ASTM A213 TP316L) | Fin Material (SS316L) |
|---|---|---|
| Outer Diameter (OD) | 15.88 mm - 50.8 mm | Customizable |
| Wall Thickness | 1.5 mm - 4.0 mm | - |
| Fin Thickness | - | 1.5 mm - 3.5 mm |
| Fin Height | - | 10 mm - 40 mm |
| Fin Attachment | Welded or Mechanically Bonded | |
Material Composition
| Element | ASTM A213 TP316L (Base Tube) | SS316L (Fin Material) |
|---|---|---|
| Carbon (C) | ≤ 0.03% | ≤ 0.03% |
| Manganese (Mn) | 2.00% (max) | 2.00% (max) |
| Phosphorus (P) | ≤ 0.045% | ≤ 0.045% |
| Sulfur (S) | ≤ 0.030% | ≤ 0.030% |
| Chromium (Cr) | 16.00 - 18.00% | 16.00 - 18.00% |
| Nickel (Ni) | 10.00 - 14.00% | 10.00 - 14.00% |
| Molybdenum (Mo) | 2.00 - 3.00% | 2.00 - 3.00% |
Performance Advantages
- Corrosion Resistance: Exceptional performance in aggressive environments including oils, chemicals, and saline conditions
- Heat Transfer Efficiency: Longitudinal fins maximize surface area for superior heat exchange
- High-Temperature Performance: Maintains mechanical properties at elevated temperatures
- Structural Integrity: Welded or mechanically bonded fins ensure durability under pressure and thermal stress
Typical Applications
- Oil cooling systems in automotive, industrial, and marine environments
- Temperature regulation in hydraulic machinery and circuits
- Lubricant cooling in power plant machinery and compressors
- Oil cooling for chemical processing equipment
