ASTM A213 TP316L SS316L Welding Longitudinal Finned Pipe Tube For Radiator Customized
Price:
Negotiable
MOQ:
2 PCS
Delivery Time:
35-60 Days (Depend on Order's Quantity and Complexity)
Brand:
YuHong
Product Description
ASTM A213 TP316L SS316L Welding Longitudinal Finned Pipe Tube For Radiator Customized
Product Description

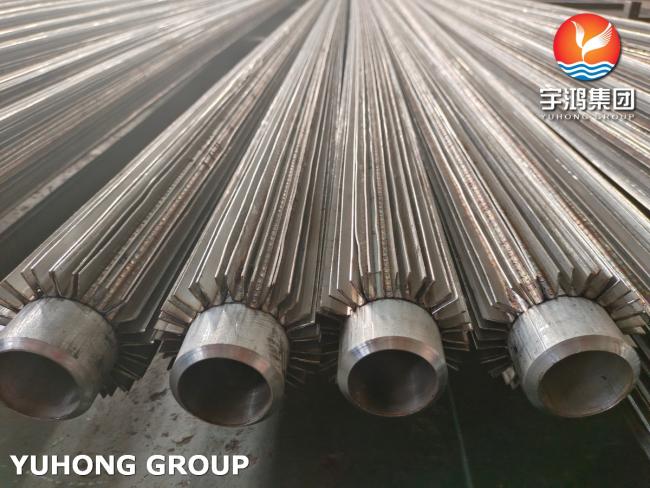

Longitudinal Welding Finned Tubes are specialized heat transfer components designed to maximize efficiency by increasing surface area. These tubes feature fins welded longitudinally onto the outer surface of a base tube, creating enhanced thermal exchange capabilities ideal for critical heat transfer applications.
Key Features
Construction
- Base Tube: ASTM A213 TP316L stainless steel or other alloys
- Fins: Metal strips welded longitudinally using high-frequency techniques
- Strong bond between fins and base tube ensures durability
Design
- Fins aligned parallel to tube axis
- Customizable fin height, thickness, and spacing
Advantages
- Increased surface area for superior heat transfer
- High mechanical strength and durability
- Excellent corrosion resistance with stainless steel construction
- Fully customizable to specific thermal requirements
Material Composition (ASTM A213 TP316)
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.08% max |
| Manganese (Mn) | 2.00% max |
| Phosphorus (P) | 0.045% max |
| Sulfur (S) | 0.030% max |
| Silicon (Si) | 1.00% max |
| Chromium (Cr) | 16.0% - 18.0% |
| Nickel (Ni) | 10.0% - 14.0% |
| Molybdenum (Mo) | 2.00% - 3.00% |
| Nitrogen (N) | 0.10% max |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 515 MPa (75,000 psi) min |
| Yield Strength | 205 MPa (30,000 psi) min |
| Elongation (in 2 inches) | 40% min |
| Hardness (Typical) | 80 HRB max |
Performance Characteristics
- Superior resistance to pitting, crevice corrosion, and stress corrosion cracking
- Maintains mechanical properties at elevated temperatures
- Excellent weldability with proper post-weld treatment
- Ideal for chloride-containing environments
Industrial Applications
- Shell-and-tube heat exchangers for petrochemical and power industries
- Boilers and superheaters in power plants
- Chemical processing equipment handling corrosive media
- Refinery distillation and processing units
- Food processing and pharmaceutical manufacturing
- Marine and offshore heat exchange systems
- HVAC and waste heat recovery applications
