ASTM B366 C22 Hastelloy 180° Return Bend Elbow SR For Heat Exchanger
Price:
1 - 10000 USD
MOQ:
1 PC
Delivery Time:
5 - 90 Days
Brand:
YUHONG
Product Description

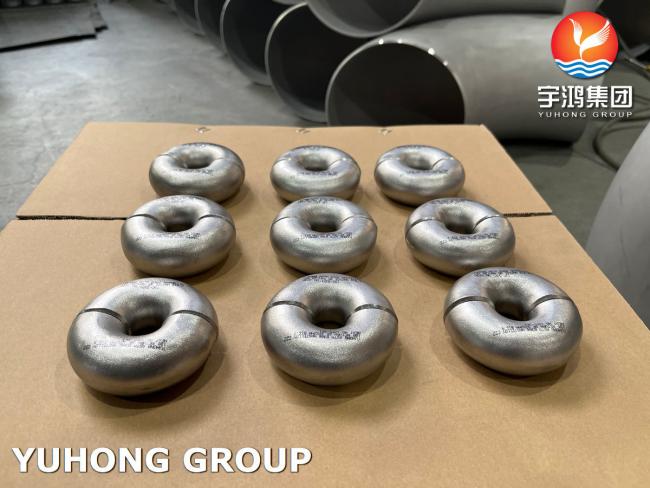

ASTM B366 C22 Hastelloy 180° Return Bend Elbow SR For Heat Exchanger
Product Overview
Alloy C22 is a nickel-chromium-molybdenum solid solution reinforced superalloy with a nominal chemical composition of 56% nickel, 22% chromium, and 13% molybdenum with additions of iron, tungsten, and cobalt. Commonly known as Hastelloy C22 (UNS NO6022), this material offers exceptional performance in demanding industrial applications.
Hastelloy C22 demonstrates superior resistance to pitting, crevice corrosion, and stress corrosion cracking. The high chromium content provides excellent oxidation resistance to oxidizing media, while the molybdenum and tungsten content ensures outstanding performance in reducing environments.
Chemical Composition
| Grade | C | Mn | Si | Cu | S | Fe | Ni | Cr | P | Mo |
|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.50 max | 0.02 | 2.00 - 6.00 | 50.015 min | 20.00 - 22.50 | 0.02 max | 12.50 - 14.50 |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
|---|---|---|---|---|---|
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | - | NiCr21Mo14W |
Mechanical & Physical Properties
| Density | 8.69 g/cm³ |
|---|---|
| Melting Point | 1399 °C (2550 °F) |
| Tensile Strength | Psi - 1,00,000, MPa - 690 |
| Yield Strength (0.2%Offset) | Psi - 45000, MPa - 310 |
| Elongation | 45 % |
Industrial Applications
Chemical processing equipment Pharmaceutical industry components Petrochemical processing systems Waste treatment facilities Power generation equipment Pulp and paper industry machinery Food processing systems
