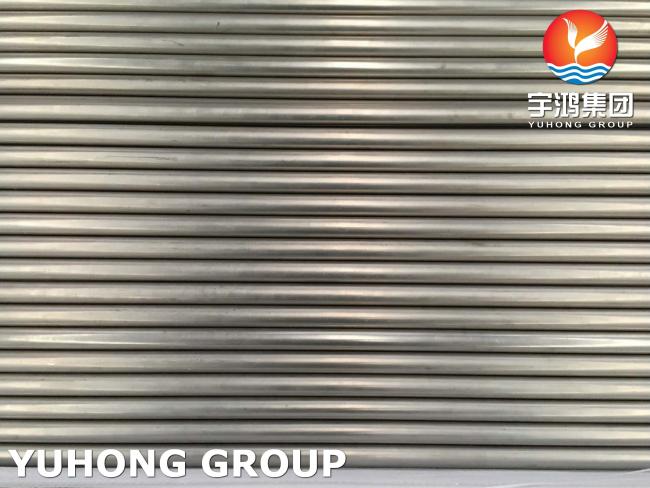

ASME SB338 R50400 Seamless and Welded Titanium and Titanium Alloy Tubes for High Pressure Applications

The Grade 7 (Gr. 7) designation refers to a specific titanium alloy with 0.2% palladium for enhanced corrosion resistance. This alloy is lighter than steel, which is particularly advantageous in aerospace, marine, and other weight-sensitive industries. It provides strong mechanical performance, allowing for the construction of pressure vessels and heat exchangers without excessive material thickness.

• Titanium Grade 7 (Ti-0.2Pd) is an alloy primarily composed of titanium with a small percentage of palladium (0.12-0.25%). This alloy offers enhanced corrosion resistance in aggressive environments.
• Titanium (Ti) provides excellent strength-to-weight ratio, outstanding corrosion resistance, and high-temperature performance.
• Palladium (Pd) improves resistance to general corrosion, particularly in acidic environments.

• Cold Working: Typically processed into tubes, sheets, and plates through extrusion, rolling, or drawing.
• Heat Treatment: Annealing or solution heat treatment can improve ductility and strength in specific applications.
• Welding: Weldable using TIG processes, with palladium enhancing weldability compared to other titanium grades.
• Surface Finish: Smooth surfaces preferred for heat exchanger applications to enhance efficiency and reduce fouling.

• Seawater heat exchangers for ships, offshore oil rigs, and desalination plants
• Cooling systems for naval vessels and submarines
• Offshore oil and gas platform heat exchangers
• Petrochemical refining cooling systems
• Reverse osmosis (RO) desalination unit cooling systems
