ASME SA213 TP347H Stainless Steel Boiler Tube Food Preparation Equipment
Price:
1--10000 USD
MOQ:
1PC
Delivery Time:
5---75 days
Brand:
YUHONG
Product Description

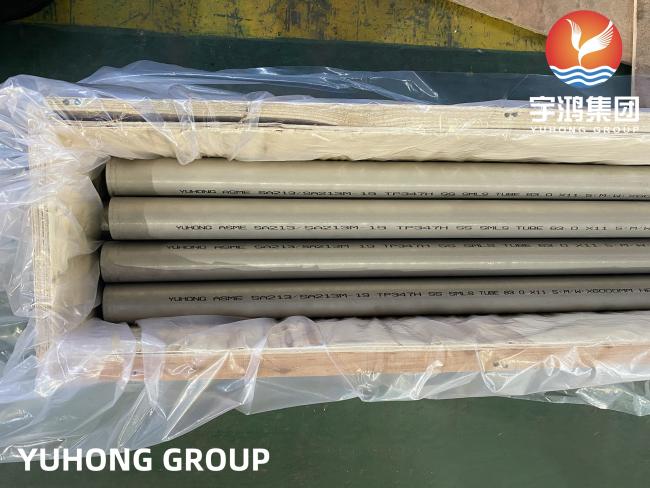

ASME SA213 TP347H Stainless Steel Boiler Tube Food Preparation Equipment
Product Description
Yuhong Group's ASME SA213 TP347H grade stainless steel boiler tubes are specifically designed for power plant applications. These tubes undergo stabilization heat treatment with furnace temperature controlled at approximately 950℃ for 2-4 hours during the final heat treatment process.
Technical Specifications
- Outer Diameter: 31.75mm to 165.2mm
- Wall Thickness: 2mm to 20mm
- Length: Maximum 34m per piece
- All tubes meet grain size requirements of ASTM E112 (Grain Size <7)
- 100% Eddy Current Test (ASTM E426)
- 100% Hydrostatic Test (ASTM A1016 - 7Mpa/5s)
Quality Tests
- Chemical Analysis
- Mechanical Properties Testing
- Tensile Requirement
- Hardness Requirement
- Flattening Test
- Flaring Test
- Hydrostatic Test or Nondestructive Electric Test
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Niobium | Other |
|---|---|---|---|---|---|---|---|---|---|---|
| TP347 | min: - max: 0.08 |
min: 2.0 max: - |
min: 1.0 max: - |
min: 0.045 max: - |
min: 0.03 max: - |
min: 17 max: 19 |
- | min: 9 max: 13 |
10*C ~1.10 | / |
| TP347H | min: 0.04 max: 0.1 |
min: 2.0 max: - |
min: 1.0 max: - |
min: 0.045 max: - |
min: 0.03 max: - |
min: 17 max: 19 |
- | min: 9 max: 13 |
8*C ~1.10 | / |
Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness |
|---|---|---|---|---|
| TP347 | 515 | 205 | 35 | Rockwell B (HRB) max: 90 Brinell (HBW) max: 192 |
| TP347H | 515 | 205 | 35 | Rockwell B (HRB) max: 90 Brinell (HBW) max: 192 |
TP347H has an additional requirement for a grain size of ASTM No 7 or coarser.
Applications
- Food preparation equipment
- Laboratory benches & equipment
- Coastal architectural panelling, railings & trim
- Power Plant Boiler
- Chemical containers, including for transport
- Heat Exchanger
- Oil and Gas
- Petrochemical
- Super Heater parts
- Furnace
