7.14mm x 1.02mm x 76.2mm carbide Wear-Resistant Waterjet Abrasive Nozzles for Fiting KMT & OMAX Cutting Heads
R100 R300 R500 Waterjet Mixing Tubes KMT OMAX Mixing Tube
Product Specifications
| Attribute | Specification | Details/Benefits |
|---|---|---|
| Name | R100 R300 R500 Waterjet Mixing Tubes KMT OMAX Mixing Tube | |
| Operating Pressure | Up to 94,000 PSI (650 MPa) | Stable performance for ultra-high pressure waterjet cutting systems. |
| Bore Surface Finish (Ra) | ≤ 0.15 μm | Precision-lapped to reduce turbulence and improve cutting efficiency. |
| Flexural Strength | ≥ 2,300 N/mm² | Ensures no deformation or fracture under high-pressure water impact. |
| Hardness | HRA 89.5° - 91.5° | Extremely high Rockwell hardness for superior wear resistance. |
| Density | 14.5 g/cm³ - 14.9 g/cm³ | High density ensures material compactness and durability. |
| Porosity Standard |
ISO 4505 Standard A02 B00 C00 |
No macro pores; uniform structure prevents internal corrosion. |
| Geometric Accuracy | Roundness ≤ 0.002 mm | Strict concentricity control ensures precise waterjet focusing. |
| Corrosion Resistance | Compatible with pH 6-8 Water | Excellent chemical inertness; resistant to mild acids/alkalis in cutting media. |
| Failure Mode | Gradual Wear | Long service life without brittle fracture, reducing risk of equipment damage. |
| Wear Resistance | High | Excellent resistance to abrasive flow, extending tube lifespan. |
| Model NO. | 7.14*1.02*101.6 7.14*1.02*76.2 6.35*1.02*76.2 So on |
|---|---|
| Grade | R100, R300, R500 |
| Certification | CE, RoHS, ISO 9001:2000, ISO9001:2008 |
| Material | Tungsten |
| Condition | New |
| Transport Package | in Plastic Box |
| Application | Paper, Metal, Rubber, Ceramic, Glass, Stone, Plastic, Leather, Fabric, Waterjet Cutting Machine |
| Production Capacity | 500000 pcs |
| Style | Waterjet Machine |
| Trademark | ZWEIMENTOOL |
| Replacement | FLOW OLMAX KMT |
| Power Source | Electric |
| Specification | Standard |
| Origin | Zigong City China |

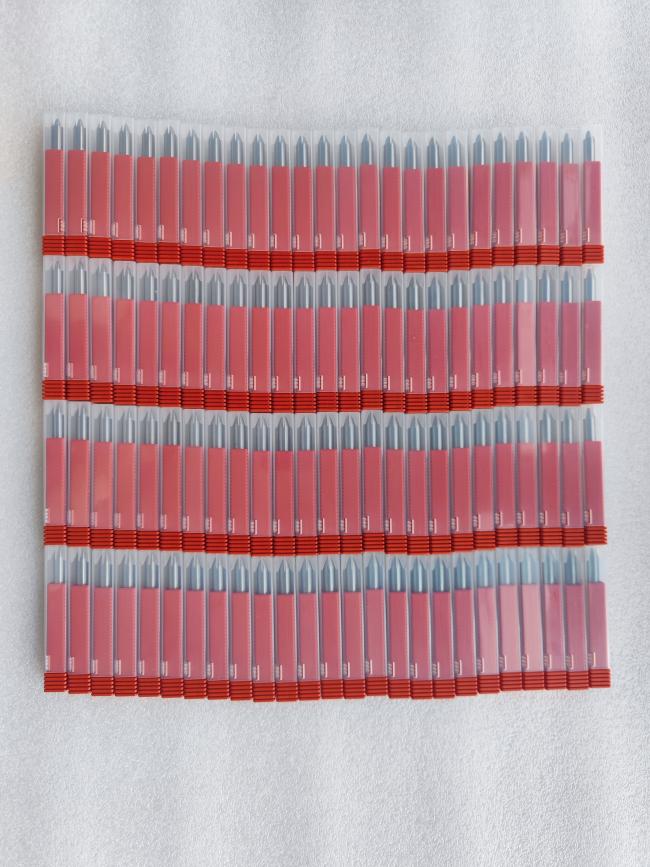

Package
R100 R300 R500 Waterjet Mixing Tubes KMT OMAX Mixing Tube Advantage:
Precision Engineered for Excellence:
Achieve flawless, dimensionally accurate cuts in metals, composites, and stone with zero heat-affected zones or micro-cracking.
Unmatched Operational Longevity:
Precision-machined from premium tungsten carbide, delivering up to five times the service life compared to conventional mixing tubes.
Versatile Across All Applications:
Seamlessly processes diverse materials—from hardened ceramics to soft plastics—in both abrasive and pure waterjet modes.
Optimized for Energy Savings:
Advanced internal geometry maximizes fluid dynamics for superior cutting force with reduced pump load and power consumption.
Dedicated Technical Partnership:
Round-the-clock engineering support plus fully customizable orifice and tube configurations tailored to your specific needs.
Spare part availability:
1.Your single-source partner for comprehensive waterjet accessories, delivering quality components for every aspect of your cutting system.
