Methylene Blue Absorption Tester By Controlled Micro Computer For Accurate Results
Price:
Negotiable
MOQ:
1
Delivery Time:
15 days
Brand:
MORITA
Product Description
Methylene Blue Absorption Tester By Controlled Micro-computer QR-SEL
This precision instrument determines methylene blue absorption levels and measures effective bentonite content in bentonite samples. Utilizing microcomputer-controlled ultrasonic dispersion and mechanical stirring, it ensures accurate, automated testing with customizable timing parameters.
Key Specifications
Glass Burette: 25ml+25ml, ±1% accuracy
Blender Speed: 1300r/min
Power: 6W
Power Source: AC220V/50Hz
Timer Range: 1-99min
Ultrasonic Cleaner: 40±2KHz frequency, 50W power
Cleaning Tank Size: 150×140×95mm
Instrument Dimensions: 177×167×200mm
Instrument Features
- Microcomputer-controlled ultrasonic dispersion and test solution mixing
- Automated sample processing and mixing time control
- Rapid sample dispersion at normal temperatures
- Prevents casting surface defects through quality detection
Applications
Widely used in foundries, machinery manufacturing, casting operations, quality inspection laboratories, scientific research institutions, and university laboratories.
Testing Principle
Bentonite exhibits strong methylene blue adsorption capacity, which varies by type and origin. Sample dispersion is critical for accurate measurement. Ultrasonic dispersion creates cavitation effects that thoroughly separate particles, while mechanical stirring ensures complete contact with methylene blue during titration.

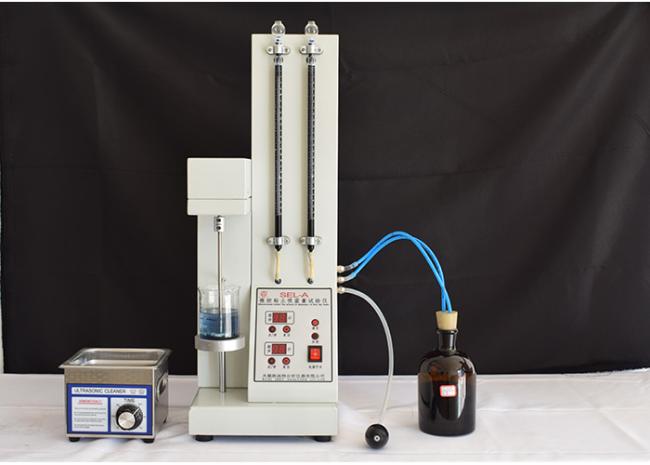

Instrument Structure
The analyzer comprises three main components:
- Sample Dispersion Device: Ultrasonic cleaner with timer for thorough particle separation
- Titration Device: Dual automatic burettes with anti-corrosion solenoid valves for precise measurement
- Blender: Microcomputer-controlled AC motor with turbine blade for complete solution mixing
