Intelligent Touch Screen Moulding Sand strength Tester with Vertical Design for Precise Measurements QR-XQY-3
Price:
Negotiable
MOQ:
1
Delivery Time:
15 days
Brand:
MORITA
Product Description

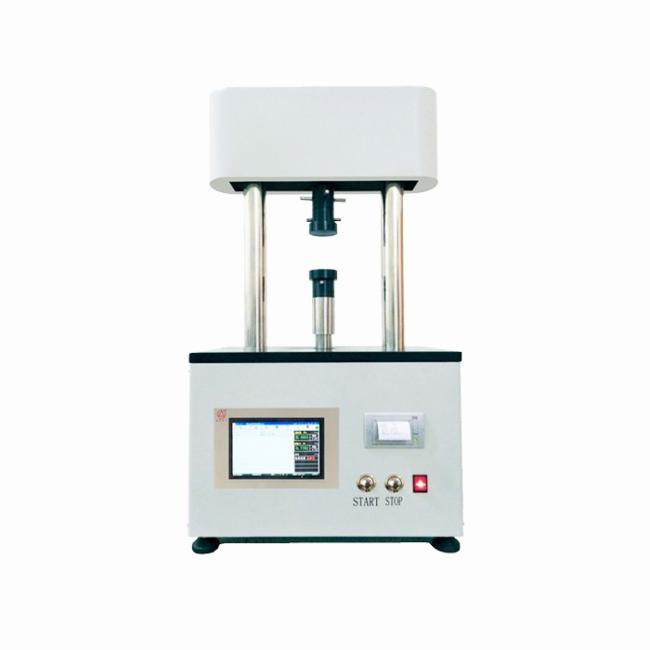

Intelligent Sand Strength Tester Touch Screen Vertical QR-XQY-3
The Intelligent Sand Strength Tester (Vertical QR-XQY-3) with Touch Screen is designed for precise measurement of compressive, shear, bending, and tensile strength of type (core) sand at room temperature or in hot state. This advanced instrument also evaluates material strength for ceramics, cement, and similar substances.
Key Features
- CNC Mechanical Loading: Vertical structure ensures stable high-voltage strength testing with special stepper motor and worm gear reduction mechanism for uniform sample loading.
- High Precision: Utilizes S-type force sensors and 32-bit A/D data acquisition for accurate peak data capture during sample failure.
- Data Protection: Dynamic real-time data display with complete data storage capability, even during power outages.
- User-Friendly Interface: Chinese operating system with color LCD touch screen, clear prompts, and simple operation.
- Security: Password protection for system functions and parameter adjustments.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Test Force | 20000N |
| Compressive Strength Range | 0-10Mpa (Φ50×50) / 0-28Mpa (Φ30×50) |
| Tensile Strength Range | 0-40Mpa (22.36×22.36) / 0-80Mpa (22.36×11.18) |
| Shear Strength Range | 0-8Mpa (Φ50×50) / 0-13Mpa (Φ30×50) |
| Bending Strength Range | 0-400Mpa (22.36×22.36×150) / 0-640Mpa (22.36×11.18×60) |
| Indication Accuracy | ±1.5% FS |
| Power Requirements | AC 220V ±10%, 50Hz |
| Operating Environment | Temperature-controlled, relative humidity ≤90% |
Main Components
| Component | Model | Unit | Quantity | Brand |
|---|---|---|---|---|
| S-Type Tension/Compression Sensor | TSC-F2T | piece | 1 | Toledo |
| Stepping Motor | 110BYG350C | piece | 1 | Jinyuantai |
| Reducer | KSWL-F-2T | piece | 1 | Hangzhou Kuangsheng Machinery |
| Switch Power Supply | D-50F5 | piece | 1 | Mingwei MW |
| Stepping Motor Driver | 3M2254 | piece | 1 | Jinyuantai |
| Electronic Integrated Chip | MAX,STC | set | 1 | Import |
| Micro Thermal Printer | WH-E311R90 | piece | 1 | Weihuang |
| Thermal Printing Paper | R55 | roll | 2 | Consumables |
