Maximum Destructive Force Value Retention and Integrated Data Storage of Moulding Sand strength Tester QR-XQY-II-1
Price:
Negotiable
MOQ:
1
Delivery Time:
15 days
Brand:
MORITA
Product Description

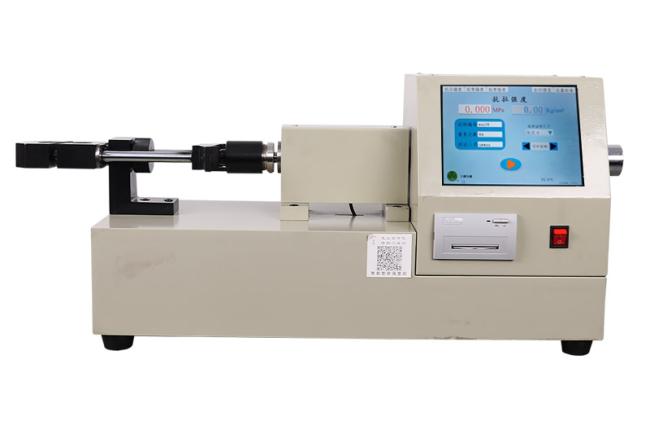

Horizontal Intelligent Sand Strength Machine QR-XQY-II-1
The QR-XQY-II-1 is a precision instrument designed for comprehensive strength testing of molding and core sands under both dry and wet conditions at room temperature.
Key Features
- Measures compressive, shear, bending, and tensile strength of sand specimens
- Automated mechanical loading system with sensor data collection
- Digital display for immediate test result visualization
- Maximum destructive force value retention capability
- Integrated data storage, output, and printing functions
- Computer interface with included software for data processing
- 485-232 conversion interface for system integration
- Generates .txt format data files for easy analysis
Technical Specifications
Maximum Thrust: 3000N (maximum 10000N)
Measurement Range:
Compressive strength: 0-1.5Mpa (maximum 5Mpa)
Tensile strength: 0-6MPa
Shear strength: 0-1.2MPa
Bending strength: 0-60MPa
Measurement Accuracy: ± 1.5%
Applications
Ideal for foundry quality control, sand testing laboratories, and research facilities requiring precise measurement of sand mixture properties for casting processes.
