Accurate Measurement of High-Strength Sand with the XQY-2 Moulding Sand Strength Tester

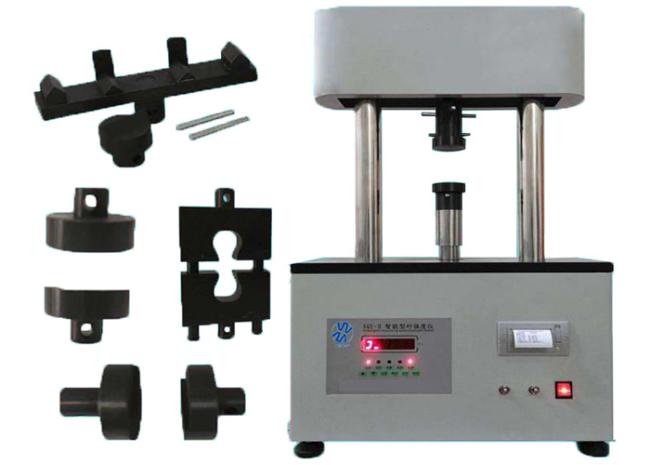

The XQY-2 High Strength Intelligent Moulding Sand Strength Tester is a precision testing instrument designed for measuring the compressive, tensile, shear, and bending strength of high-strength moulding sand and resin sand. It is widely used in foundries, material laboratories, and research institutions to ensure casting quality, improve process control, and meet the strictest production standards.
Product Introduction
With the growing demand for high-strength moulding sand and advanced resin sand in the casting industry, precise measurement of mechanical properties becomes crucial. The XQY-2 tester uses a CNC-controlled mechanical loading system with vertical testing design to ensure uniform loading, high accuracy, and reliable results. It eliminates errors caused by static friction or weight discrepancies, providing consistent and repeatable measurements.
Key Advantages
-
High-Strength Testing Capability – Supports compressive, tensile, bending, and shear testing for standard samples under high loads.
-
CNC Mechanical Loading – Automatic, uniform, and microcomputer-controlled loading ensures precision.
-
Vertical Loading System – Reduces measurement errors and improves accuracy for green and resin sand tests.
-
High-Precision Sensors – Utilizes advanced S-shaped force sensors and a high-speed A/D data acquisition system.
-
Data Storage & Printing – Retains test results during power loss and provides optional printing for reporting and analysis.
Applications
-
Quality control in foundry production and casting processes
-
Testing high-strength moulding and resin sand in industrial laboratories
-
Research and development in materials science institutions
-
Verification of sand properties to prevent casting defects
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Testing Force | 20,000 N |
| Compression Strength | 0–10 MPa (Φ50×50), 0–28 MPa (Φ30×50) |
| Tensile Strength | 0–40 MPa (waist 22.36×22.36), 0–80 MPa (waist 22.36×11.18) |
| Shear Strength | 0–8 MPa (Φ50×50), 0–13 MPa (Φ30×50) |
| Bending Strength | 0–400 MPa (22.36×22.36×150), 0–640 MPa (22.36×11.18×60) |
| Display Accuracy | ±1.5% FS |
| Rated Power | 1000 W |
| Power Source | AC 220 V / 50 Hz |
| Operating Environment | Indoor, relative humidity ≤ 90% |
Why Choose the XQY-2 High Strength Tester?
The XQY-2 delivers exceptional precision, high load capacity, and intelligent control features, making it ideal for testing demanding materials like high-strength moulding and resin sand. Its vertical CNC loading system ensures uniform force distribution, while advanced data management and printing functions support efficient quality assurance and production optimization.
