1450rpm Transmission Speed Reduction Helical Gear Reducer Gearmotor Parallel Shaft

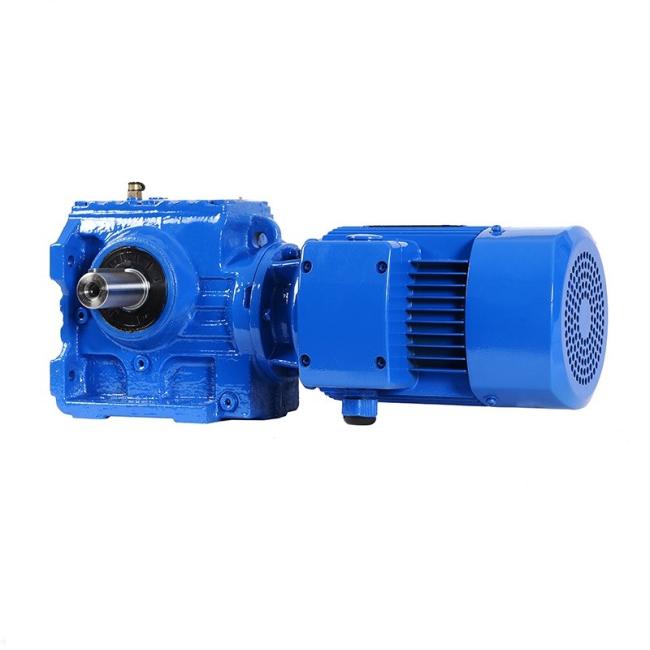

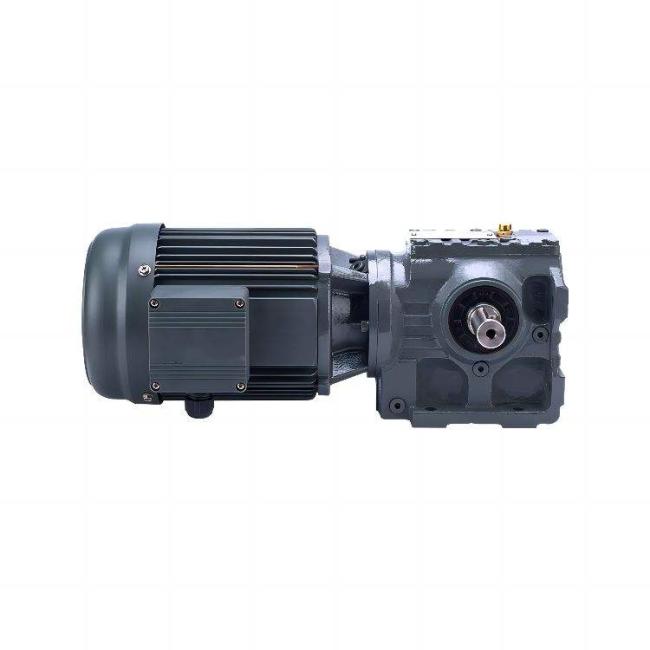

The S series helical gear reducer is a right-angle speed reduction gearing system composed of helical gears, worms, and gears, optimized according to international standards. This modular design features a high-stainless cast iron case, combining helical gear and worm gear technologies for superior efficiency and strength compared to standard aluminum alloy worm gearboxes.
- High precision and efficiency with fine classification in transmission ratio
- Wide range of speed options and large transmission torque capacity
- Reliable performance with low noise operation
- Flexible installation options for various industrial applications
- Convenient maintenance and long service life
- Ideal for agriculture and other industrial sectors
| SIZE | Shaft Dia. (mm) | Center Height | Output Flange Dia. (mm) | Power (kw) | Ratio | Permissible Torque(N.m) | Weight (kgs) |
|---|---|---|---|---|---|---|---|
| Solid/Hollow 37 | φ20k6/φ20h7 | 82 | φ120/160 | 0.18-0.75 | 10.27-165.71 | 90 | 7 |
| 47 | φ25k6/φ25h7 | 100 | φ160 | 0.18-1.50 | 11.46-244.74 | 170 | 10 |
| 57 | φ30k6/φ30h7/35h7 | 180 | φ200 | 0.18-3.0 | 10.78-196.21 | 300 | 14 |
| 67 | φ35k6/φ40h7/45h7 | 140 | φ200 | 0.25-5.50 | 11.55-227.20 | 520 | 26 |
| 77 | φ45k6/φ50h7/60h7 | 180 | φ250 | 0.55-7.50 | 9.96-241.09 | 1270 | 50 |
| 87 | φ60m6/φ60h7/70h7 | 225 | φ350 | 0.75-15.0 | 11.83-223.26 | 2280 | 100 |
| 97 | φ70m6/φ70h7/90h7 | 280 | φ450 | 1.50-22.0 | 12.5-230.48 | 4000 | 170 |
The best way is to provide the motor drawing with parameters. Our engineers will recommend the most suitable gearbox model. Alternatively, provide:
- Type, model and torque requirements
- Ratio or output speed needed
- Working conditions and connection method
- Quality requirements and installed machine name
- Input mode and input speed
- Motor brand model or flange and motor shaft size
Yes, we are a professional manufacturer of industrial gear reducers with our own production facilities and quality control systems.
