High Strength Towing Nylon Cable Drag Chain Flexible Cable Tray Chain For Wood Lathe
Price:
10$-60$
MOQ:
1
Delivery Time:
5-8 work day
Brand:
BNEE
Product Description
Towing Nylon Cable Drag Chain For Wood Lathe Drag Chain 10x20
Product Specifications
| Attribute | Value |
|---|---|
| Material | Steel & Nylon |
| Inner Height | 07mm-80mm |
| Inner Width | 07mm-300mm |
| Outer Height | 10mm-119mm |
| Outer Width | 10mm-364mm |
| Bending Radius | 18mm-300mm |
Applications
Cable drag chains provide durable protection and flexible cable management for various industrial applications:
- Automotive Industry: Protects cables and hoses in robotic arms from repetitive motion wear
- Machine Tools: Safeguards control cables in CNC machines, milling machines, and laser cutters
- Medical Equipment: Ensures precise cable movement in imaging scanners and surgical tools
- Material Handling: Protects cables in conveyor systems and automated equipment
- Heavy Machinery: Shields cables from abrasion in construction and agricultural equipment
- Aerospace & Defense: Provides high-precision cable protection for sensitive equipment
Selection Guide
Consider these factors when choosing the right cable drag chain:
- Material: Steel for strength, plastic for corrosion resistance, nylon for flexibility
- Design: Open for ventilation or closed for maximum protection
- Load Capacity: Match to cable/hose weight and quantity
- Bend Radius: Select appropriate radius for movement requirements
- Length: Consider extension/retraction needs
- Environment: Account for temperature, chemicals, and humidity
- Noise Reduction: Choose materials that dampen sound if needed
- Customization: Available for unique configurations
Technical Specifications
| Type | Bending Radius (mm) | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) |
|---|---|---|---|---|---|
| ZQ3250 | 63-300 | 32 | 51 | 54 | 72 |
| ZQ3262 | 63-300 | 32 | 62 | 54 | 90 |
| ZQ3275 | 63-300 | 32 | 75 | 54 | 97 |
| ZQ3287 | 63-300 | 32 | 87 | 54 | 109 |
| ZQ32100 | 63-300 | 32 | 100 | 54 | 122 |
| ZQ32112 | 63-300 | 32 | 112 | 54 | 134 |
| ZQ32125 | 63-300 | 32 | 125 | 54 | 147 |
| ZQ32137 | 63-300 | 32 | 137 | 54 | 159 |
| ZQ32150 | 63-300 | 32 | 150 | 54 | 172 |
| ZQ32162 | 63-300 | 32 | 162 | 54 | 184 |
| ZQ32175 | 63-300 | 32 | 175 | 54 | 197 |
| ZQ32187 | 63-300 | 32 | 187 | 54 | 197 |
| ZQ32200 | 63-300 | 32 | 200 | 54 | 222 |
| ZQ32225 | 63-300 | 32 | 225 | 54 | 247 |
| ZQ32250 | 63-300 | 32 | 250 | 54 | 272 |

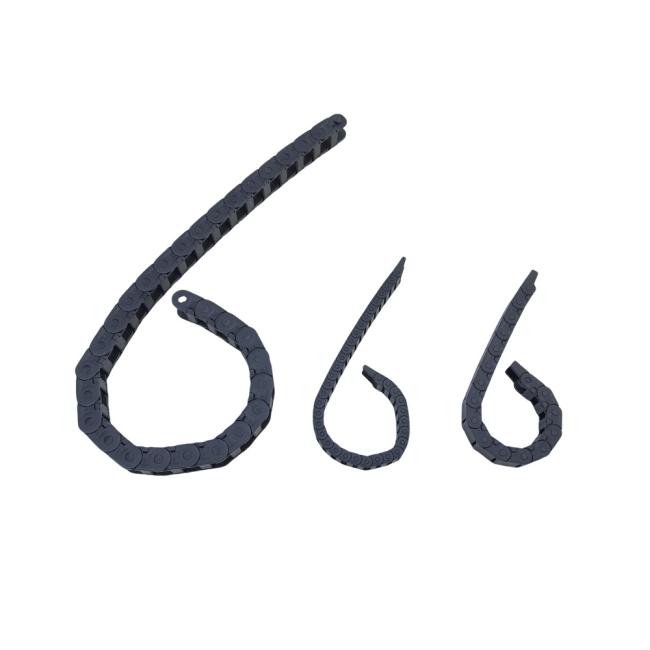

Product Images
Summary
Cable drag chains offer essential protection and management for cables across numerous industries. Proper selection based on material, design, load capacity, and environmental factors ensures optimal performance and longevity in your specific application.
