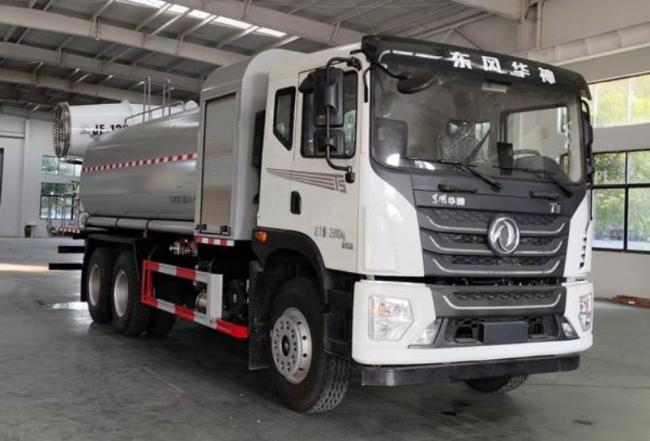

13100L ODM Water Spray Mist Cannon Truck Dust Suppression Vehicle

Price Negotiable

Price: 4680-6835usd

MOQ: 1

Delivery Time: 15-45 working days

Brand: Bioclean

Product Description

13100L ODM Diesel Water Spray Fog Cannon Dust Suppression Mist Cannon Truck

Total Mass: 25 tons

Loading Capacity: 12420kg, 12355kg, 11370kg, 11305kg, 10620kg, 10555kg

Effective Tank Volume: 13.1 cubic meters

Main Use & Key Devices

Used for dust suppression and haze reduction. Equipped with a tank and spray system. Total tank capacity is 13.85 cubic meters, with external dimensions (length × major axis × minor axis) of 5000×2400×1700mm.

Chassis & Dimensions

Wheelbase: 4350+1350mm (only this wheelbase is used).

Without electronic water cannon: Overall length 10450mm, with front overhang 0mm; front suspension/rear suspension options: 1250/3500mm, 1410/3340mm, 1500/3250mm.

With electronic water cannon: Overall length 11000mm, front overhang 550mm; front suspension/rear suspension options: 1250/3500mm, 1410/3340mm, 1500/3250mm.

Safety Protections

Side and rear guards: Q235B carbon steel, bolted.

Rear guard: cross-section 50×120mm, 500mm above ground.

ABS System

Options: 3631010-C2000 (Dongke Knorr Commercial Vehicle Brake System (Shiyan) Co., Ltd.); J ABS (Jiaozuo Boruike Control Technology Co., Ltd.).

Optional Configurations

Direct power supply ETC device, rear fog cannon device, cab.

Front electronic cannon styles, water outlet styles.

Application

Suitable for dust and haze control scenarios, with flexible configurations to meet diverse needs.

parameters

Item	ZBJ5250TDYCDP
Energy type	Diesel
Dimension(L x W x H)	10450,11000×2550,2500×3900,3850,3800(mm)
Chassis	EQ1256GL6DJ
Engine	YCS06300-61A
Curb Weight	12450,13500,14250(Kg)
Total Mass	25000(Kg)
Maximum Speed	88(km/h)
Water Tank Capacity	13.1m³
Fan Power	25kw
Pump Material	Stainless steel multi-stage centrifugal pump
Pump Power	8kw
