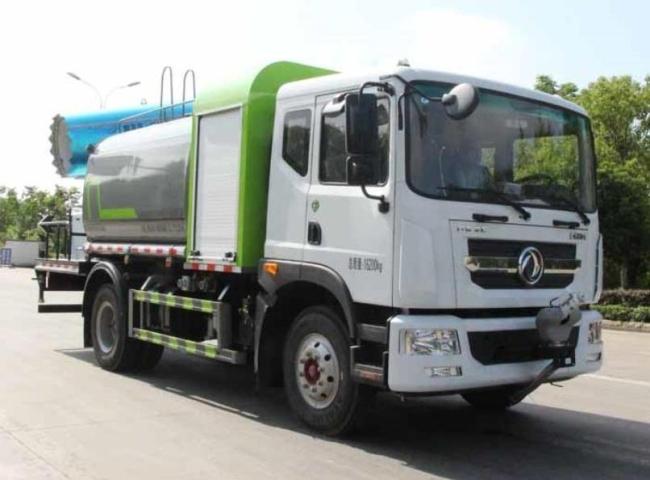

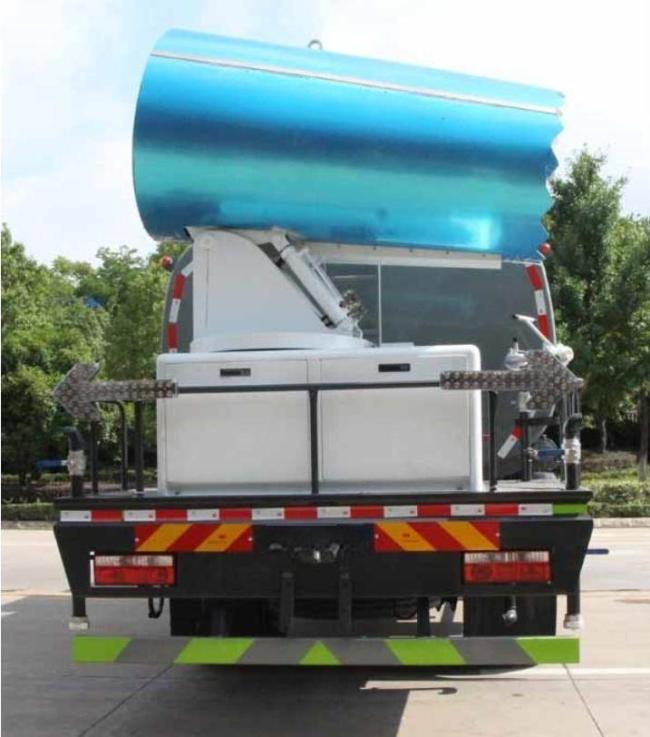

9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis
Price:
4580-5435USD
MOQ:
1
Delivery Time:
15-45 working days
Brand:
Bioclean
Product Description
ODM 9m³ Diesel Water Spray Fog Cannon Dust Suppression Mist Cannon Truck
Product Specifications
| Attribute | Value |
|---|---|
| Chassis | EQ1165LJ9CDE |
| Engine Rated Power | 162/220 |
| Curb Weight | 8470 (Kg) |
| Rated Loading | 8550 (Kg) |
| Total Mass | 16200 (Kg) |
| Max. Speed | 105 (km/h) |
| Water Tank Dimensions | 2800×2450×1720 |
| Water Tank Capacity | 8.77m³ |
| Fan Power | 20kW |
| Pump Material | Stainless steel vertical centrifugal pump |
| Fuel | Diesel |
| Drive Wheel | 4×2 |
| Condition | New |
| Specification | 8250×2550×3800 (mm) |
Product Description
This ODM 9m³ Diesel Water Spray Fog Cannon Truck is designed for effective dust and haze control in industrial environments. The system features a high-capacity water tank and powerful spray system for optimal dust suppression.
Key Features
- Total Mass: 16.2 tons with rated loading capacity of 8550kg
- Large water tank capacity: 8.77 cubic meters
- Dimensions: 2800×2450×1720mm (L×W×H)
- 3950mm wheelbase chassis for stability
- Durable stainless steel vertical centrifugal pump
- Powerful 20kW fan for effective mist dispersion
Safety Features
- Side and rear guards constructed from Q235 carbon steel with bolted connections
- Rear guard dimensions: 120×50mm, positioned 490mm above ground
- Optional ABS system available (J ABS or ABS/ASR-24V-4S/4M)
Configuration Options
- Speed limiter (89km/h)
- Cab options available with chassis
- Flexible fuel tank positioning
- Multiple spray system styles
- Optional front electronic cannon (adds 500mm to length)
Technical Parameters
Energy type: Diesel
Dimensions: 8250×2550×3800 (mm)
Chassis: EQ1165LJ9CDE
Engine: D45TCIF1
Curb Weight: 8550 (Kg)
Total Mass: 16200 (Kg)
Maximum Speed: 105 (km/h)
Water Tank Capacity: 8.77m³
Fan Power: 15kw
Pump Material: Stainless steel multi-stage centrifugal pump
Pump Power: 5kw
Product Images
