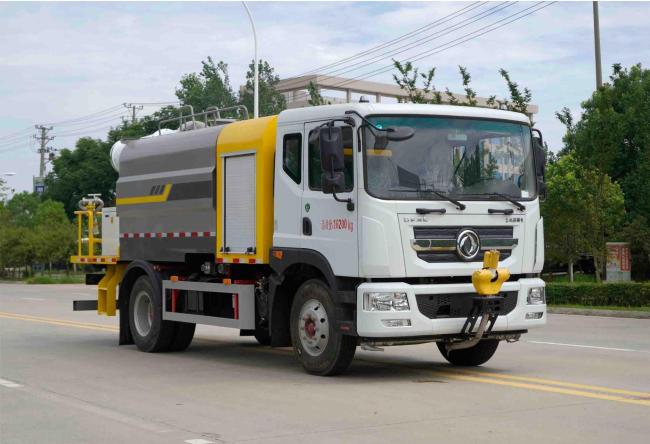

9.3m3 Diesel Engine Mist Cannon Truck For Dust And Haze Control

Price Negotiable

Price: 2995-7965 usd

MOQ: 1

Delivery Time: 15-45 working days

Brand: Bioclean

Product Description

9.3m³ ODM Diesel Water Spray Fog Cannon Dust Suppression Mist Cannon Truck

Total Mass: 16.2 tons

Load: 8430kg, 8365kg, 8970kg, 8905kg, 8670kg, 8605kg

Tank Volume: 9.29 cubic meters

Use & Parts

For dust and haze control. Key devices: dust tank and spray system. Tank total capacity 9.75 cubic meters, size (length × major axis × minor axis) 2800×2450×1720mm. Uses 3950mm wheelbase chassis only.

Safety

Side guards: Q235B, bolted.

Rear guards: Q235B, bolted. Size 150×50mm, 450mm above ground.

ABS System

Options: J ABS (Jiaozuo Boruike); ABS/ASR-24V-4S/4M (Xiangyang Dongfeng Longcheng).

Options

Speed limiter (89km/h); cab (with chassis).

Rear flush styles, air valves, duckbill ball valve positions, tool boxes, arrow lights.

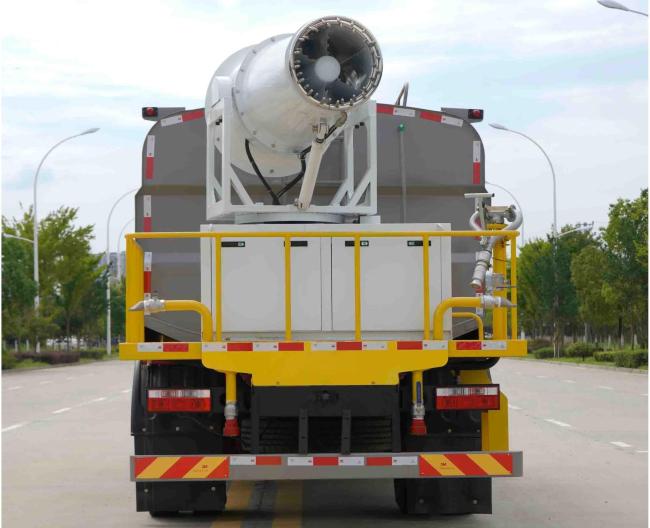

High cannon styles, front duckbill ball valve styles, with/without electronic water cannon, side sprays.

Rear arrow lights (only when working); front electronic water cannon adds 500mm front overhang.

Various overall lengths based on front overhang, front suspension, etc.

Uses

Suitable for dust and haze control. Flexible options to meet needs.

parameters

Item	ZBJ5162TDYE6
Energy type	Diesel
Dimension(L x W x H)	8250× 2550× 3800(mm)
Chassis	EQ1165LJ9CDE
Engine	B6.2NS6B230
Curb Weight	8970(Kg)
Total Mass	16200(Kg)
Maximum Speed	105(km/h)
Water Tank Capacity	6m³
Fan Power	15kw
Pump Material	Stainless steel multi-stage centrifugal pump
Pump Power	5kw
