18000KG 10300L Water Truck Dust Control Fog Cannon Truck With DFV5101TGP6DJ Chassis
18000KG 10300L Water Spray Fog Cannon Dust Suppression Mist Cannon Truck
Total Tonnage: 18 tons
Loading Capacity: 9325kg, 8105kg, 8305kg
Tank Volume: 10.3 cubic meters
Chassis: 4500mm wheelbase (standard); 5000mm (optional).
Sizes:
4500mm wheelbase: Length 9275/9245/10055/10025mm (changes with front overhang - 780mm with front water cannon - and suspensions). Angle: 13° approach, 10° departure. Tank: 4400×2400×1420mm.
5000mm wheelbase: Length 10580mm, front overhang 1430mm, rear overhang 2970mm, rear extension 1180mm. Angle: 12° approach, 9° departure. Tank: 3920×2400×1420mm.
Weight: 8480kg (4500mm); 9700kg or 9500kg (5000mm).
Side guards: Aluminum (standard) or Q235B (optional), bolted.
Rear guards: Q355B (standard) or Q235A (optional), bolted. Size: 240×65mm (standard) or 150×100mm (optional). Height: 420mm (standard) or 420/475mm (optional).
Cab look (with chassis), speed limiter (89km/h).
Middle beam left layout, front duckbill position, rear sprinklers, no right rear water gun, front cover, right layout.
Uses
Good for haze and dust control in many places. Many options to fit needs.
parameters
| Item | ZBJ5181TDYDHE6D |
| Energy type | Diesel |
| Dimension(L x W x H) | 3100×2350×1150mm |
| Chassis | DFV5101TGP6DJ |
| Engine | B6.2NS6B260 |
| Curb Weight | 3855(Kg) |
| Total Mass | 10490(Kg) |
| Maximum Speed | 89(km/h) |
| Water Tank Capacity | 12.37m³ |
| Fan Power | 16kw |
| Pump Material | Stainless steel multi-stage centrifugal pump |
| Pump Power | 8kw |

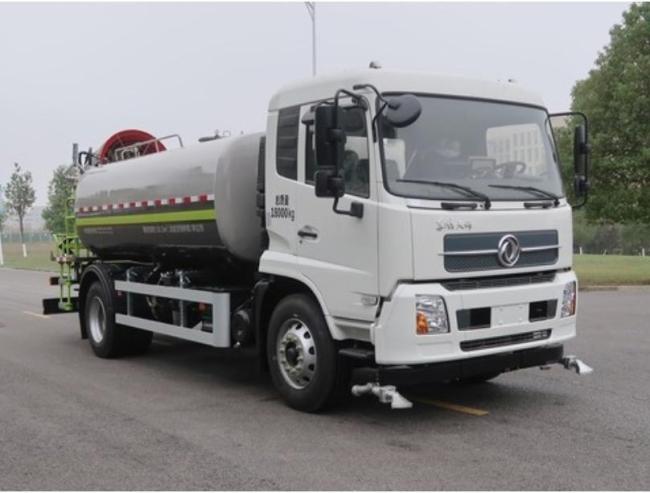

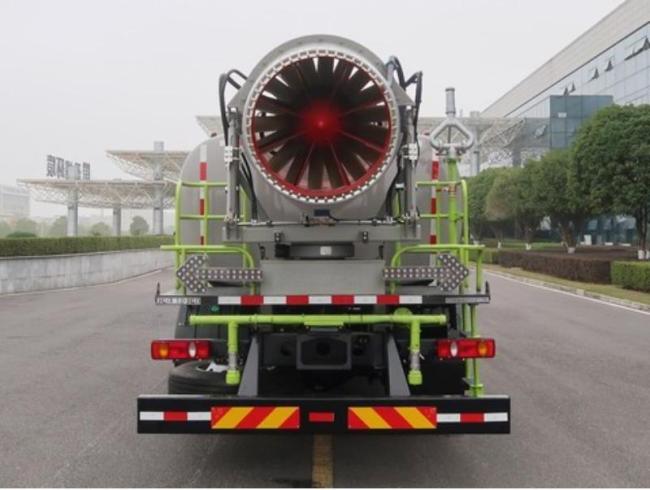

Actual photos
 |
 |
