4500KG 2800L Truck Mounted Fog Cannon Dust Suppression Vehicle
Price:
2895-5885USD
MOQ:
1
Delivery Time:
15-45 working days
Brand:
Bioclean
Product Description
4500KG 2800L Water Spray Fog Cannon Dust Suppression Mist Cannon Truck
Total Tonnage: 4495kg
Loading Capacity: 1400kg, 1265kg, 1115kg
Tank Volume: 2.8 cubic meters
Main Use & Parts
It is used for dust and haze control. Key devices are a dust suppression tank and spray system. The tank has a total capacity of 2.94 cubic meters, with external dimensions (length × major axis × minor axis) of 2800×1700×1250mm. It uses a 2850mm wheelbase chassis only.
Safety
Side and rear guards: Q235B material, bolted. Rear guard: 120×50mm, 390mm or 350mm above ground.
ABS System
Air brake: ABS model CM4XL-4S/4M , 4S/4M control.
Hydraulic brake: ABS models CM4YL, CM0953YL (same maker).
Options
Speed limiter (80km/h) and different looks can be chosen.
Fuel tank, battery and other parts' positions can be selected with the chassis.
Uses
Suitable for dust and haze control. Flexible to meet different needs.
parameters:
| Item | ZBJ5045TDYB6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 5830,5815×1930,2000×2740,2650(mm) |
| Chassis | BJ1045V9JB5-54 |
| Engine | Q25A-150C60 |
| Curb Weight | 2965,3100,3250(Kg) |
| Total Mass | 4495(Kg) |
| Maximum Speed | 105,80,110(km/h) |
| Water Tank Capacity | 2.8 cubic meters |
| Fan Power | 10kw |
| Pump Material | Stainless steel multi-stage centrifugal pump |
| Pump Power | 5kw |

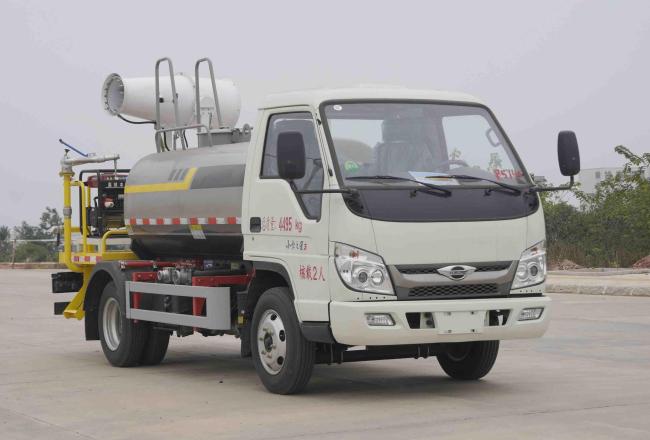

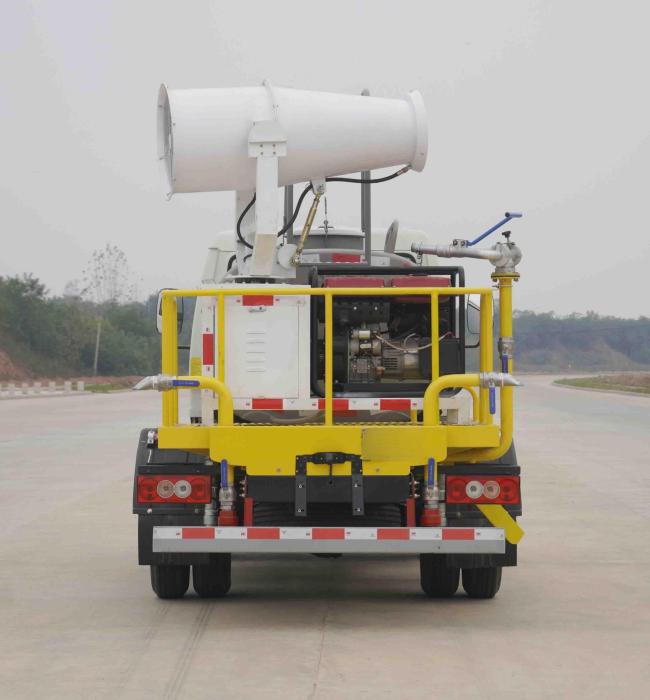

Actual photos
