12000KG Diesel Rubbish Compactor Truck With Side And Rear Protection
ZBJ5120XX 12000KG diesel mobile trash compressed garbage compactor truck
Product Overview – 12 Ton Diesel Garbage Compactor Truck (Export Model)
Gross Vehicle Weight (GVW): 12,000 kg
Payload Capacity: 4,580 kg
Wheelbase: 3,900 mm
Rear Overhang (Extension): 370 mm
Engine Specs:
Model: CA4DD1-16E6
Fuel Consumption: 21.18 L/100 km
Max Net Power: 118 kW
Fuel Type: Diesel
Main Features:
Equipped with rear garbage box & compression system
Designed for urban waste collection and transport
Optional: ETC on-board unit, FAW logo, 80 km/h speed limiter
Safety & Structure:
ABS by Ruili CM4XL-4S/4M or VIE ABS-II
Side protection: Q235A steel, bolted
Rear protection: replaced by working unit, ground clearance 500 mm
Reliable and efficient solution for municipal sanitation operations abroad.
Parameters:
| Item | ZBJ5120ZYS |
| Energy type | Diesel |
| Dimension(L x W x H) | 7725×2350×2860(mm) |
| Chassis | CA1120P40K59L4BE6A84 |
| Engine | CA4DD1-16E6 |
| Weight | 11995(Kg) |
| Rated Loading | 4580(Kg) |
| Axle Load | 4360/7635 |
| Front/Rear Overhang | 1155/2300(mm) |
| Tyre size | 245/70R19.5 16PR,8.25R20 16PR,255/70R22.5 16PR |

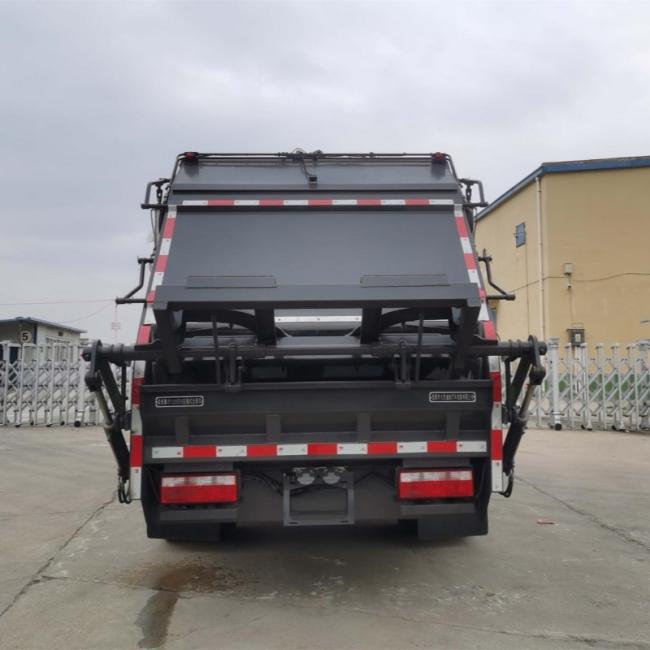

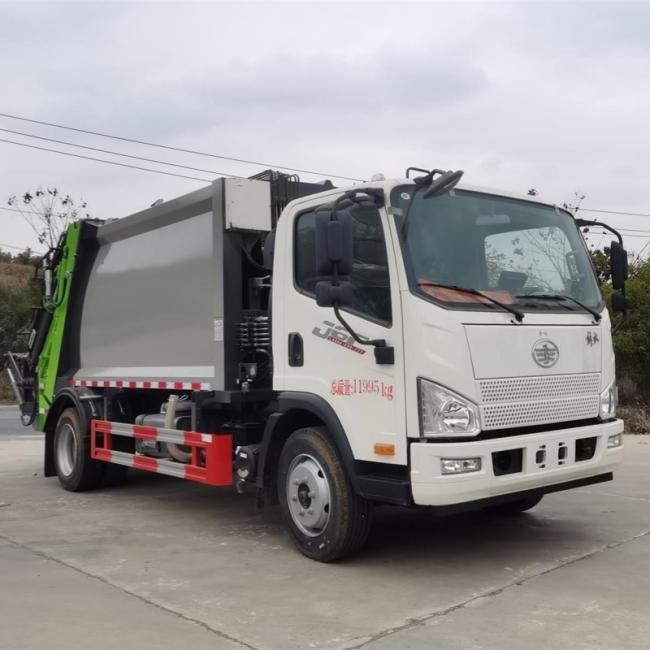

Actual photos:
 |
 |
