High Speed 18TONS Waste Compactor Vehicle Rubbish Collection Truck ZBJ5180XX
High Speed 18TONS Waste Compactor Vehicle Rubbish Collection Truck ZBJ5180XX
18-Ton Diesel Sanitation Truck
(Garbage Collection & Compression Vehicle)
This 18-ton diesel-powered truck is built for waste collection and transport, featuring a box body with compression system.
GVW: 18,000 kg
Curb Weight Options: 8365 / 8005 / 7525 kg
Wheelbase: 4500 mm
Engine: YCS04220-61A, fuel consumption 26.21 L/100 km
Body Lengths: 8690 / 8575 / 8465 / 8365 mm
Safety:
ABS: CM4XL-4S/4M
GPS recorder, optional speed limiter (max 89 km/h)
Optional Equipment:
Flip bucket, triangular hopper, ground bin, swing arm
Rear work lights (only in operation mode)
ETC system, left/right sewage doors
Side guards use Q235B steel with bolted connections; rear protection integrated into structure (ground clearance: 480 mm). Suitable for urban sanitation and waste operations.
Parameters:
| Item | ZBJ5180ZYSH6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 8690,8575,8465,8365×2550×3300,3400(mm) |
| Chassis | HFC1181B90K2D6ZS |
| Engine | YCS04220-61A |
| Weight | 18000(Kg) |
| Rated Loading | 8365,8005,7525(Kg) |
| Axle Load | 6500/11500 |
| Front/Rear Overhang | 1290/2900,1290/2785,1290/2675,1290/2575(mm) |
| Tyre size | 10.00R20 18PR,11R22.5 18PR |

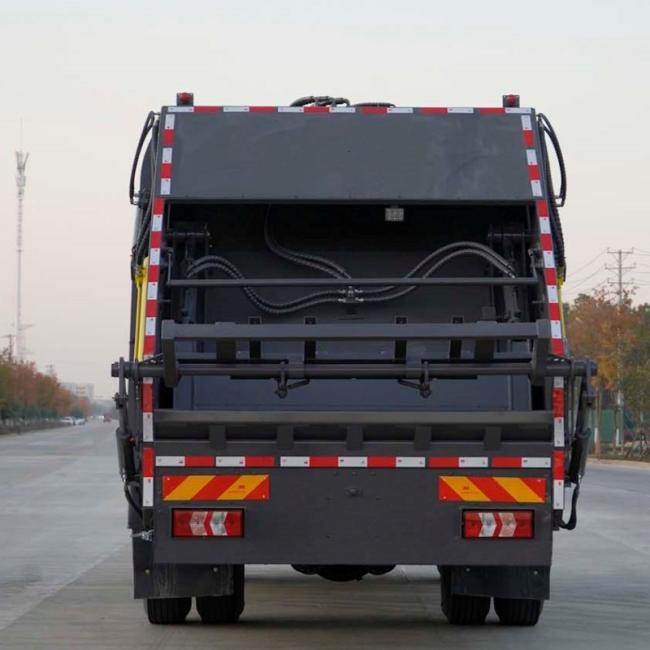

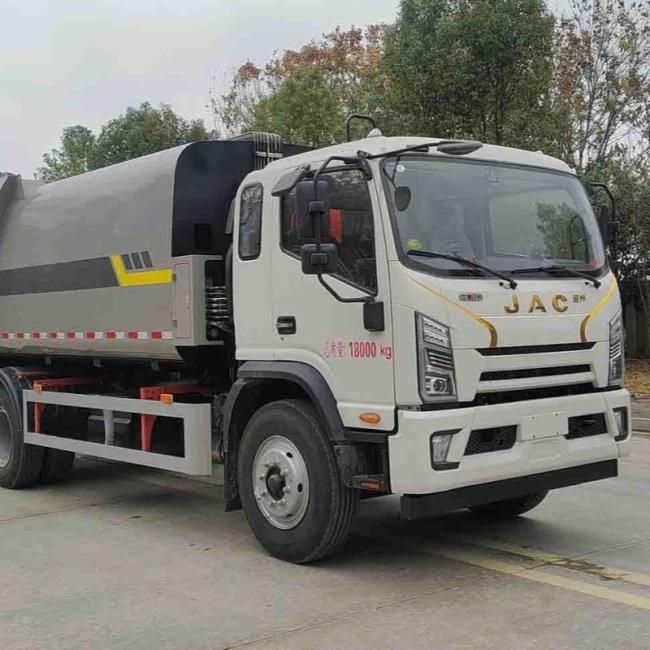

Actual photos:
 |
 |
