18000kg Large Box Capacity Garbage Compactor Truck 89km/H Max Speed ZBJ5181XX
18000kg Large Box Capacity Garbage Compactor Truck 89km/H Max Speed ZBJ5181XX
Product Overview – 18 Ton Diesel Garbage Compactor Truck
Gross Vehicle Weight (GVW): 18,000 kg
Payload Capacity: 8270 / 8205 / 8030 / 7965 / 7790 / 7725 / 7370 / 7305 kg
Wheelbase: 4500 mm
Overall Dimensions (L × W × H): Varying from 8375–8700 mm in length depending on configuration
Fuel Type: Diesel
Engine Model & Fuel Consumption: YCS04200-68 (24.82 L/100 km)
Main Functional Equipment:
Integrated compression box and hydraulic system for waste collection
Optional rear devices: barrel lifter, triangular hopper, ground hopper, swing arm
Optional accessories: valve cover, fender, appearance decals
Safety & Compliance:
Side protection: Q235B steel, bolted
Rear protection: replaced by functional structure, ground clearance 500 mm
Equipped with GPS-enabled tachograph and ETC device (direct power supply)
Optional working lights (only operable during stationary work)
ABS compliant
A robust, high-capacity compactor ideal for municipal waste handling operations.
Parameters:
| Item | ZBJ5181ZYSS6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 7805,7770,7515×2510×3050(mm) |
| Chassis | SX1180BP6501 |
| Engine | YCS04200-68 |
| Weight | 18000(Kg) |
| Rated Loading | 8270,8205,8030,7965,7790,7725,7370,7305(Kg) |
| Axle Load | 6500/11500 |
| Front/Rear Overhang | 1300/2900,1300/2785,1300/2675,1300/2575(mm) |
| Tyre size | 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR,295/80R22.5 18PR |

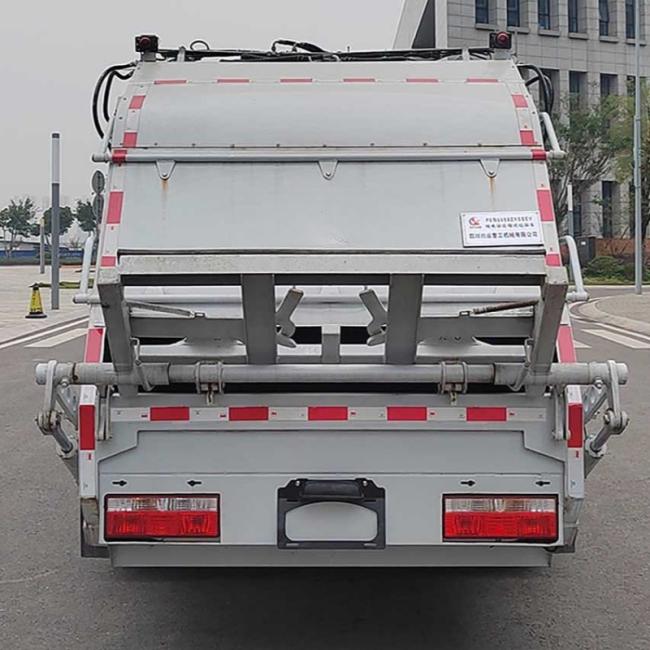

Actual photos:
 |
 |
