Diesel Operated Garbage Compactor Vehicle 1.8 Ton High Strength ZBJ5181XX
Diesel Operated Garbage Compactor Vehicle 1.8 Ton High Strength ZBJ5181XX
18-Ton Diesel Sanitation Truck
(Garbage Collection & Compression Vehicle)
This 18-ton diesel-powered truck is equipped with a box body and compression system for efficient garbage collection, compaction, and transport.
Payload Range: 7305–8270 kg
Wheelbase: 4500 mm
Engine: YCS04200-68
Fuel Consumption: 24.82 L/100 km
Optional Features:
Rear bucket, triangle hopper, ground hopper, or swing arm loader
Work lights (active only in operation mode)
ETC onboard unit, GPS-enabled driving recorder
Valve covers, left/right sewage doors, tank & body design variations
Custom wheel guards, cab style, decals, and auxiliary installations
Safety:
Side guards: Q235B, bolted
Rear guard replaced by integrated equipment (ground clearance: 500 mm)
Ideal for municipal sanitation, this model offers strong load capacity and flexible rear operation configurations.
Parameters:
| Item | ZBJ5181ZYSS6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 7805,7770,7515×2510×3050(mm) |
| Chassis | SX1180BP6501 |
| Engine | YCS04200-68 |
| Weight | 18000(Kg) |
| Rated Loading | 8270,8205,8030,7965,7790,7725,7370,7305(Kg) |
| Axle Load | 6500/11500 |
| Front/Rear Overhang | 1300/2900,1300/2785,1300/2675,1300/2575(mm) |
| Tyre size | 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR,295/80R22.5 18PR |

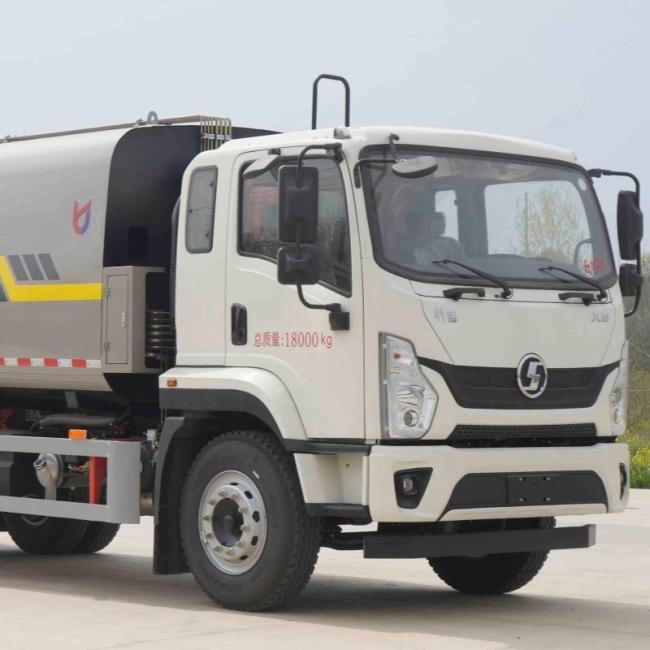

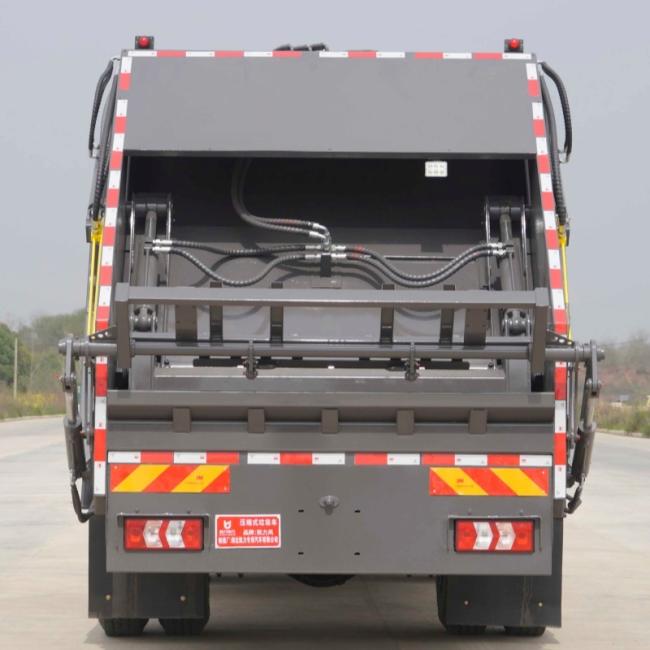

Actual photos:
 |
 |
