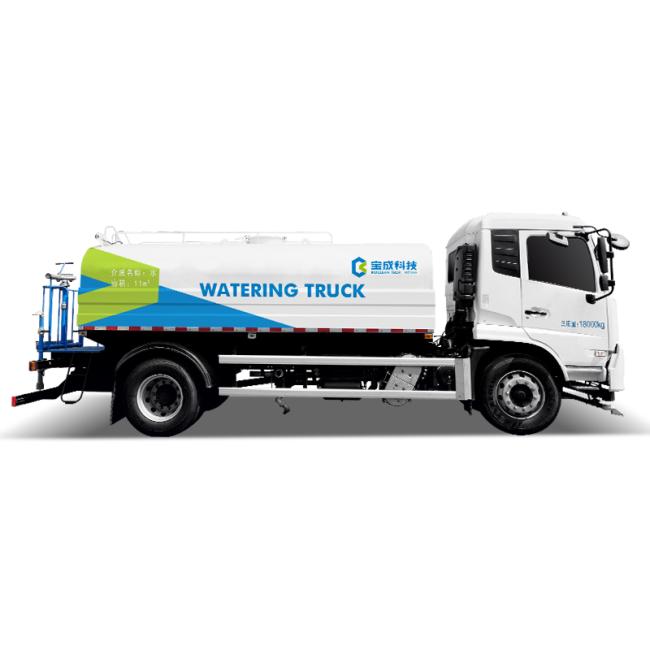

11m3 Dongfeng Water Truck Water Tank Truck 18000kg Diesel Powered
11m³ water tank dongfeng water tank water spray spraying tanker sprayer truck
Low-pressure Water Pump: Adopt a self-priming two-stage centrifugal pump from a renowned enterprise, which has high efficiency and good reliability.
Front Spraying Device: There is a pair of duckbill-shaped forward nozzles under the front of the cab, which can perform forward fan-shaped spraying and cover 3 lanes at a time.
Middle Opposite Flushing: There is one conical nozzle on each side of the opposite flushing device under the tank body for two-way flushing. By loosening the two rotating sleeves at the nozzles, the nozzle angle can be adjusted arbitrarily. The front opposite flushing can wash 6 lanes at a time.
Rear Sprinkling Device: The rear sprinkling device is arranged on the vertical water pipes on both sides of the rear platform. The upper part of the water pipe is a duckbill-shaped nozzle facing left and right sides, and the lower part is a circular nozzle. When the two rear sprinkling nozzles are turned on at the same time, the sprinkling width is not less than 14m.
Water Cannon: The water cannon is an aluminum-made long-range water cannon, installed on the right side of the rear workbench. The water cannon can rotate 0° to 360°, and the cannon body can be operated to pitch up and down.
Parameters:
| Item | ZBJ5180GSSC |
| Energy type | Diesel |
| Dimension(L x W x H) | 7860×2530×2900,3070(mm) |
| Chassis | DFH1180EX8 |
| Engine | DDi50E190-60 |
| Curb Weight | 10480(Kg) |
| Rated Loading | 7325(Kg) |
| Total Mass | 18000(Kg) |
| Front/Rear Overhang | 1400/1960,1430/1930,1400/1460,1430/1430(mm) |
| Tyre size | 275/80R22.5 18PR,10.00R20 18PR |

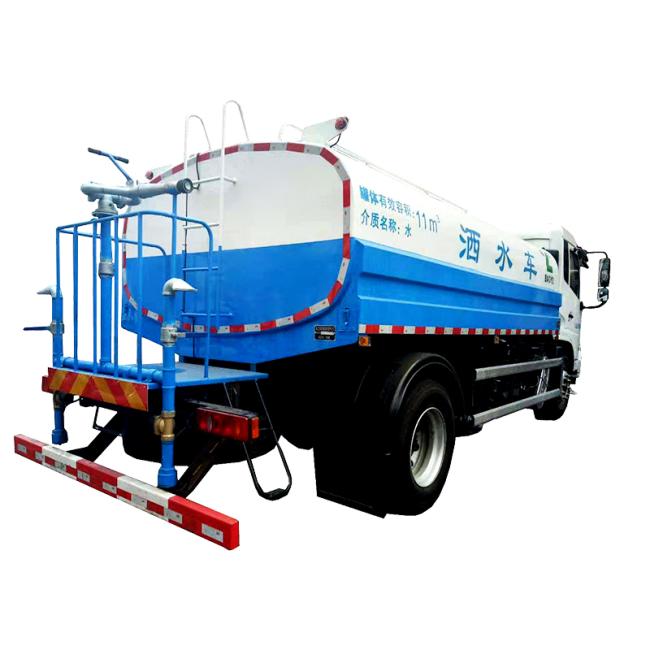

Actual photos:
