Pure Electric 10m3 Road Watering Truck With BJ1186EVJA5 Chassis Energy Efficient
Pure clectric 10m³ water tank water spray spraying tanker sprayer truck
Pure Electric 18 T Disinfection Sprayer (18 000 kg GVW, 9 150 kg Payload)
Tank & Medium
Total/Effective: 11.14 m³ / 10.60 m³ (disinfectant, ρ = 850 kg/m³)
Size (L × long × short): 5 000 × 2 230 × 1 420 mm
Drive & Energy
LiFePO₄ battery pack (Wuhan Fudi Battery Co.)
Motor: 105 kW continuous / 175 kW peak
Protection
Side & rear guards: Q235 steel, bolt‑on
Rear guard section: 80 × 160 mm; 440 mm ground clearance
Dimensions & Payload Variants

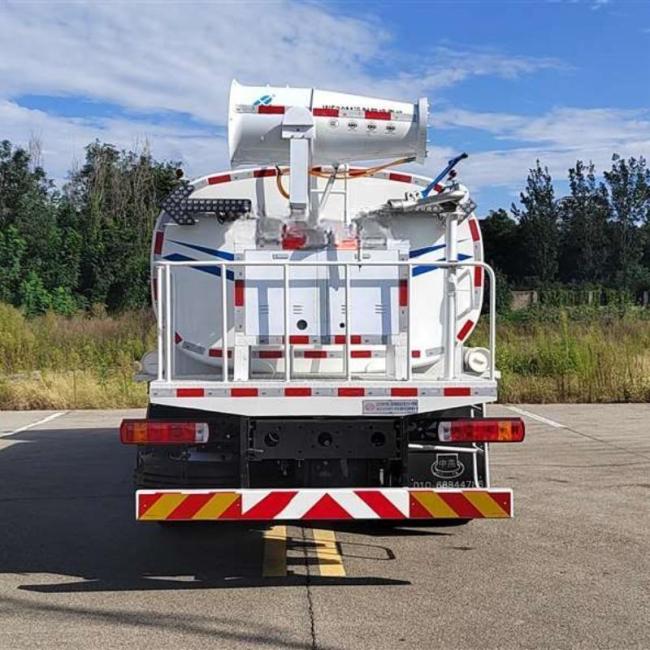

With rear mist cannon (curb weight 8 720 kg): 3‑seat/9 085 kg or 2‑seat/9 150 kg payload
Without mist cannon (curb weight 8 655 kg): 3‑seat/9 150 kg or 2‑seat/9 215 kg payload
Length/Front overhang/Wheelbase/Rear overhang (no front gun): 7 980 / 0 / 4 500 / 2 210 mm
With front electronic gun (+580 mm overhang): 8 560 / 580 / 4 500 / 2 210 / 1 270 mm
Options
ETC unit, various mist‑cannon and spray‑gun styles, rear platform, arrow‑lamp
Ideal for zero‑emission street, plaza and community disinfection.
Parameters:
| Item | ZBJ5183TSDBEV1 |
| Energy type | Pure clectric |
| Dimension(L x W x H) | 8560,7980×2510×2800,2850,2900,2950,3000(mm) |
| Chassis | BJ1186EVJA5 |
| Engine | TZ375XSSF-SZF611 |
| Curb Weight | 9150,9085,9215(Kg) |
| Rated Loading | 8720,8655(Kg) |
| Total Mass | 18000(Kg) |
| Front/Rear Overhang | 1270/2210(mm) |
| Tyre size | 10.00R20 18PR |
 |
 |
