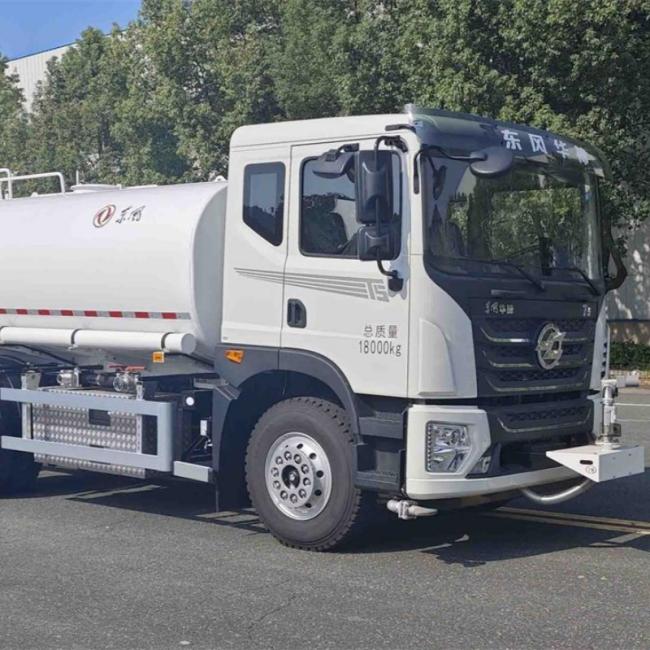

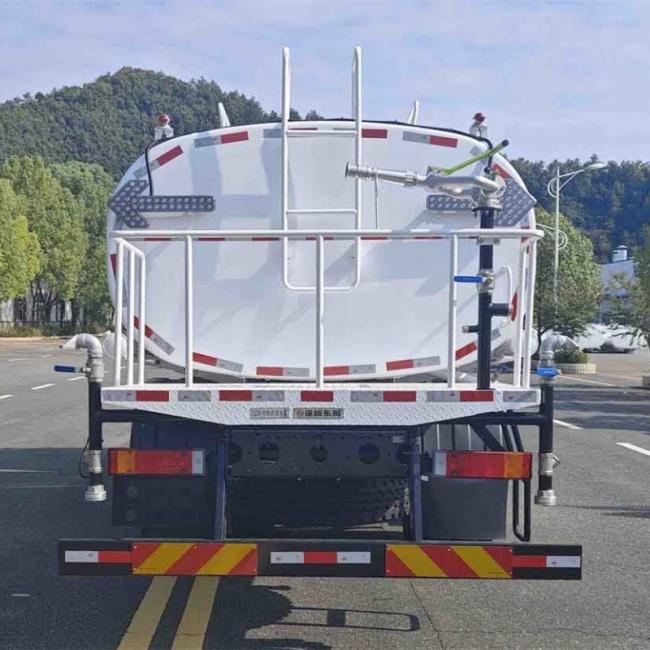

18000KG Pure Electric Water Truck 10m3 Sprinklers Truck Easy Operational
18000KG pure clectric 10m³ water tank water spray spraying tanker sprayer truck
Pure Electric 18 T Sprinkler Truck (18 t GVW, 10 570 kg Payload)
Chassis & Dimensions
Wheelbase & Length: 3 950 mm; 7 765 mm (no front cannon) | 8 285 mm (with cannon, +520 mm)
GVW: 18 000 kg | Payload: 10 570 kg (10 505 kg net)
Water Tank
Total/Effective: 11.03 m³ / 10.50 m³
Size: 4 500 × 2 400 × 1 450 mm
Media: Water (ρ = 1 000 kg/m³)
Safety & Protection
Side & Rear Guards: Q235B steel, bolt‑on (rear section 160 × 60 mm, 480 mm ground clearance)
Electric Drive & Energy Storage
Battery: LiFePO₄ modules
Motor: Permanent‑magnet synchronous TZ365XS‑HSM1601, 95 kW continuous / 160 kW peak
Standard & Optional Equipment
Satellite arrow‑lamp at rear (operational mode only)
Optional: ETC unit, mist‑cannon assemblies, rear pump–motor, tank stiffeners, tool box, water‑cannon brackets
| Item | ZBJ5182GSSEV |
| Energy type | Pure clectric |
| Dimension(L x W x H) | 8070×2535×3030(mm) |
| Chassis | DFH1180EEV1 |
| Engine | TZ365XS-HSM1601 |
| Curb Weight | 9340,9275(Kg) |
| Rated Loading | 8530(Kg) |
| Total Mass | 18000(Kg) |
| Front/Rear Overhang | 1400/2170(mm) |
| Tyre size | 10.00R20 18PR,295/80R22.5 18PR |
 |
 |
