16 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6
Price:
4050-6890usd
MOQ:
1 Piece
Delivery Time:
15-45 workdays
Brand:
Bioclean
Product Description
ZBJ5160TSL6 16ton diesel street road sweeper truck
Key Parameters
- Total Weight: 16 tons. The body is robust, suitable for heavy - duty cleaning tasks.
- Size: 8630×2480×3080mm. It offers a large cleaning range while maintaining good road passability.
- Power: 239 - horsepower diesel engine. It delivers strong power to ensure efficient and continuous cleaning operations.
- Load Capacity: 9990Kg. It can collect a large quantity of road garbage, reducing the frequency of dumping.
Core Configurations and Functions
- Cleaning Mechanism: It mainly cleans the road through special devices such as the box, cleaning mechanism and fan, focusing on road cleaning operations.
- Safety Features: The side protection is replaced by the vehicle body structure, and the rear protection is replaced by the vehicle's special device. The maximum ground clearance of the rear protection is 160mm. It is equipped with ABS systems from different manufacturers: ABS - E from WABCO Vehicle Control Systems (China) Co., Ltd., CM4XL - 4S/4M from Guangzhou Ruili Kemi Auto Electronics Co., Ltd., 3550D - 1010 from Dongke Knorr Commercial Vehicle Brake System (Shiyan) Co., Ltd., and EBS 5 from Knorr Brake System (Dalian) Co., Ltd., ensuring braking safety.
- Optional Features: A speed limiting device can be installed with the chassis, limiting the speed to 89km/h. Different appearance structures can be selected to meet various needs.
Application Scenarios
It is suitable for large - scale road cleaning operations, such as urban main roads, large industrial areas and transportation hubs. With its strong power, large load capacity and efficient cleaning devices, it can effectively complete the cleaning of a large amount of road garbage.
parameters:
| Item | ZBJ5160TSL6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 8630×2480×3080(mm) |
| Chassis | BJ1166VKPFK-1M |
| Engine | F4.5NS6B240A |
| Curb Weight | 9900(Kg) |
| Rated Loading | 6370(Kg) |
| Total Mass | 16000(Kg) |
| Max.Speed | 100(km/h) |
| Sweeping Width | 2.5m |
| Sweeping Efficiency | 93% |
| Maximum Sweeping Speed | 20kmh |
| Maximum Inhaled Particles | 110mm |

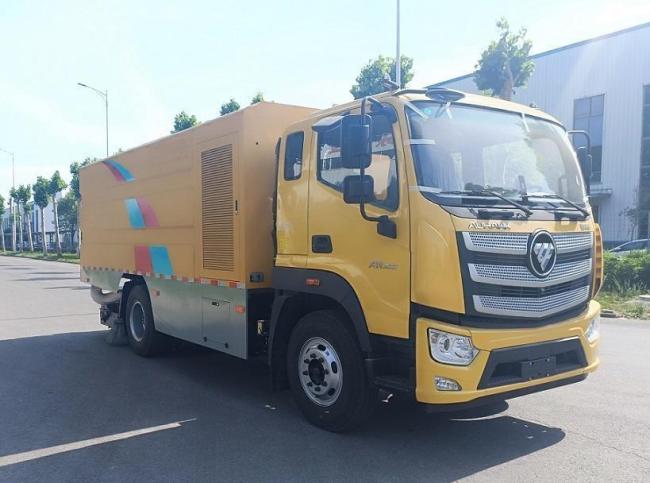

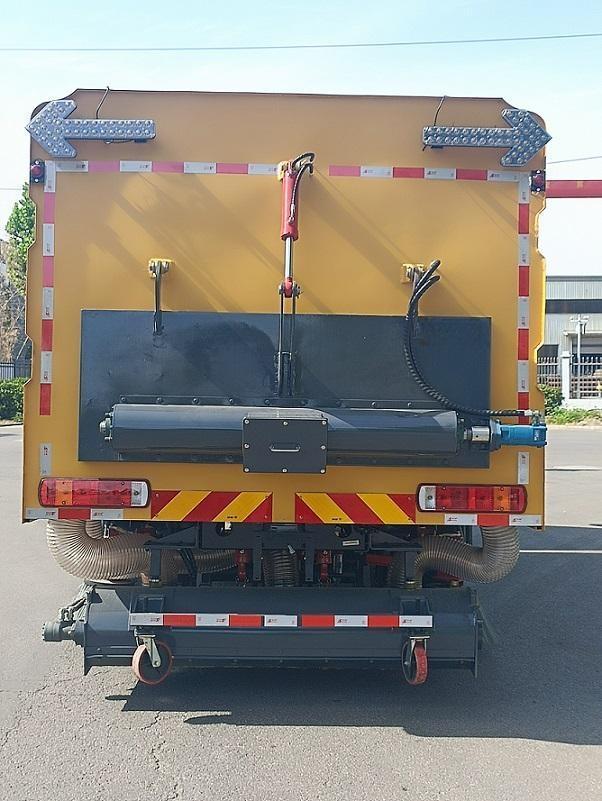

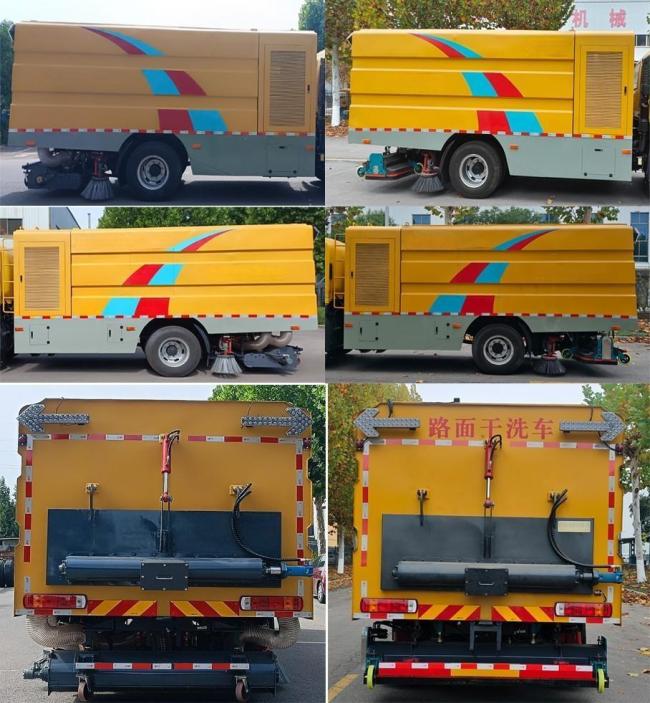

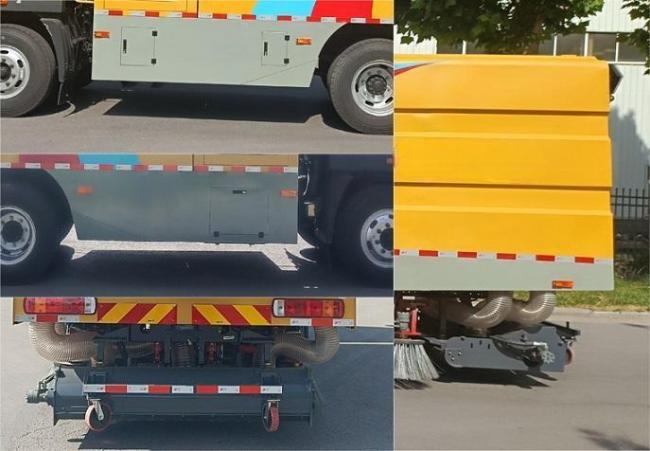

Actual photos
