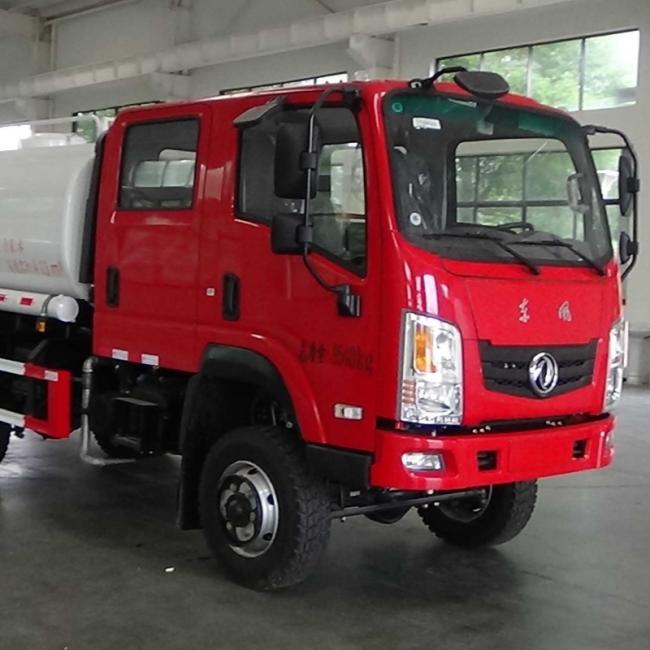

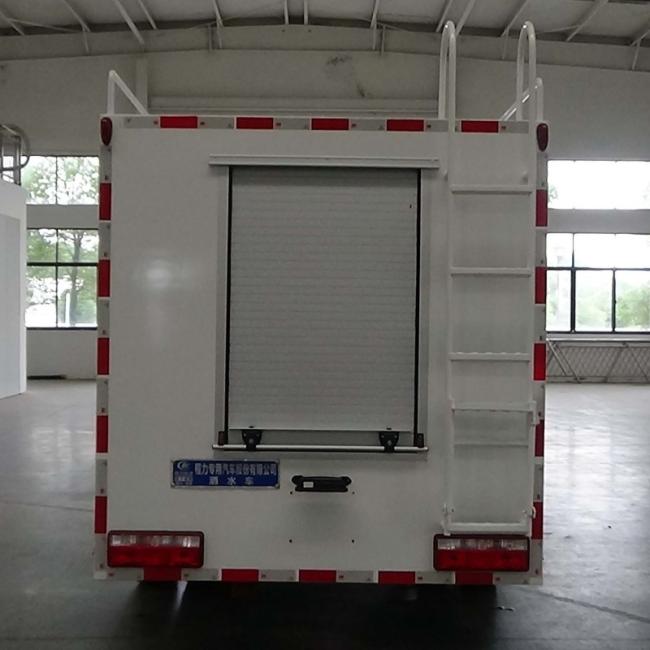

9.5tons 4.5m3 Water Tanker Sprayer Truck With Q25-152E60 Engine For Road Cleaning
9.5tons 4.5m³ water tank water spray spraying tanker sprayer truck
Diesel‑Powered 9.5 T Sprinkler Truck (9.5 t GVW, 4 095 kg Payload)
Key Specifications
Chassis & Dimensions
Wheelbase: 3 400 mm
Overall GVW: 9 500 kg
Rated Payload: 4 095 kg (4 030 kg net)
Water Tank
Total Capacity: 4.23 m³
Effective Capacity: 4.03 m³
Tank Size (L × W × H): 2 350 × 1 850 × 1 150 mm
Material: Carbon‑steel Q235A, anti‑corrosive lining
Safety & Protection
Side & Rear Guards: Q235A carbon‑steel (skirt‑type rear guard, 450 mm ground clearance)
Wheel Assembly: 235/75R17.5 16PR tires for stable load support
Braking & Control
Model: 3631010‑C2000 (VIE ABS‑Ⅱ)
Special Features
High‑pressure spraying system for road cleaning, dust suppression and urban landscaping
Quick‑release spray guns and adjustable nozzles for side, front and rear coverage
Applications
Ideal for municipal road cleaning, highway dust control, industrial sites, parks and residential landscaping. Robust chassis and corrosion‑resistant tank ensure long service life under demanding export‑market conditions.
For inquiries, please contact our Export Sales Team.
Parameters:
| Item | ZBJ5100GSSAXF |
| Energy type | Diesel |
| Dimension(L x W x H) | 6430×2120×2780(mm) |
| Chassis | EQ2110GSZ6DJ |
| Engine | Q25-152E60 |
| Curb Weight | 4095,4030(Kg) |
| Rated Loading | 5120(Kg) |
| Total Mass | 9540(Kg) |
| Front/Rear Overhang | 1050/1980(mm) |
| tyre size | 235/75R17.5 16PR,8.25R20 12PR |
