2.2m3 Water Tank Road Maintenance Vehicle Pure Electric 665kg 600kg Loading Capacity

Name: 2.2m3 Water Tank Road Maintenance Vehicle Pure Electric 665kg 600kg Loading Capacity
Brand: Zhejiang Bioclean Machinery Technology Co., Ltd

Price Negotiable

Price: 2895-4855 usd

MOQ: 1 Piece

Delivery Time: 15-45 working days

Brand: Bioclean

Product Description

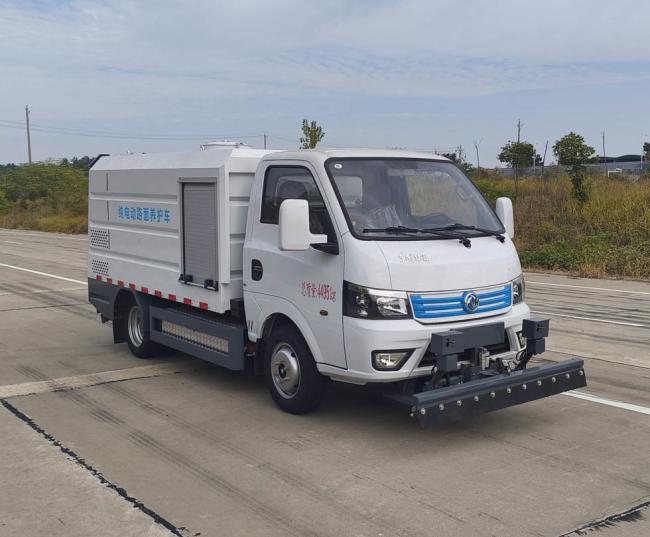

2.2m³ water tank pure electric roadside assistance Service Road Maintenance Truck

Total Mass: 4495kg

Loading Capacity: 665kg, 600kg, 485kg, 420kg

Main Use & Key Devices

Used for road cleaning and maintenance. Equipped with special device: spray cleaning frame. Front overhang: 330mm.

Chassis & Dimensions

Wheelbase: 2800mm (only this wheelbase is used).

Tire options: 6.00R15LT 10PR, 185R15LT 8PR.

Safety Protections

Side and rear lower guards: Q235 material, bolted.

Rear lower guard: section size 100×50mm, 370mm above ground.

ABS System

Options: CM4YL, CM0953YL .

Power & Energy

Battery: Lithium iron phosphate battery (CATL, cell and assembly by CATL), assembly model L173TB3.

Drive motor: Permanent magnet synchronous motor, model TZ180XSA05 . Rated power 42kW, peak power 100kW.

Optional Configurations

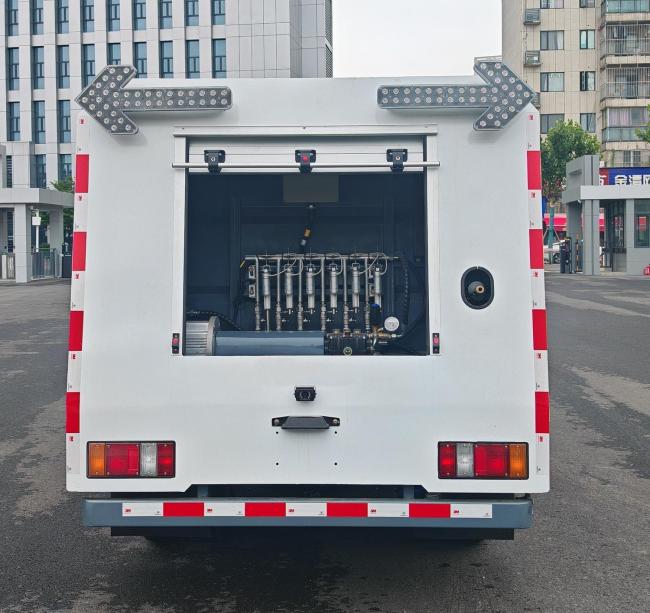

Front spray device shapes, double-point spray components, rear spray rods, front cameras.

Rear work indicator lights (only used during operation).

Uses

Suitable for road cleaning and maintenance. Flexible options meet different needs.

parameters

Item	ZBJ5045TYHE6
Energy type	Pure electric
Dimension(L x W x H)	5480×1800×2150(mm)
Chassis	EQ1040BTZEVJ
Engine	TZ180XSA05
Secondary Engine	—
Curb Weight	2760(Kg)
Rated Loading	1605(Kg)
Total Mass	4495(Kg)
Max.Speed	90(km/h)
Front/Rear suspension	1180/1170(mm)
Tank Volum	2.1 cubic meters
