Green PET Plastic Steel Strapping Production Line Heavy Duty PET Strapping Machine
9-25mm Green PET Plastic Steel Strapping Production Line PET Strapping Machine with Heavy Duty Strapping
FEATURE DESCRIPTION
PET plastic steel strip production line
PET plastic steel belt equipment is a mechanical equipment used to produce PET plastic steel belt, mainly used to manufacture high-strength, environmentally friendly packaging materials. The following is its main introduction:
Equipment components:
Extruder---Heat and melt the PET bottle flakes and extrude them into shape.
Cooling system---Use water cooling to quickly cool and shape the extruded plastic steel belt embryo.
Stretching system---Stretch the cooled belt embryo to improve strength and toughness, more than 10 times.
Embossed system---Press patterns on the surface of the belt to increase friction and aesthetics.
Reeler--- Wind the finished plastic steel belt into a roll for easy storage and transportation.

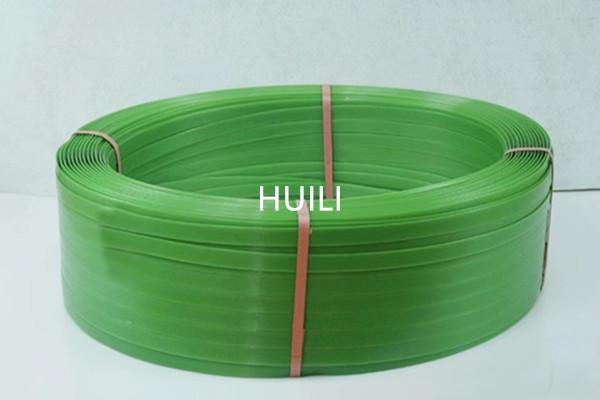

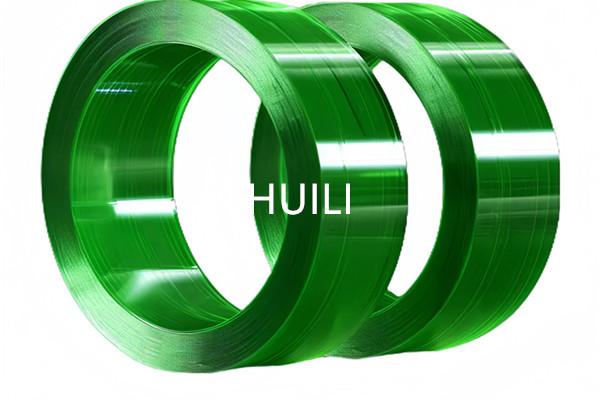

Introduction to PET plastic steel strap:

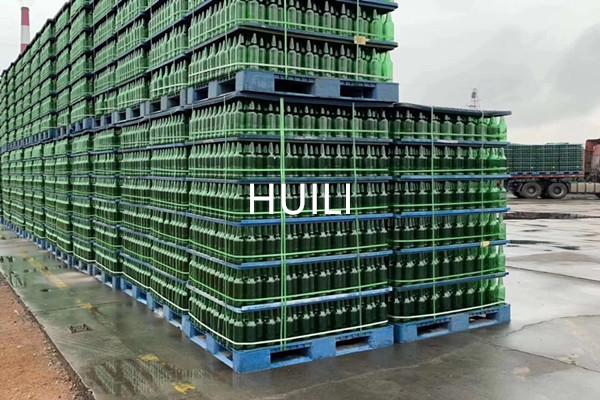

PET plastic steel strap (also known as PET strap) is a new type of strapping strap that is currently popular in the world to replace steel straps. With the advantages of low cost, beautiful and durable, environmentally friendly recycling, and high degree of automation, it is widely used as a new type of strapping packaging material to replace steel straps and PP strapping straps. It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper, ceramics, wood, metal canning and other industries.
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Width (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder | ||||
| Winding machine | Automatic winding/ Semi-automatic winding | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
PET plastic steel belt production line------ ADVANTAGES

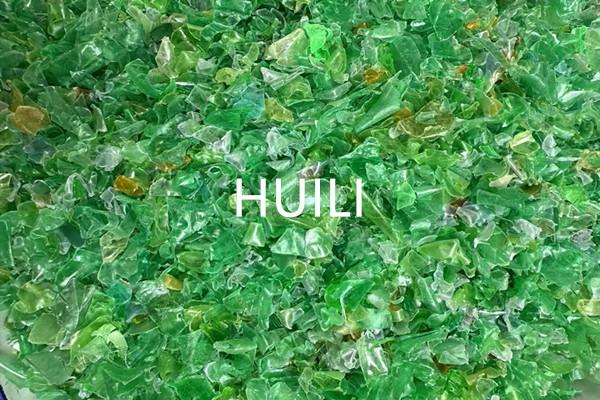

PET plastic steel belt equipment raw materials:
100% bottle flakes or crushed materials or mixed materials
Steel buckle----- The tensile force of PET plastic steel strapping tape is the standard for measuring quality. Internationally, the tensile force of strapping tape is usually required to be 200-1500KG to ensure that it is not easy to break during transportation. With iron buckle strapping, the use effect is better, not easy to fall off, not easy to crack,
After-sales service
PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
