PET strapping making machine 100CC metering pump PET molding steel strap production line High speed extruder

FEATURE DESCRIPTION OF PET STRAPPING MAKING MACHINE

PET strapping making machine

PET strapping making machine is a high-speed, intelligent and environmentally friendly plastic equipment with the following advantages:

1. Raw materials:

PET plastic steel belt can use raw materials:

       bottle flakes or crushed materials or thickening granular materials

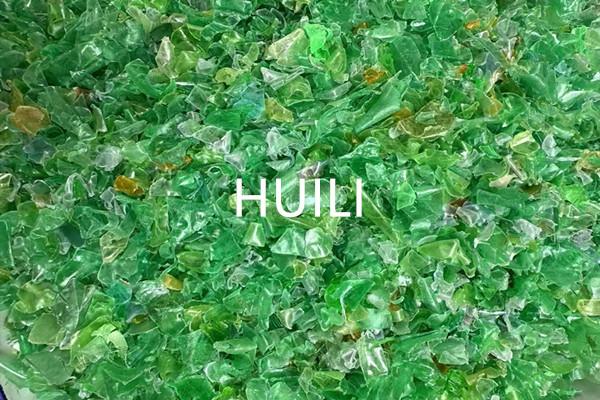

Bottle flakes: waste mineral water, Sprite, Coke and other bottle flakes as raw materials, which are crushed, cleaned and dried.

Crushed materials: finished PET plastic steel belt is crushed and screened, cleaned and dried;

Viscosity granular materials: PET crushed materials are processed, cleaned and thickened granular materials

FEATURES OF PET STRAPPING MAKING MACHINE

Screw----The extruder of the PET strapping making machine adopts a PET special screw with a unique parameter design. The screw has a unique separation and mixing effect, which ensures the uniform plasticization of the raw materials. It has the advantages of large extrusion volume, good plasticization, high hardness, and high wear resistance.

Filter---- Three-dimensional foldable large-area filter device, the unfolded area of ​​the filter is 30 times larger than the traditional flat filter area; the filter mesh can reach 80 meshes, and the unique screen changing device greatly reduces the screen changing time and improves work efficiency.

PET STRAPPING MAKING MACHINE PROCESS FLOW
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding

                     EXTRUSION PARAMETERS TABLE

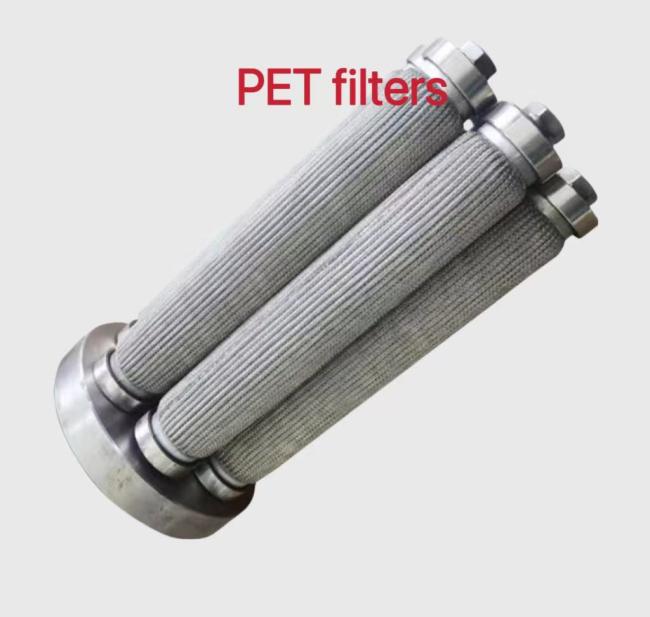

CHEICAL FIBER FILTER

Special chemical fiber filter for PET plastic steel belt, which meets the filtration accuracy required by the product. Effective exhaust procedure prevents outside air from entering the melt when changing the screen. Simple operation, high reliability, short material retention time, no leakage, small pressure loss, and smooth flow channel.

AFTER-SALES SERVICE

Our PET strapping making machine provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:

Pre-sales:

1. Layout of PET strapping making machine.

2. Analysis of finished product manufacturing costs of PET strapping making machine.

3. Analysis of raw materials used in PET strapping making machine.

After-sales service:

1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET strapping making machine.

2. Installation, commissioning and training of PET strapping making machine.

3. Maintenance service of PET strapping making machine.

4. Regular maintenance and repair

5. Fault diagnosis

6. Software update and upgrade

7. Spare parts and accessories

8. Training and technical consultation

FAQ:

Q: What is the voltage of the PET strapping making machine?

A: 380V/50HZ, three-phase (customization supported)

Q: What is the extrusion capacity of the PET strapping making machine?

A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H

Q: What is the producible width of the PET strapping making machine?

A: 9-32mm

Q: Can the PET strapping making machine be customized?

A: Customization supported

Q: Where does the PET strapping making machine come from?

A: China.

Q: What are the certifications for the PET strapping making machine?

A: ISO CEO certification.

Q: What is the minimum order quantity for the PET strapping making machine?

A: 1 set

Q: What is the weight of the  PET strapping making machine?

20T, 40GP container * 3PCS
