PP PET belt Friction bonding handheld electric strapping machine Hand wipe strapping machine Packaging machinery

DESCRIPTI OF PP PET BELT HANDHELD ELECTRIC STRAPPING MACHINE

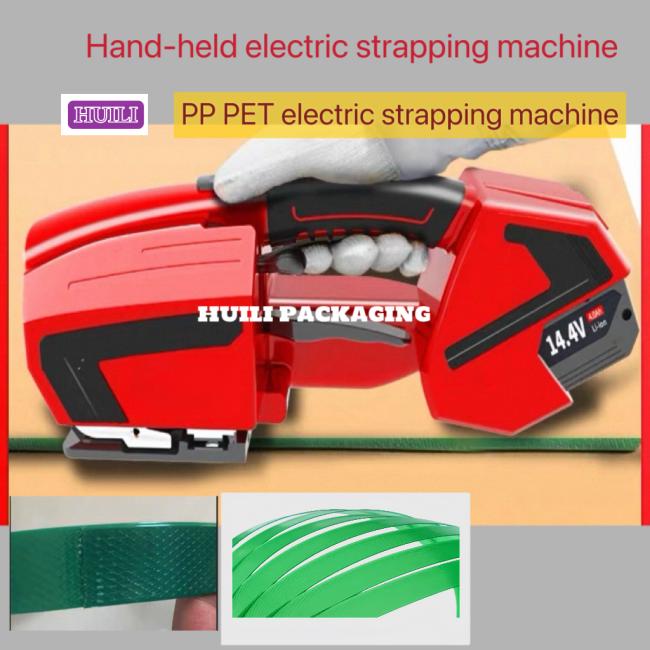

Handheld electric strapping machine

Handheld baling machine

Electric packaging machine

Hot-melt adhesive baling machine

Electric baling machine


Handheld electric baling machine,Electric baling machine  is a portable strapping equipment, mainly used for fast and efficient packaging and fixing of various goods, widely used in logistics, warehousing, manufacturing, e-commerce and other fields. It uses electricity as the power source, is more labor-saving than manual baling machine, and more flexible than pneumatic baling machine. It is an important tool in modern packaging operations.
1. Basic structure and working principle

CORE STRUCTURE
Power system-----Built-in rechargeable lithium battery (common voltage is 12V, 18V, etc.) to provide power for the motor, support cordless operation, and the battery life can meet hundreds to thousands of packing times depending on the model.
Tightening mechanism-----The motor drives the gear or belt, and clamps the strapping tape (such as PP belt, PET belt) through the clamp to achieve rapid tightening, and the tightening force can be adjusted (usually in the range of 50-3000N).
Welding-------Depending on the type of strapping tape, it is divided into two methods:
Hot melt type: The plastic strapping tape is melted and pressed together through the heating plate, which is suitable for PP strap and PET strap.
Bite type: The strapping tape is mechanically bitten and fixed through metal teeth, which is suitable for some high-strength steel straps or special material straps.
Operation panel-------Includes power switch, tightening button, welding button, tension adjustment knob, etc. Some high-end models are equipped with LCD display screen to display information such as power and tension value.
Body shell---------made of high-strength plastic or metal, lightweight and wear-resistant. Some models are designed with anti-slip handles to improve holding comfort.



                                           MACHINE PARAMETERS



Wide range of application-----
                                Compatible with a variety of strapping tapes (usually 6-19mm in width), including PP belt (polypropylene tapes), PET belt (polyester tapes), and some high-end models can support light steel tapes.




WORKING PRINCIPLE

Wrap the PP PET STRAPPING BELT around the goods, cross and overlap the two ends and put them into the tightening mechanism of the strapping machine.

Start the tightening button, and the motor drive mechanism tightens the strapping tape to the preset tension (to ensure the goods are firm).

Trigger the welding/biting mechanism to fix the overlapping part (hot melt type needs to be heated briefly and then cooled, and the bite type is directly mechanically locked).

Cut off the excess strapping tape and complete a packaging. The whole process only takes a few seconds, safe and firm, 100% bonding and fusion.




APPLICABLE OCCASIONS

Logistics and warehousing-----Centralized packaging of cartons, parcels, and pallets to improve loading and unloading efficiency.
Manufacturing-----Fixed delivery of raw materials (such as pipes and plates) and finished products (such as home appliances and furniture) to prevent collision damage during transportation.
E-commerce and express delivery------Quick packaging of small goods in e-commerce warehouses, more efficient with automated assembly lines.
Agriculture and building materials------Bundle packaging of crops (such as cotton and medicinal materials) and building materials (such as cement bags and tiles) for easy storage and transportation.





FAQ:

Q: How many batteries does the handheld electric baler have?
A: Normally 1, 2-3 can be selected according to demand
Q; Is the handheld electric baler suitable for PP PET strapping belt?
A: The same machine can be used for 2 types of PP PET strapping belts, and the spring needs to be replaced. The tightening force is different, and the selected spring is also different.
Q: Is the handheld electric baler suitable for air transportation?
A: Yes, we have test data
Q: Does the handheld electric baler have a warranty?
A: Warranty time: 12 months
Q: Where is the handheld electric baler made?
A: China, FE/CO certificate of origin can be provided
Q: What are the specifications suitable for the handheld electric baler?
A: PP PET Strapping belt width: 11-19mm
Q: MOQ?
A: 1 PCS





MACHINE PARAMETERS
