SKD-11 Embossing Wheel PP Strapping Production Line High Speed 200-300m/Min
SKD-11 embossing wheel PP strapping production line 5-19mm PP strapping machine high-speed extruder
Product Description of PP strapping production line:

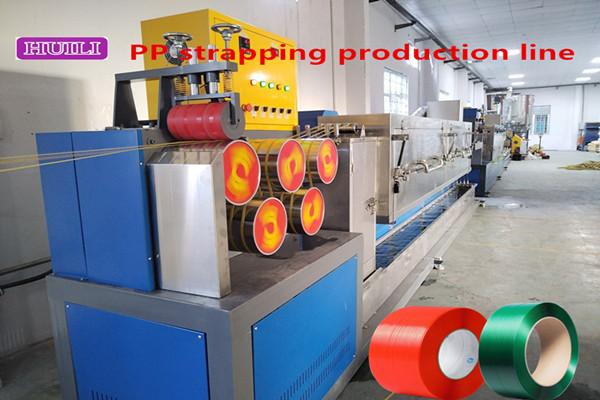

PP strapping production line
PP packing strap making machine uses high-quality imported components and torque motor-controlled winding machines to produce PP strapping straps with a small error range. It is carefully designed to work seamlessly with fully automatic strapping machines.
Line speed ----- speed 200-300m/min.
Width---------- 5-19mm
Screw--------
The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping tape acceptance standards;
EXTRUSION PARAMETERS TABEL
| Model | PP-2 | PP-4 | PP-6 | PP-8 | PP-10 | PP-12 |
| Raw material | PP polypropylene new material/recycled material | |||||
| Number of tapes | 2 | 4 | 6 | 8 | 10 | 12 |
| Width(mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
| Thickness(mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
| Line speed(m/min) | ≧260-300 | |||||
| PLC control system | PLC | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 110 | 125 | 135 | 135 | 135 |
| Reducer model | 200 | 220 | 250 | 280 | 280 | 280 |
| Drying barrel (kg) | 100 | 150 | 200 | 200 | 200 | 200 |
| Winding machine | Automatic winding machine /Semi-automatic winding machine | |||||
| Screen Changer | Automatic/Manua | |||||
| Production capacity 24H | 2.5-3T | 6-7T | 8-9T | 10-11T | 12-13T | 13--14T |
Embossing wheel:
High-precision embossing wheel with clear embossing and adjustable pressure, making the strapping more aesthetically pleasing.
Material: SKD-11
Application Industry
Logistics industry--------PP strapping belt can ensure the secure bundling of cartons, wooden boxes, pallets and other items, ensuring that your goods remain safe during transportation.
Fruit industry----------PP strapping belt can ensure that fruit cartons, fruit plastic baskets, etc. are firmly bundled to ensure transportation safety.
PP strapping belt is suitable for baling machines:
Fully automatic strapping machine
Semi-automatic strapping machine
High-speed ultra-thin strapping machine
Handheld electric strapping machine
Manual strapping machine (iron buckle)
FAQ:
Q:What is the voltage of PP strapping belt production line?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping belt?
A: L:36 M.
Q:Where is the PP strapping belt production line?
A:We are from China.
Q:Can PP strapping belt production line provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping belt production line?
A:We have 30 years of manufacturing experience, and have their own PP strapping belt production line plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping belt production line customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP strapping belt production line look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
