T9-L1390S Acrylic CO2 Laser Cutting Machine
The TEMEi T9-L1390S is a CO₂ laser cutting machine with a 1300×900 mm working area, ball-screw transmission, and optionally, an integrated CCD edge-tracing camera for printed-pattern alignment. Available laser power tiers range from 130W to 450W (the most common configuration is 300W.) Typical applications include acrylic signage, leather, printed fabric, MDF, and other non-metal materials.

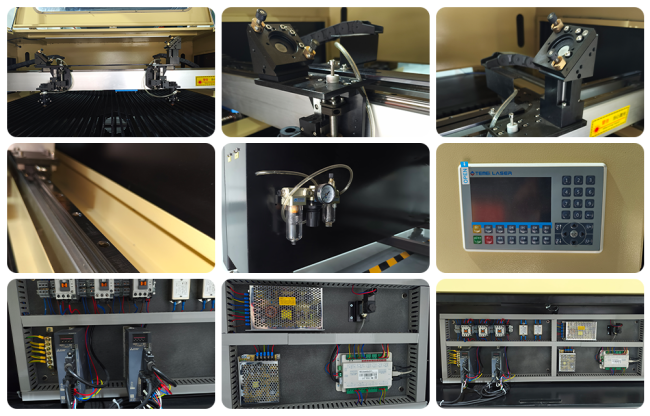

The Temei laser cutting machine integrates high-precision PMI linear guiderails, TBI ball screw transmission, and a Japanese Mitsubishi servo motor drive system to ensure stable accuracy during continuous operation.
| Material thickness | Processing speed (mm/s) | Processing power |
|---|---|---|
| 1mm | 60-70 | 35-40 |
| 3mm | 50-60 | 50-60 |
| 5mm | 35-40 | 60-65 |
| 8mm | 17-23 | 60-65 |
| 10mm | 12-17 | 60-65 |
| 12mm | 10-14 | 65-70 |
| 15mm | 6-8 | 65-70 |
| 20mm | 2.5-4 | 65-70 |
| 30mm | 1.4-1.8 | 65-70 |
The above parameters are for reference only. The cutting effect will be affected by the quality of the material. Please adjust the power and speed according to the actual situation.
|
Name |
CO2 laser cutting machine |
|
Model |
T9-L1390S |
|
Working Size |
1300x900mm |
|
Laser Source |
CO2 Laser Tube |
|
Laser Power |
130W/150W/180W/200W/300W/450W |
|
Cooling Method |
S&A CW-5200/6000/6200 Chiller |
|
Drive System |
Mitsubishi Servo Driver & Motor from Japan |
|
Transmission System |
TBI Ball Screw & PMI Linear Guiderail from Taiwan |
|
Control System |
Ruida RDC6442/RDV6445 |
|
CCD edge patrol cutting function: |
Optional Add-On |
|
Double cutting head |
Optional Add-On |
|
Positioning Accuracy |
0.02mm |
|
Repet.Positioning Accuracy |
0.01mm |
|
Max.Speed |
≤40m/min |
|
Max.Cutting Thickness |
30mm (acrylic,plywood,rubber,MDF) |
|
Working table |
Blade platform / Cellular platorm (optional) |
|
Red-dot Positioning |
Yes |
|
Auxiliary Equipment |
Air pump,Centrifugal fans(1.1kw) |
|
Power supply |
220V,50/60Hz |
|
File format |
DXF, PLT, AI, DST, DSB |
|
Dimensions |
1750x1650x1150 mm |
|
Net Weight |
500kg |
|
Application Materials |
Fabric,Leather,Acrylic,Paper,Wood,Bamboo,Ceramic, Rubber,Sponge,Plastic,etc. |
Packing and Shipping:
Product Packaging for 1390 Co2 Laser Cutting Machine:
The 1390 Co2 Laser Cutting Machine is carefully packaged in a sturdy wooden crate to ensure safe transportation and delivery.
Shipping Information:
Once the order is processed, the product will be shipped via a reliable courier service with tracking information provided to the customer.
FAQ:
Q: What materials can the 1390 Co2 Laser Cutting Machine cut?
A: The 1390 Co2 Laser Cutting Machine can cut materials such as acrylic, wood, leather, fabric, paper, and more.
Q: What is the maximum cutting thickness of the 1390 Co2 Laser Cutting Machine?
A: The maximum cutting thickness of the 1390 Co2 Laser Cutting Machine is typically up to X mm, depending on the material being cut.
Q: Does the 1390 Co2 Laser Cutting Machine come with software for designing and controlling the cutting process?
A: Yes, the 1390 Co2 Laser Cutting Machine usually comes with software that allows you to design and control the cutting process.
Q: What is the maximum working area of the 1390 Co2 Laser Cutting Machine?
A: The 1390 Co2 Laser Cutting Machine usually offers a maximum working area of X mm x Y mm.
Q: Is the 1390 Co2 Laser Cutting Machine easy to set up and operate?
A: Yes, the 1390 Co2 Laser Cutting Machine is designed for user-friendly setup and operation, making it easy to use even for beginners.
