Sturdy 3000w Fiber Laser Cutter Laser Metal Sheet Cutting Machine 3015

Name: Sturdy 3000w Fiber Laser Cutter Laser Metal Sheet Cutting Machine 3015
Brand: Shenzhen Temei Machinery Equipment Co., Ltd.

Price Negotiable

Price: 13400~18800usd

MOQ: 1

Delivery Time: 3~7day

Brand: Temei

Product Description

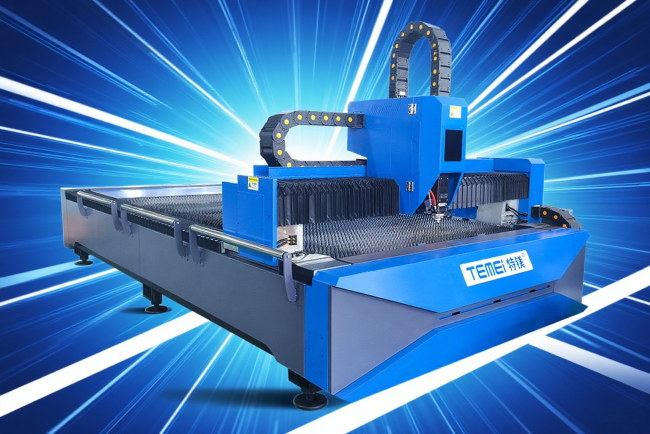

The Temei 3015 high-performance fiber laser cutting system, available in power options of 1000 w, 1500 w, 3000 w, 4000 w, and 6000 w, marks a groundbreaking leap in laser cutting tech. As a fully integrated solution, it reshapes standards for efficiency and adaptability by combining key components—including the main machine body, electrical cabinet, control module, air compression device, laser emitter, and water-based cooling system—into one unified structure. This integration not only maximizes the use of workshop area but also boosts the equipment’s overall operational efficiency to a great extent.

One of the notable traits of this laser cutting system is its open structural design, which allows for seamless material loading and unloading procedures, thereby streamlining the entire operational workflow. Despite its compact size that saves valuable space, the system maintains excellent cost-effectiveness without compromising on its cutting performance.

Equipped with a single working platform, this laser cutting system delivers exceptional cutting performance, guaranteeing high precision and accuracy when processing different types of materials. Whether handling carbon steel, stainless steel, or other metallic materials, it provides unmatched working efficiency and dependability. For this reason, it serves as a perfect choice for meeting the demands of contemporary manufacturing settings.

Offer free sample service

Exhibition and Factory Tour

Configuration and Parameters

Name	Fiber Laser Cutting Machine
Model	TM-FL1530
Working Size	1500x3000mm

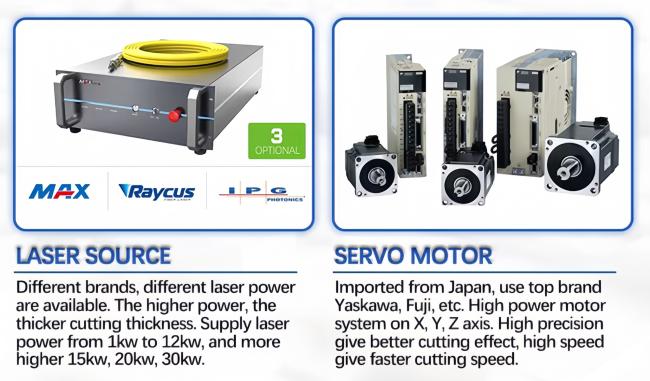

Laser Source	Fiber laser (MAX/Raycus)
Laser Power	1KW-6KW
Laser Head	A CΛTTER with autofocus function

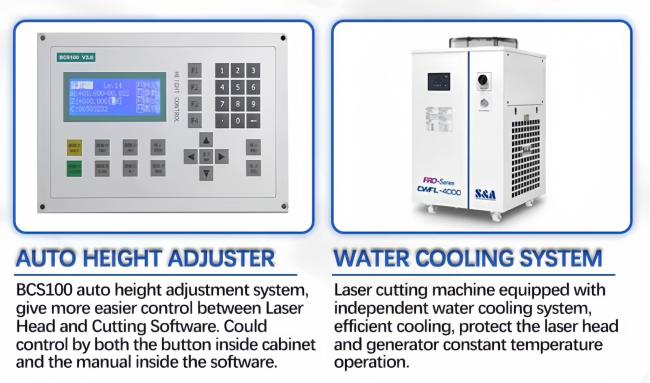

Cooling System	S&A Industrial Water Chiller
Drive System	Gantry dual-drive

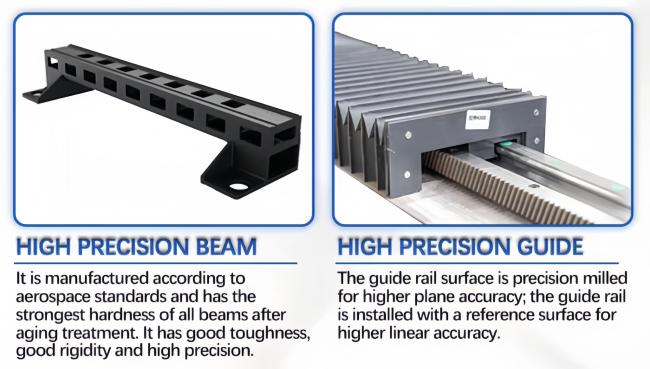

Transmission System	High precision grinding rack gear
Reducer	Shimpo Reducer from Japan
Control System	CypCut
Positioning Accuracy	0.02mm
Cutting Speed	0-80m/min
Max.Cutting Thickness	30mm carbon steel
Maximum Acceleration	0.6G
Auxiliary Gas	Oxigen,Nitrogen,Compressed air
Power supply	220V,50/60Hz
File format	DXF, PLT, AI, DST, DSB
Dimensions	4600x2300x2000mm
Net Weight	2500kgs
Application Materials	carbon steel,stainless steel,aluminum,brass,copper etc.

Technical Support & After-Sales Service

To guarantee the smooth operation and upkeep of your equipment, Temei provides all-around technical support and related services for its products. Our professional team is made up of seasoned technicians and engineers, all committed to offering prompt help and professional guidance whenever you encounter technical problems or have questions about the equipment.

Product Packaging

We take meticulous care in packaging our Fiber Laser Cutting Machine to make sure it reaches you safely. Every machine is tightly wrapped and cushioned with foam to keep it from getting damaged while being transported. Moreover, each machine is placed inside a robust wooden case to add an extra layer of protection.

Shipping Services

When it comes to shipping, we collaborate with trustworthy courier companies to deliver the machine directly to your location on time. We also provide you with shipment tracking details, so you can keep an eye on where your order is at any time. You can feel confident that your Fiber Laser Cutting Machine will be handled gently throughout the entire shipping process.

FAQ

Q1: What kinds of materials can the Fiber Laser Cutting Machine cut through?

A1: This Fiber Laser Cutting Machine is applicable for cutting a range of materials, like different types of metals (such as stainless steel, aluminum, and copper), plastic materials, and certain ceramic products.

Q2: What’s the thickest material that the Fiber Laser Cutting Machine can cut?

A2: Generally, the Fiber Laser Cutting Machine is capable of cutting metal sheets with a thickness of up to 25mm. However, this may vary depending on the specific model of the machine and the power of its laser.

Q3: How accurate is the Fiber Laser Cutting Machine when it comes to cutting?

A3: The Fiber Laser Cutting Machine delivers high-precision cutting performance, with a tolerance range as narrow as +/- 0.1mm. This ensures that every cut is both accurate and neat.

Q4: Is there any special maintenance required for the Fiber Laser Cutting Machine?

A4: To maintain the machine’s efficient operation and extend its service life, we suggest carrying out regular maintenance tasks. These include cleaning the machine’s lenses, checking the alignment of its components, and making sure the ventilation system works properly.

Q5: Can the Fiber Laser Cutting Machine be connected with CAD/CAM software?

A5: Absolutely. The Fiber Laser Cutting Machine works well with a variety of CAD/CAM software programs. This enables you to easily import your designed files and achieve precise cutting results based on your digital designs.

Get in Touch

Have questions about our products or want to discuss a custom order? Our team is ready to help you.

Company Shenzhen Temei Machinery Equipment Co., Ltd.

Location Room 601, Building 5, Lianjian Optoelectronics Technology Park, No. 5 Tong'an Road, Xiqu District, Dayawan Economic and Technological Development Zone, Huizhou City

Contact Person liu

Request A Quote

Email Address *

Please check your email address.

Phone / WhatsApp

Your Message *

Your message must be at least 20 characters.

Sturdy 3000w Fiber Laser Cutter Laser Metal Sheet Cutting Machine 3015

Technical Support & After-Sales Service

Product Packaging

Shipping Services

FAQ

Q1: What kinds of materials can the Fiber Laser Cutting Machine cut through?

Q2: What’s the thickest material that the Fiber Laser Cutting Machine can cut?

Q3: How accurate is the Fiber Laser Cutting Machine when it comes to cutting?

Q4: Is there any special maintenance required for the Fiber Laser Cutting Machine?

Q5: Can the Fiber Laser Cutting Machine be connected with CAD/CAM software?
