3kW CNC Fiber Laser 3015 Single Platform Metal Sheet Cutting Machine

Price Negotiable
Price: 13400~18800usd
MOQ: 1
Delivery Time: 3~7day
Brand: Temei
Product Description

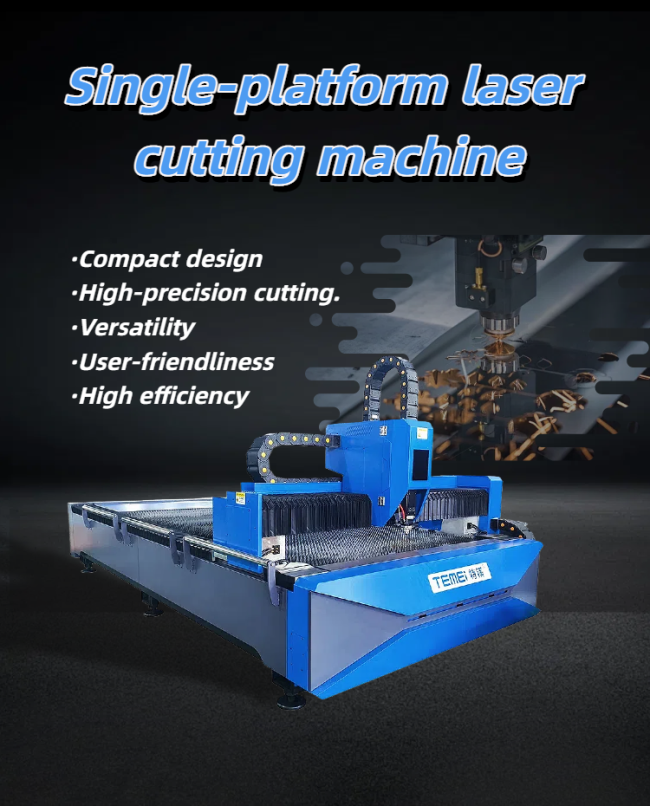

The Temei 3015 high-performance fiber laser cutting system, available in power options of 1000 w, 1500 w, 3000 w, 4000 w, and 6000 w, marks a groundbreaking leap in laser cutting industry. As a fully integrated solution, it reshapes standards for efficiency and adaptability by combining key components—including the main machine body, electrical cabinet, control module, air compression device, laser emitter, and water-based cooling system—into one unified structure. This integration not only maximizes the use of workshop area but also boosts the equipment’s overall operational efficiency to a great extent.


One of the notable traits of this laser cutting system is its open structural design, which allows for seamless material loading and unloading procedures, thereby streamlining the entire operational workflow. Despite its compact size that saves valuable space, the system maintains excellent cost-effectiveness without compromising on its cutting performance.


Equipped with a single working platform, this cutter delivers exceptional cutting performance, guaranteeing high precision and accuracy when processing different materials. Whether handling carbon steel, stainless steel, or other metal types, it maintains top-tier efficiency and dependability—making it a standout choice for contemporary manufacturing facilities.






Offer free sample service

Configuration and Parameters

 Name

Fiber Laser Cutting Machine

 Model

TM-FL1530

Working Size

1500x3000mm

Laser Source

Fiber laser (MAX/Raycus)

Laser Power

1KW-6KW

 Laser Head

A CΛTTER with autofocus function

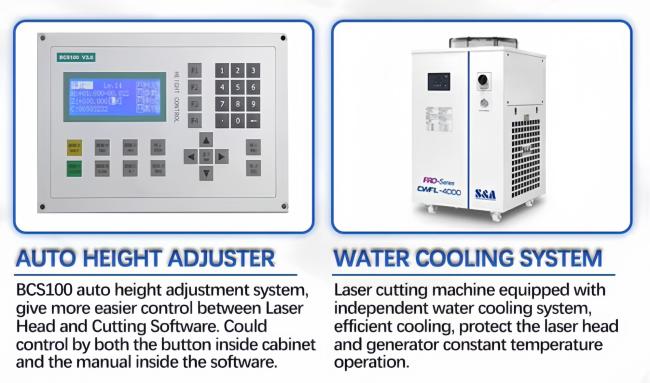

 Cooling System

S&A Industrial Water Chiller

Drive System

Gantry dual-drive

Transmission System

High precision grinding rack gear

Reducer

Shimpo Reducer from Japan

Control System

CypCut

Positioning Accuracy

0.02mm

Cutting Speed

0-80m/min

Max.Cutting Thickness

30mm carbon steel

 Maximum Acceleration

0.6G

 Auxiliary Gas

Oxigen,Nitrogen,Compressed air

Power supply

220V,50/60Hz

File format

DXF, PLT, AI, DST, DSB

Dimensions

4600x2300x2000mm

Net Weight

2500kgs

Application Materials

carbon steel,stainless steel,aluminum,brass,copper etc.

Exhibition and Factory Tour

Technical Support & After-Sales Service

To guarantee the smooth operation and upkeep of your equipment, Temei provides all-around technical support and related services for its products. Our professional team is made up of seasoned technicians and engineers, all committed to offering prompt help and professional guidance whenever you encounter technical problems or have questions about the equipment.

Support and Services
We provide comprehensive technical support and after-sales services for our products. This is to ensure that the product works at its best performance and meets what customers need. We have a professional team of experts who can help with installing the machine,doing maintenance work, fixing problems and providing training for using the machine. In addition, we will notify when there are software updates and provide technical documents. These can improve the user experience and solve most possible problems that may happen.

FAQ

Q1 How can I get the most suitable machine and the best price
A1 You can tell us about the materials you need to process and give detailed descriptions of your work through pictures or videos. This way we can clearly understand exactly what you require. Based on our experience we will provide you with the most suitable machine model.

Q2 What is the warranty service for the machine
A2 We will provide a one-year warranty service. If the machine has problems within the warranty period we will provide free replacement parts. If

you encounter any issues please let us know at any time and we will give you the best solution.

Q3: How accurate is the Fiber Laser Cutting Machine when it comes to cutting?
A3: The Fiber Laser Cutting Machine delivers high-precision cutting performance, with a tolerance range as narrow as +/- 0.1mm. This ensures that every cut is both accurate and neat.
Q4: Is there any special maintenance required for the Fiber Laser Cutting Machine?
A4: To maintain the machine’s efficient operation and extend its service life, we suggest carrying out regular maintenance tasks. These include cleaning the machine’s lenses, checking the alignment of its components, and making sure the ventilation system works properly.
