Rubber Wheel Rail Guided Transfer Cart on Steel Bar Agv
1.Product Description
The Rubber Wheel Rail Guided Transfer Cart for Steel Bar AGV is a specialized automated guided vehicle (AGV) designed for handling and transporting steel bars or other long, heavy materials in industrial settings. It combines the flexibility of rubber tires with the precision of a physical guide path (such as a magnetic tape or embedded rail) to navigate factory floors. This system is particularly effective in steel warehouses, fabrication shops, and construction material yards, where it automates the movement of heavy bar stock, enhancing logistics efficiency, reducing manual labor, and ensuring precise positioning for downstream processing.

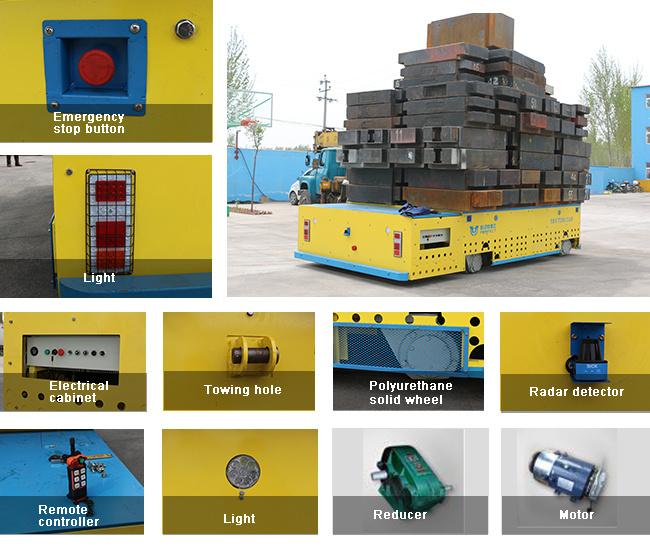

2.Detailed Photos
3.Product Parameters
| Model | BWP-5t | BWP-10 | BWP-15 | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Structure of Frame | Steel plates welded, beam structure | ||||||
| Thickness of the steel plate | 8 | 10 | 12 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 4.6 | 4.3 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 3600*2000 | 4000*2200 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||||
| Control method for turning | Control button | ||||||
| Turning structure | Mechanical | ||||||
| Motor power (KW) | 3 | 4.4 | 6 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 350-2/220-2 | 350-2/240-2 | 400-2/240-2 | 400-2/320-2 | 540-2/360 | 580-2/360-2 | 580-2/360-2 |
| Wheel material | ZG55+hydropurture | ||||||
| Running speed (m/min) | 0-20 | ||||||
| Brake principle | Electric magnetic brake | ||||||
| Ground balance | mechanical automatic adjustment | ||||||
| Operation method | With wire or no wire | ||||||
| Battery model | D-250 24pieces | D-330 24pieces | D-400 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||||
| Charger's installation | Installed on cart | Split-type | |||||
| Cart color | Yellow and warning sign | ||||||
| Charger's function | Automatic stop for obstacles | ||||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||||
| Warning equipment | Sound and light | ||||||
| Other functions | Turning light, night light and power display | ||||||
Remark: The product parameters are for your reference, all parts can be customized according to your requirements.
4.Packaging & Shipping
5.Customers' Visit
Henan PETTER Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of Flat Transfer Trolley to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.
6.FAQ
1. Q: What is the size and load of this Rail Coil Transfer Car?
A:The size and load of our this rail coil transfer car is customized design according to your requirement.
2. Q: How do you transport the Rail Coil Transfer Car and what is the package ?
A: For the big part, we will pack the rail coil transfer car with tarpaulin and wood pallet on the bottom of the rail coil transfer car to prevent it from moving. For the small part, we will pack it in wood case.
3. Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days, for some special rail coil transfer car, such as rail coil transfer car, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
4. Q: What is your MOQ?
A: At present, our MOQ is 1 set.
5. Q:Can choose the power supply?
A:Yes,such as the cable drum, rail powered, busbar powered ,trailing cable powered, etc.
