China Supplier Steel Table Rail Transfer Cart for Heavy Loads Movement

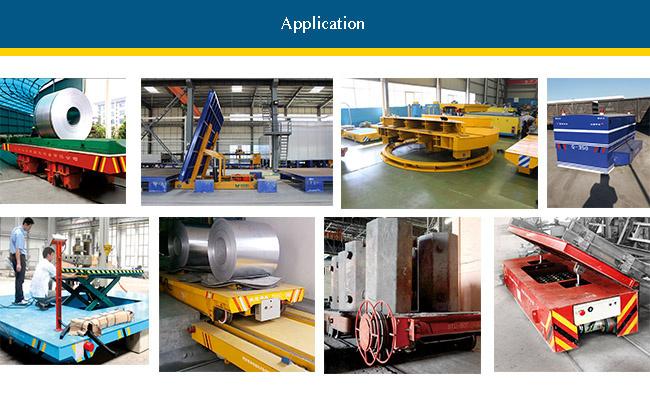

This robust rail transfer cart is engineered for extreme heavy-load applications in industries like steel, metallurgy, and heavy machinery. Its box-girder composite structure and multi-axle balancing system enable stable transport of hundreds of tons of coils, molds, or oversized equipment along fixed tracks.

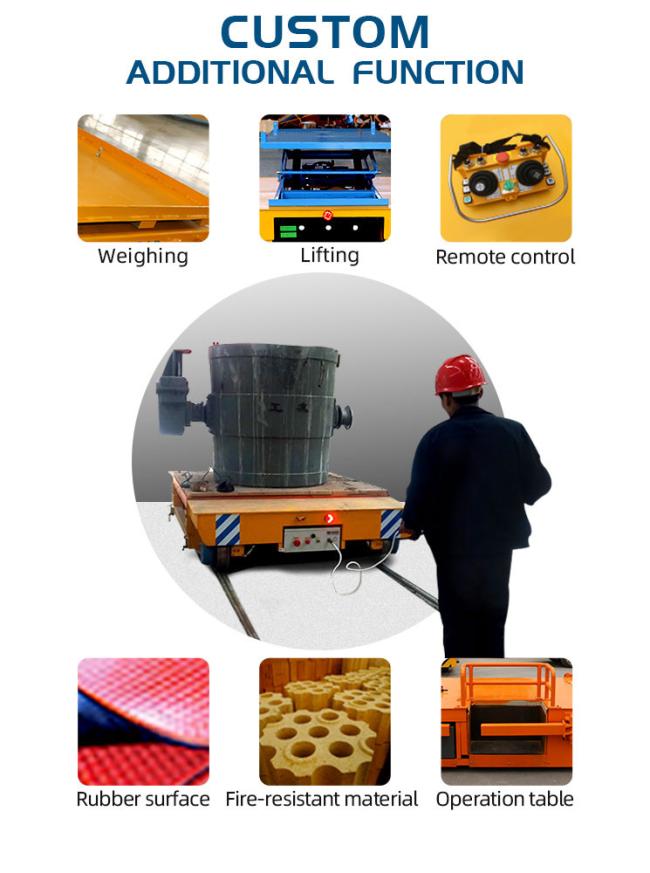

Equipped with high-torque electric drives and intelligent controls, it offers stepless speed adjustment, millimeter-level positioning, and remote operation. The platform can be customized as flat decks, V-cradles, or hydraulic lifting tables, with integrated safety features. Renowned for durability and adaptability, this cart serves as a cornerstone of efficient and safe logistics in modern heavy industrial facilities.
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 | |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
