Hot Selling Wagon Heavy Duty 30t Scissor Lift Transfer Cart
Price:
US$3000-3500
MOQ:
1 Piece
Delivery Time:
15-30 days
Brand:
BETTER
Product Description
Hot Selling Wagon Heavy Duty 30t Scissor Lift Transfer Cart
![Hot Selling Wagon Heavy Duty 30t Scissor Lift Transfer Cart]()

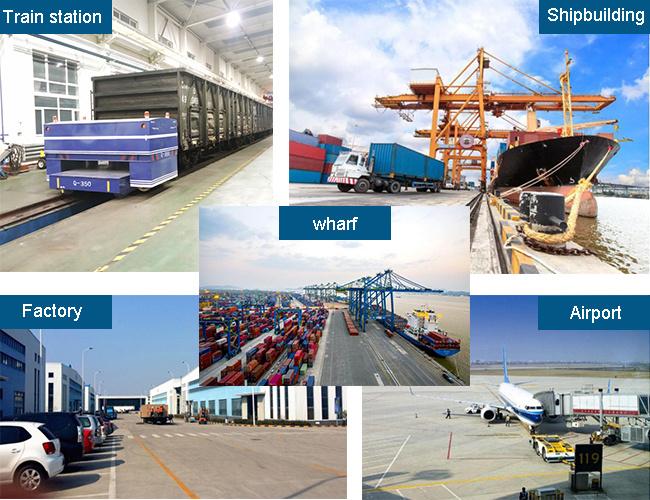

Application of Transfer Trolley
![]()
Customized of Transfer Trolley
The material handling vehicle can be designed to travel on steel rail bars or they can be operated directly on the floor of your facility
1Ton to 300 Ton capacity range
Push and Pull operation or completely motorized
Full steer-ability or controlled direction of motion
Custom shaped table size to suit your application
Lifting fixtures available for simple transportation
Fully automated controls, wireless control system, or a fixed pendant
![Hot Selling Wagon Heavy Duty 30t Scissor Lift Transfer Cart]()
Other Products
Henan BETTER Handling Equipment Co., Ltd. is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items. We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.
![Hot Selling Wagon Heavy Duty 30t Scissor Lift Transfer Cart]()
Customer Visit
Our products are sold at home and abroad and we cordially welcome inland and overseas guests to contract and hold purchasing talks with us.
![Hot Selling Wagon Heavy Duty 30t Scissor Lift Transfer Cart]()
Packaging & Shipping
![Hot Selling Wagon Heavy Duty 30t Scissor Lift Transfer Cart]()
Introduction of Transfer Trolley
The line of BETTER Hydraulic Lifting Transfer Trolley includes both "scissor" and "direct lift" designs to meet a wide range of handling requirements of our clients.
As with all BETTER products, our Hydraulic Lifting Transfer Trolley are designed to meet the specific requirements of each application. The height of our scissor lift tables ranges from 8" to 24" depending on the size and load capacity requirements. And depending of the lift requirements of the unit, the table would be equipped with a single, double or triple arm arrangement.
As with all BETTER products, our Hydraulic Lifting Transfer Trolley are designed to meet the specific requirements of each application. The height of our scissor lift tables ranges from 8" to 24" depending on the size and load capacity requirements. And depending of the lift requirements of the unit, the table would be equipped with a single, double or triple arm arrangement.
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Application of Transfer Trolley
BETTER Hydraulic Lifting Table are operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cart in the world for moving heavy duty materials and equipments inside and outside the plant by electric traction and driving long distances. And also Hydraulic Lifting Table are mainly used to solve manoeuvrability problems in tight spaces.
Customized of Transfer Trolley
The material handling vehicle can be designed to travel on steel rail bars or they can be operated directly on the floor of your facility
1Ton to 300 Ton capacity range
Push and Pull operation or completely motorized
Full steer-ability or controlled direction of motion
Custom shaped table size to suit your application
Lifting fixtures available for simple transportation
Fully automated controls, wireless control system, or a fixed pendant
Other Products
Henan BETTER Handling Equipment Co., Ltd. is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items. We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.
Customer Visit
Our products are sold at home and abroad and we cordially welcome inland and overseas guests to contract and hold purchasing talks with us.
Packaging & Shipping
