Motorized 10Ton Rail Transfer Cart for Heavy Duty Material Transport in Industrial Environments
Price:
US$3000-3500
MOQ:
1 Piece
Delivery Time:
15-30 days
Brand:
BETTER
Product Description

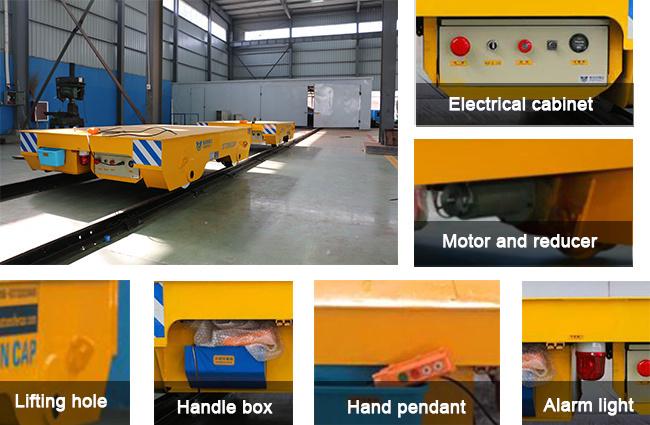

Motorized 10Ton Rail Transfer Cart for Heavy Duty Material Transport in Industrial Environments
1. Introduction
The Motorized 10-Ton Rail Transfer Cart is a robust and efficient electric vehicle designed for heavy-duty material transport in demanding industrial environments. It operates on fixed rail systems to reliably move substantial loads—such as raw materials, machinery parts, or finished goods—between workshops, assembly lines, and storage areas. Powered by an electric drive system, it ensures clean, quiet, and low-maintenance operation. This cart enhances logistical workflow by providing stable and continuous transport, minimizing manual handling, improving safety, and supporting productivity in settings like manufacturing plants, warehouses, and heavy equipment facilities.
3. Application
Uses of Material Transfer Cart:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
4. Applicable sites of pipe rail conveying system
5. Parameter
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 | |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
6. Power supply mode
The motorized material handling equipment manufactured by Henan better Handling Company can be designed with different power supply mode, which include storage battery, cable, conductive rails, and so on. According to customers' different application environment, we would recommend the best suitable transfer solution with different power supply mode:
Storage Battery Powered Transfer carts: This kind motorized transfer carts powered by battery is suitable for long running distance, low using frequency, "S" "L" and curved tracks, anti-explosion and ferry occasion.
Cable reel powered transfer cart on rails: This kind electric flat transfer carts powered by cable is most used in occasion with high using frequency, short running distance, straight direction route.
Conductive track powered motorized transport trolleys: This kind material automated transport trolleys get power from the conductive tracks installed on the floor. These transport trolleys are suitable for high using frequency and large loading capacity. It has strict requirements about the track installation which need to be insulated.
Steerable transfer carts: These steerable transfer carts apply to multidirectional heavy duty transportation on cement floor and steel plate with rotation required. They can turn freely in 360°degree to change the moving direction. So they are powered by battery which won't be affected by the trailing cable during running in small or limited space.
Storage Battery Powered Transfer carts: This kind motorized transfer carts powered by battery is suitable for long running distance, low using frequency, "S" "L" and curved tracks, anti-explosion and ferry occasion.
Cable reel powered transfer cart on rails: This kind electric flat transfer carts powered by cable is most used in occasion with high using frequency, short running distance, straight direction route.
Conductive track powered motorized transport trolleys: This kind material automated transport trolleys get power from the conductive tracks installed on the floor. These transport trolleys are suitable for high using frequency and large loading capacity. It has strict requirements about the track installation which need to be insulated.
Steerable transfer carts: These steerable transfer carts apply to multidirectional heavy duty transportation on cement floor and steel plate with rotation required. They can turn freely in 360°degree to change the moving direction. So they are powered by battery which won't be affected by the trailing cable during running in small or limited space.
7. Our Factory and Customers' visit
8. Q&A
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
If you have any question please feel free to contact us . Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
