Automated Guided Vehicle Heavy Load Transport Platform Operating on Floor Mounted Rails for Manufacturing and Industrial
Price:
US$3000-3500
MOQ:
1 Piece
Delivery Time:
15-25 days
Brand:
BETTER
Product Description
Automated Guided Vehicle Heavy Load Transport Platform
Rail-mounted automatic guided transport vehicle designed for high-frequency, high-precision transportation of heavy materials along fixed paths in manufacturing factories, assembly workshops, and warehousing centers.
Core Parameter Configuration
- Load Capacity: Standard models from 5 to 300 tons with custom higher capacities available
- Guidance Method: Ground pre-buried steel rails or I-beam tracks for precise driving paths
- Drive & Power Supply: AC motor drive with optional safety sliding contact line or supercapacitor/battery power
- Control System: On-board PLC controller supporting automatic operation, manual control, and remote call
- Positioning Accuracy: ±5mm stop position accuracy for precise equipment connection
- Vehicle Structure: Modular heavy-duty steel with sandblasting and anti-corrosion coating
Customized Transport Solutions
Transfer Cart Types
- Rail transfer cart
- Trackless transfer car
- Battery operated self-propelled transport platform
- Coils cart
- Ladle transfer cart
- Hydraulic scissors lift table cart
Industrial Trailers
- Flatbed trailer
- Factory trailer
- Utility trailer
- Workshop transfer trailer
- Airport baggage cargo trailer
- Car transport trailer
- Motorized transfer trailer
Cargo Transportation
- Die cart
- Coils transport cart
- Pipes transfer carriage
- Steel beam transporter
- Aluminum plate transport vehicle
- Transformer carrier bogie
Special Handling Equipment
- Ladle transfer trolley
- Ferry transfer wagon
- Cross-rail transport equipment
- Motorized turntable
- Vacuum furnace transfer cart
- Automatic vehicle

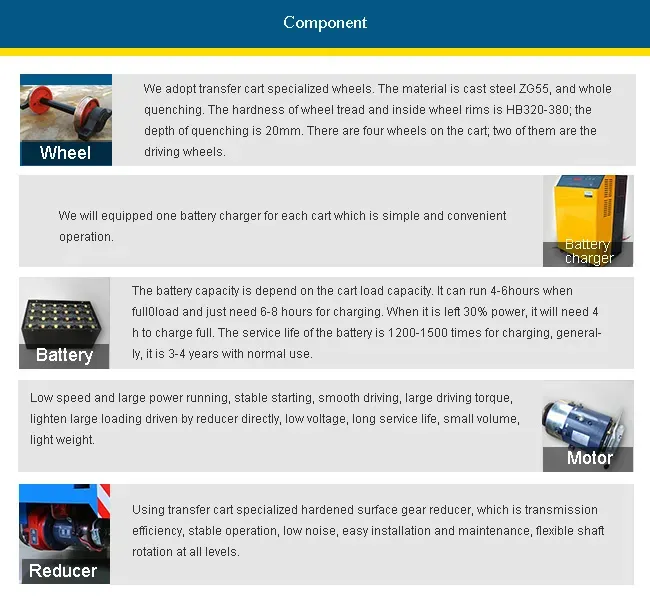

Core Functions & Components
Operational Features
- Fully automatic track-following operation with preset stations
- Precise site docking via encoders or radio frequency identification
- High-reliability design with simple, sturdy mechanical structure
- Multi-vehicle dispatching and evasive maneuvers in networked systems
Safety Configuration
- Front obstacle detection with laser or physical anti-collision strips
- Sound and light warning system during operation
- Emergency stop button and remote emergency stop capability
- Anti-derailment design with wheel flange and guard rails
Customization Options
- Platform integration with lifting platforms, rotating platforms, and roller lines
- Complex track layouts including straight lines, curves, turntables, and turnouts
Product Specifications
| Model | AGV-5T | AGV-20T | AGV-30T | AGV-40T |
|---|---|---|---|---|
| Carrier Type | Backpack | Backpack | Backpack | Backpack |
| Dimensions (mm) | 3200L×2000W×800H | 4000L×2000W×800H | 3500L×2200W×800H | 5200L×2000W×800H |
| Load Capacity | 5,000KG | 20,000KG | 30,000KG | 40,000KG |
| Navigation | Magnetic Stripe | Magnetic Stripe | Magnetic Navigation | Magnetic Stripe |
| Operating Speed | 20m/min | 20m/min | 20m/min | 20m/min |
| Stop Accuracy | ±10mm | ±10mm | ±10mm | ±10mm |
| Power Supply | Battery | Battery | Automatic/Manual Charging | Battery |

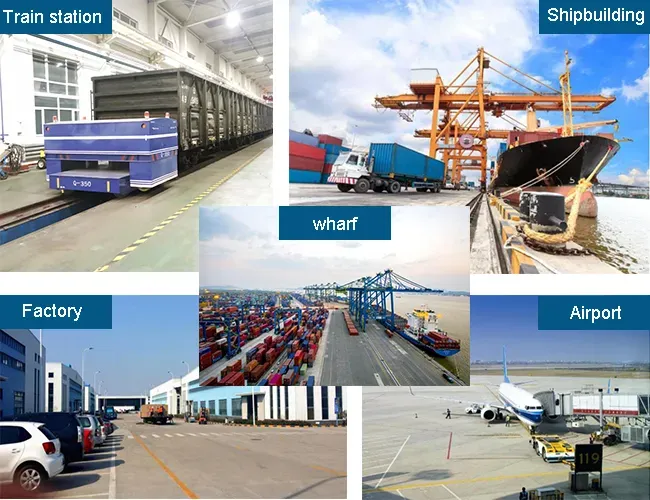

Applications
Ideal for industrial scenarios with heavy material flow requirements on fixed routes including manufacturing, heavy equipment assembly, and warehousing logistics.
Industry Applications
- Manufacturing: Automatic transfer of vehicle bodies, molds, and components between processes
- Heavy Equipment: Transporting engines, gearboxes, and structural components
- Warehousing: Automatic transportation between raw material warehouses and production lines
Our transport platforms serve multiple industries including metallurgy, manufacturing, oil and gas, die shops, shipyards, automotive, aerospace, power generation, and more.
Key Advantages
- Low Noise: Operates with minimal noise levels
- Maximum Safety: Comprehensive safety features for operators and materials
- Easy Operation: Simple to drive with comprehensive support
- Easy Implementation: Operates on standard floors without complex installation
- Versatile Capacity: Handles both small and extremely large loads up to 300 tons

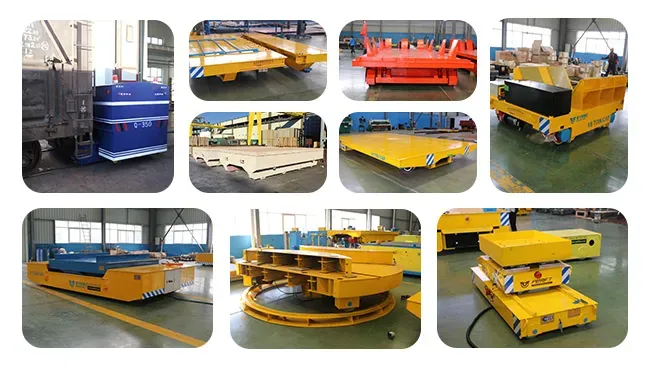

Our Manufacturing Facility
Frequently Asked Questions
What Are The Advantages of Using a Transfer Cart?
Transfer carts offer excellent affordability for heavy loads, compact design for limited spaces, and customizable decks for specific applications.
Product Handling Applications
- Coils (V-Groove deck)
- Tanks (size/stability for uniformly distributed loads)
- Assemblies (fixture cradle) for complete builds or partial products
- Sub-assembly shuttle between production lines
- Maintenance cart for motors and pumps
- Equipment support for navigating loads within facilities
- Material shuttle for steel tubing with guard rails
- Elevating platform for assembly processes
- Sand casting applications
