Automatic Control Battery Powered Industrial Turnplate For Conveyor System
Price:
US$3000-3500
MOQ:
1 Piece
Delivery Time:
15-25 days
Brand:
BETTER
Product Description
Automatic Control Battery Powered Industrial Turnplate For Conveyor System
1. The introduction of Heavy Transfer Traverser
This is an intelligent and flexible equipment for changing direction and docking designed for modern automatic conveying systems. It integrates battery power supply, automatic control, and precise rotation, and can be seamlessly integrated into conveyor lines, chain plate lines, AGV networks, etc. as a "crossroads" for material flow, achieving fully automatic and high-precision diversion, convergence, and 90°/180° turning of workpieces, pallets, or carriers in multiple directions, significantly enhancing the flexibility and space utilization of the system.
Core configuration

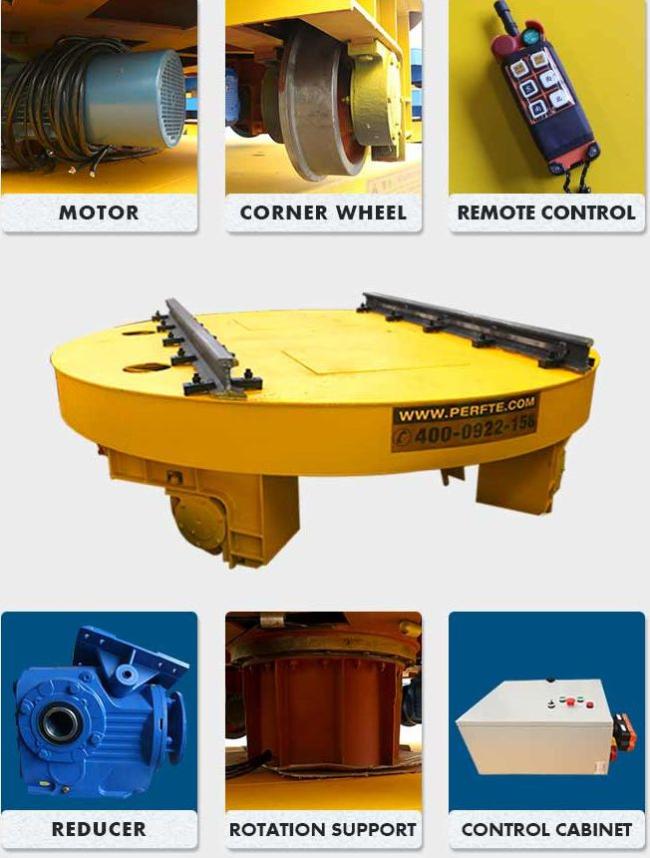

Drive and Power Supply: Servo motor drive, equipped with high-precision swivel bearings; Built-in lithium battery pack, eliminating the limitation of fixed power wiring.
Load-bearing capacity: The standard model covers from 1 ton to 10 tons.
Control method: Integrated PLC and communication module, supporting I/O signal triggering, bus communication (Profinet/Ethernet IP) and wireless command control.
Positioning accuracy: Utilizing servo closed-loop control, the stop angle accuracy can reach ±0.1°.
Interface integration: The platform can integrate power rollers, chain plates or positioning devices, and smoothly connect with the upstream and downstream conveying lines
.![]()
2. Advantages of Heavy Transfer Traverser
Our turntable transfer traverser is custom-engineered and manufactured in different sizes based upon the application. Our turntable transfer traverser is extremely rugged, well balanced, and suitable for the diversified requirements of transit and freight maintenance shops.
With minimal routine maintenance needed, our turntable transfer traverser is known for their long-term reliability and safety. They are available to rotate a single truck in 90° increments and can be either manual or motorized in their operation.
With minimal routine maintenance needed, our turntable transfer traverser is known for their long-term reliability and safety. They are available to rotate a single truck in 90° increments and can be either manual or motorized in their operation.
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 | |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
3. Design Principle of Heavy Transfer Traverser
Our engineers spend the time asking the right questions to understand your unique turntable application. With thoughtful consideration to many factors of the working environment, we designs the equipment with a focus on easy maintainability to maximize equipment up time.
To reduce installation time and costs, turntables are assembled and tested in our factory before installing on site. With a full team of rail service technicians, and a full-service parts and engineering department, our company stands behind our product and is here for our clients over the lifetime of the equipment.
To reduce installation time and costs, turntables are assembled and tested in our factory before installing on site. With a full team of rail service technicians, and a full-service parts and engineering department, our company stands behind our product and is here for our clients over the lifetime of the equipment.
4. Customizable of Heavy Transfer Traverser
Mechanical Options Include:
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Floor Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Floor Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle

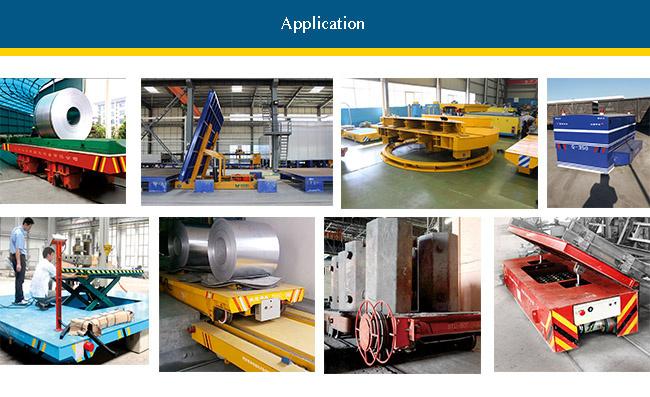

5. Application of Heavy Transfer Traverser

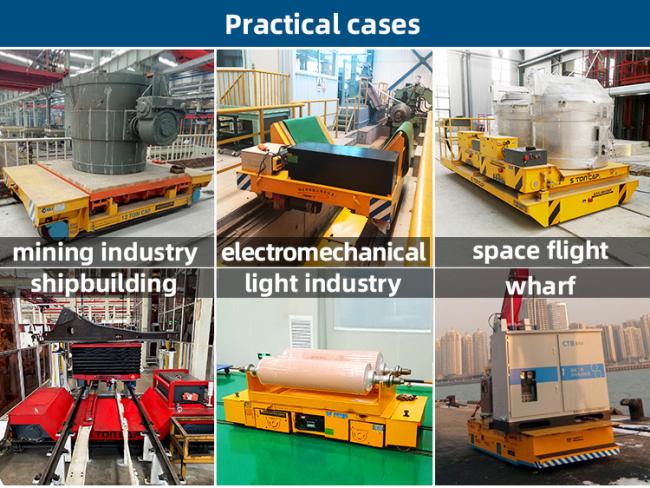

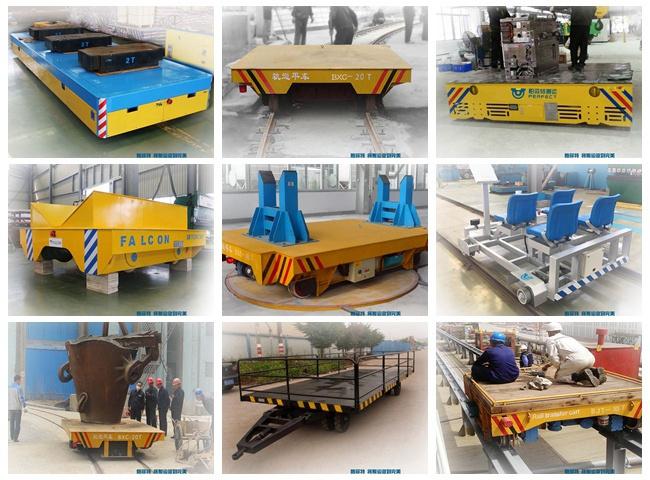

BETTER conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
6. Other Products We Can Offer
Every product is designed to meet the specific requirements of each client. Our special solution to the design of each product includes a detailed review of the client requirements, which is used to develop the Functional Specification of the product.
Working closely with you, we will incorporate our years of design experience into the final design of the product to assure complete customer satisfaction.
Contact our office with your specifications and requirements and we will be very pleased to provide you with a proposal.
Working closely with you, we will incorporate our years of design experience into the final design of the product to assure complete customer satisfaction.
Contact our office with your specifications and requirements and we will be very pleased to provide you with a proposal.
7. Packing and Shipping
*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
7. Q & A: How to choose?
Please provide the answers below:
-Load capacity?
-Table size? (Length; Width ; Height)
-What cargo do you use the cart to transfer?
-What is the travel area you need to cover? (Indoor/Outdoor, straight line travel, etc)
-How about the running distance?
-What type(s) of power supply are required?
-Do you need any special functions?
-Load capacity?
-Table size? (Length; Width ; Height)
-What cargo do you use the cart to transfer?
-What is the travel area you need to cover? (Indoor/Outdoor, straight line travel, etc)
-How about the running distance?
-What type(s) of power supply are required?
-Do you need any special functions?
