Track Maintenance Vehicles For Various Factories Are Directly Provided By The Supplier
Price:
US$3000-3500
MOQ:
1 Piece
Delivery Time:
15-25 days
Brand:
BETTER
Product Description
Track Maintenance Vehicles for Industrial Applications
We provide comprehensive track maintenance vehicle solutions for various industrial facilities including steel mills, ports, and heavy machinery manufacturing plants. Our specialized equipment ensures track smoothness and operational safety for rail transportation systems.
Vehicle Types & Functions
- Track Inspection Vehicle: Equipped with precision measuring instruments for detecting track gauge, level, height, and alignment parameters
- Track Maintenance Vehicle: Integrated with tool kits, welding equipment, and lifting devices for replacing sleepers, fasteners, and track repairs
- Track Cleaning Vehicle: Features brush discs and dust collection systems to remove dirt, slag, ice, and foreign substances from tracks
- Power Traction Vehicle: Designed for towing non-powered maintenance equipment or disabled vehicles
Core Operational Benefits
- Specialized Maintenance Operations: Addresses common track issues including subsidence, deformation, and foreign object encroachment
- Rapid Response Capability: Lightweight and flexible design enables quick deployment to any track failure point
- Main System Protection: Preventive maintenance and rapid repair reduce derailment risks for main transportation equipment
- Cost Efficiency: Extends major track repair cycles and minimizes production interruptions
Safety & Customization Features
Safety Configurations: Parking brakes, support devices, warning lights, signage, lighting systems, and horn devices with comprehensive safety warning systems.
Customization Options: Functional module combinations for inspection, cleaning, and repair; track gauge adaptations (1435mm, 762mm, etc.); environmental-specific designs for indoor, outdoor, and high-temperature applications.
Technical Specifications
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Industrial Applications
Suitable for all factory scenarios requiring material transport along fixed tracks:
- Steel Metallurgy: Maintenance of steel water tank trucks, slag tank trucks, and roller conveyor track systems
- Ports & Storage Yards: Maintenance of gantry crane and loading/unloading bridge tracks
- Heavy Manufacturing: Maintenance of heavy trolleys and gantry crane tracks in assembly workshops
- Power & Chemical Plants: Maintenance of dedicated tracks for heavy equipment and material transport
Manufacturing Process
- CNC Cutting: Steel plates transported from raw material warehouse to CNC cutting workshop
- Preliminary Assembly: Components assembled according to design specifications
- Welding: Automated welding using industrial welding machines
- Post-Weld Treatment: Testing, polishing, deburring, and stress elimination
- Primer Application: Zinc-rich epoxy anti-rust primer applied in two layers
- Final Assembly: Integration of wheels, motors, and gearbox components
- Finish Painting: Final coating application after primer inspection
- Testing & Debugging: Comprehensive testing including no-load and load-bearing performance verification
Customization Inquiry
For customized solutions, please provide the following information:
- Type and weight of materials to be transferred
- Maximum load capacity requirements
- Dimensional specifications (Length × Width × Height)
- Operational frequency and shift requirements
- Travel area specifications (rail type, indoor/outdoor, travel path)
- Distance coverage requirements
- Additional operational conditions or specifications
Product Advantages
- Low Noise Operation: Engineered for minimal noise emission
- Maximum Safety: Comprehensive safety features for operators and materials
- Easy Operation: User-friendly controls with immediate operational capability
- Process Integration: Compatible with standard floors without complex installations
- Versatile Load Capacity: Suitable for small to extremely large loads up to 300 tons

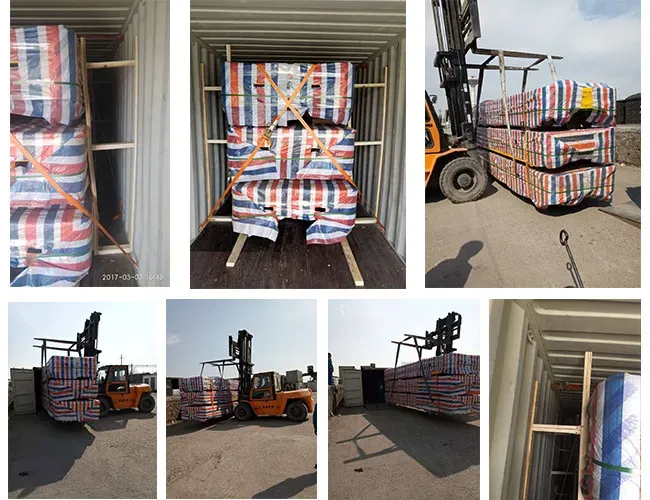

Packaging & Shipping
Standard container shipping available for equipment under 6m length and 2.2m width. Larger dimensions require flat rack containers or bulk cargo arrangements. Multiple units can be consolidated in full containers.
Company Certifications & Strength
Specialized in design and manufacture of flat transfer trolleys and material handling solutions including industrial trailers, transfer cars, electric railway transfer trolleys, scissor lift tables, and turntables.
