Easy Operated 200 Tons Automatic Transfer Trolley Direct Manufacturer

Price Negotiable

Price: US$3000-3500

MOQ: 1 Piece

Delivery Time: 15-25 days

Brand: BETTER

Product Description

Easy Operated 200 Tons Automatic Transfer Trolley

As a direct manufacturer, we present our 200-ton automatic transfer vehicle specifically engineered for handling extremely heavy materials in industrial environments.

Core Configuration

Load Capacity: Rated at 200 tons with multi-axle modular load-sharing design
Frame Construction: Optimized through finite element analysis for high rigidity and excellent fatigue resistance
Navigation System: Laser SLAM navigation suitable for complex environments
Drive System: Multiple high-power servo motors operating independently with heavy-duty polyurethane or McNamee wheels
Power System: Ultra-large capacity lithium battery pack supporting rapid battery replacement
Control System: On-board intelligent controller with one-button start/stop, automatic route planning, multi-vehicle coordination, and remote monitoring

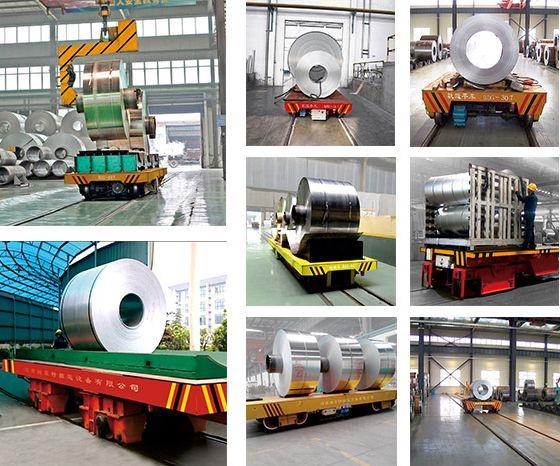

200-ton automatic transfer trolley in industrial setting

Core Functions

Fully Automatic Unmanned Transportation: Automated travel to designated locations for loading, transportation, and unloading without manual intervention
Intelligent Path Planning & Obstacle Avoidance: Real-time environment perception with laser radar, optimal path planning, and active detouring
High-Precision Positioning & Docking: Laser and encoder data integration for precise parking and equipment docking
Multi-Vehicle Collaboration & Scheduling: Central scheduling system integration for coordinated operations and intelligent traffic optimization

Safety Configuration

360° All-Round Safety Protection: Multiple line laser radars, ultrasonic sensors, and full vehicle mechanical anti-collision strips
Emergency Stop System: Multiple emergency stop buttons around vehicle body with remote control emergency stop capability
Sound & Light Warning System: Clear audible and visual warnings during operation and turns

Automatic transfer trolley safety features and controls

Customization Features

Platform Customization: Custom dimensions, shapes (flat, concave, swivel neck), ground height, with optional hydraulic lifting, rotation, and lateral movement
Special Carriers: T-slot platforms, V-shaped saddles for rolled materials, container locks, and modular fixtures
Environmental Adaptability: Explosion-proof, extremely cold, high-temperature, and clean room versions available
System Integration: Seamless connection with enterprise MES/ERP/WMS systems for real-time task management

Industrial Applications

Designed specifically for handling the largest and most crucial component flows in manufacturing industries:

Aerospace: Precise transportation and docking of aircraft fuselage sections, wings, and engines
Shipbuilding: Movement and positioning of hull sections and large modules within shipyards
Energy Equipment: In-plant transportation of wind turbine cabins, blades, transformers, and nuclear power pressure vessels
Heavy Machinery: Assembly and transportation of mining vehicle frames, excavator chassis, and port machinery structures
Extra-Large Molds: Replacement and maintenance transportation of giant injection molding and press casting molds

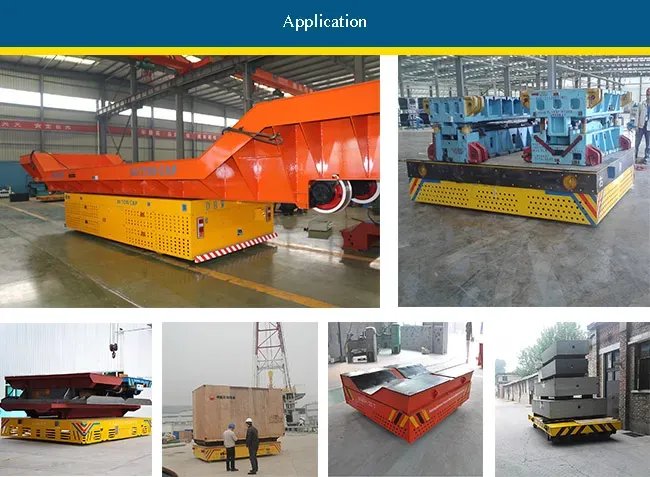

Heavy industrial transfer trackless steel coil transfer electric flat cart

Technical Specifications

Model	BJT-2t	BJT-5t	BJT-10t	BJT-16t	BJT-20t	BJT-25t	BJT-30t	BJT-40t	BJT-50t	BJT-63t	BJT-80t	BJT-100t	BJT-150t
Rated Load (t)	2	5	10	16	20	25	30	40	50	63	80	100	150
Table Size Length (mm)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600	6000	6500	10000
Table Size Width (mm)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500	2600	2800	3000
Table Size Height (mm)	500	550	550	600	600	650	650	700	700	800	900	1000	1200
Wheel Base (mm)	1200	2500	2600	2800	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail Inner Gauge (mm)	1200	1435	1435	1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Diameter (mm)	270	270	300	350	350	400	400	500	500	600	600	600	600
Wheel Quantity	4	4	4	4	4	4	4	4	4	4	4	4	8
Ground Clearance (mm)	50	50	50	50	50	50	50	50	50	75	50	75	75
Running Speed (m/min)	0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	20	20	20	18
Motor Power (kw)	0.8	0.8	1.5	2.2	2.5	3	4	5.5	5.5	7.5	7.5	11	15
Running Distance (m)	25	25	25	25	30	30	50	50	50	50	50	50	50
Max Wheel Load (KN)	14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Recommended Rail Model	P15	P18	P18	P24	P24	P38	P38	P43	P43	P50	P50	QU100	QU100

Transportation & Shipping

Standard Container Shipping: For equipment under 6m length and 2.2m width - transported via 20ft container
Extended Container Shipping: For equipment between 5.9m-12m length - transported via 40ft container
Multiple Units: 2-3 sets can be shipped in full containers; single units via LCL container
Oversized Equipment: Equipment exceeding standard dimensions requires flat rack containers (20ft or 40ft) or bulk cargo shipping
