Factory Supplying Industrial Turnplate For Conveyor System
Price:
US$3000-3500
MOQ:
1 Piece
Delivery Time:
15-20 days
Brand:
BETTER

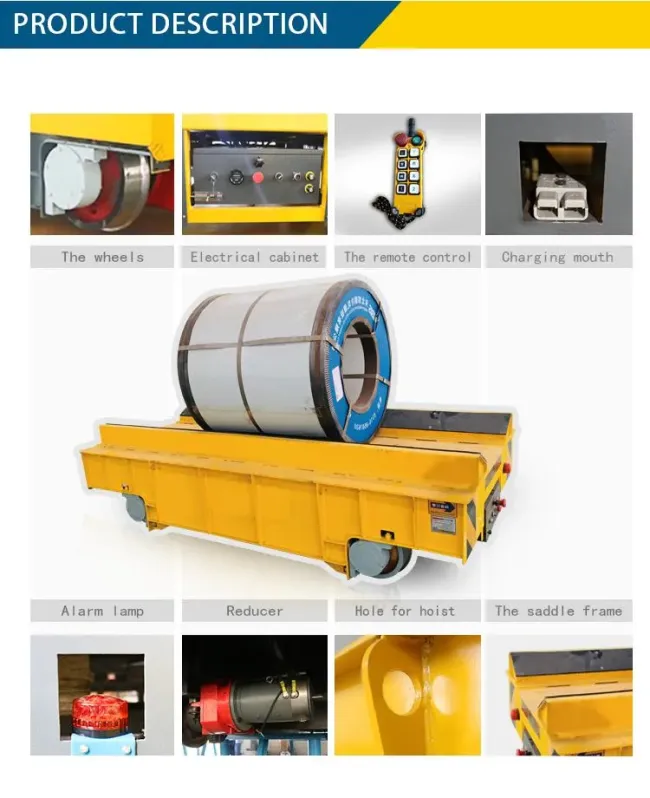

Product Description
Industrial Turntable for Conveyor Systems
Our factory specializes in manufacturing industrial turntables that serve as efficient reversing and diversion devices integrated into various conveying systems including roller lines, chain plate lines, and belt lines. These precision rotating mechanisms enable smooth material turning at 90°, 180°, and any custom angle, making them essential for optimizing production line layout and enhancing logistics efficiency.
Core Configuration
- Load-bearing capacity: Standard models handle 1-150 tons with custom designs up to 300 tons
- Drive method: Electric rotary drive or pneumatic drive for different timing and precision requirements
- Rotation angle: Supports continuous rotation of 90°, 180°, and 360°, plus custom angles
- Interface integration: Compatible with power rollers, chain plates, belts, or lifting transplanting devices
Core Functions
- Flexible direction change: Automatically alters material movement direction at conveyor nodes
- High-precision positioning: ±0.1° stop angle accuracy with servo drive and slewing bearings
- Space optimization: Reduces required floor area compared to traditional turning conveying lines
- Efficient cycle time: Quick start/stop response for high-speed production line requirements
- Seamless integration: Compatible with AGVs, mechanical hands, elevators, and automated material flow networks
Safety Configuration
- Area protection with safety curtains or laser scanners
- Overload protection and over-limit protection systems
- Emergency stop button and anti-pinch design between platform and fixed frame
- Optional sound and light warning alerts during operation
Customization Features
- Custom dimensions, table design, and load-bearing capacity
- Various conveyor interfaces including power rollers, chain plates, and belts
- Special features like weighing systems and anti-static treatments
- Environmental adaptations including dust-proof, waterproof, explosion-proof, and high-temperature resistance
Product Specifications
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 | |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |

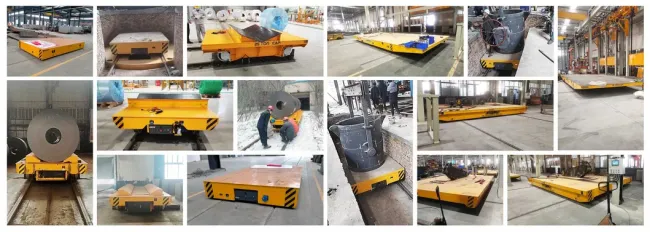

Application Examples
Customization Inquiry
To customize your transfer cart, please provide the following information:
- Type of load or product to be transferred
- Weight of the heaviest lift or load
- Dimensions (Length × Width × Height)
- Trip time and frequency (# of trips per shift, shifts per day)
- Travel area specifications (rail/cement floor, indoor/outdoor, straight line travel)
- Travel distance and other relevant operating conditions
Our Advantages
- Low noise operation for improved working environment
- Maximum safety with comprehensive protection systems for operators and materials
- Easy operation with user-friendly controls and comprehensive support
- Easy implementation into existing manufacturing processes without complex installation
- Suitable for all weights from small loads to extremely heavy loads up to 300 tons
Packaging & Shipping
For equipment with length less than 6m and width less than 2.2m: Transported by 20ft container. For length between 5.9m and 12m: Transported by 40ft container. Multiple sets can be transported by full container, single sets by LCL container. For widths beyond 2.2m: Transported by flat rack (20 or 40 ft). Larger dimensions require bulk cargo shipping.
