This is a 90-ton heavy-duty high-temperature resistant track transfer vehicle specially designed for high-temperature working environments (such as heat treatment workshops, forging workshops, and high-temperature storage areas). It is equipped with special high-temperature resistant materials and heat insulation protection design, and can stably and safely complete the track transportation tasks of heavy workpieces, hot materials, and high-temperature molds under harsh conditions where the ambient temperature can reach up to 200°C or even higher. It is a key logistics node equipment connecting the high-temperature production processes with the normal-temperature storage areas.

Core configuration
Load capacity: Rated at 90 tons. The frame is made of high-strength heat-resistant alloy steel, maintaining excellent rigidity even at high temperatures.
Temperature resistance grade: Standard type can withstand environmental temperature of 200°C, while customized type can withstand up to 500°C (for example, when transporting hot steel billets or hot forgings).
Multilayer composite insulation layer: The bottom of the vehicle body, the motor compartment, the electronic control box and other key parts are covered with high-temperature resistant insulation materials.
Heat reflection coating: The vehicle body surface is sprayed with high-temperature-resistant heat reflection paint.
Water-cooling/Fan-cooling System (Optional): Provides active cooling for key components such as the drive motor, cables, and bearings.
Power supply method: High-temperature resistant cable drum (preferred) or safety sliding contact line (with high-temperature resistant sheath).

Core Function:
Stable operation in high-temperature environment: All key components (motors, bearings, cables, electrical components) have been selected for high-temperature resistance and equipped with special protection, ensuring reliable operation for a long time in high-temperature conditions.
Safe transportation of hot materials: Specifically designed for transporting hot steel billets, hot forgings, and red-hot molds, the loading platform is also treated with heat insulation to prevent heat from being conducted downward and damaging the vehicle body.
Precise positioning and docking: Even in high-temperature conditions, precise docking can be achieved within ±15mm, facilitating docking with high-temperature furnaces, quenching tanks, and heat treatment equipment.
Long-distance continuous operation: Powered by high-temperature cable drums, it can meet the long-distance, continuous round-trip transportation requirements between high-temperature areas and normal temperature areas.

Safety Configuration:
High Temperature Warning and Protection: Temperature sensors are installed at key parts (motor, bearing, electrical control box), and automatic alarms or shutdowns occur when the temperature exceeds the limit.

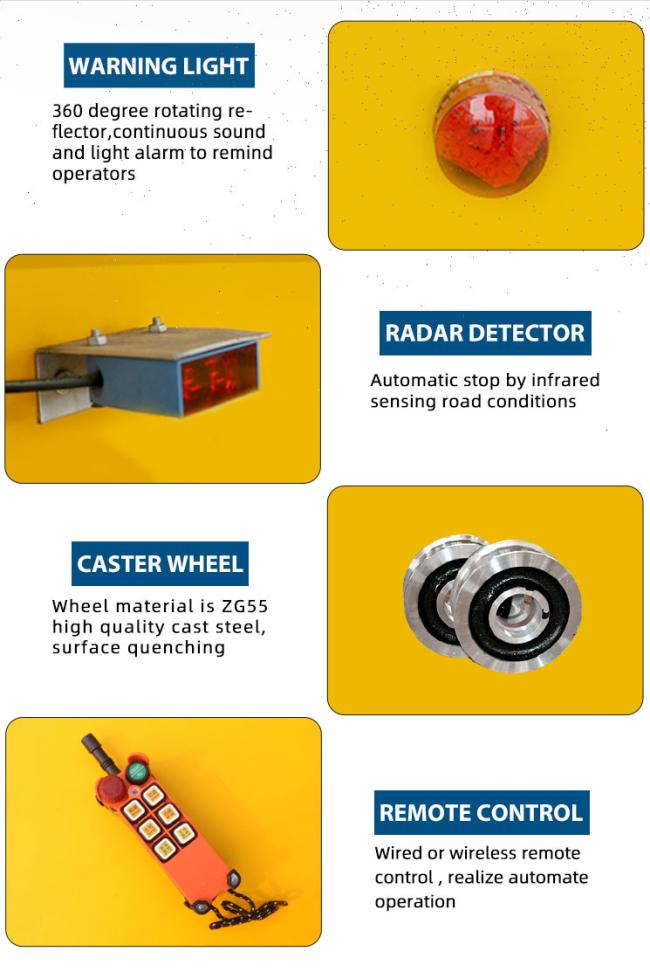

Operational Safety: Sound and light alarms, front and rear anti-collision buffer devices, and emergency stop switches are equipped.
Parking Safety: Dual guarantees of high-temperature electromagnetic brakes and manual mechanical brakes.

Customization Features:
Platform Customization: Customizable high-temperature-resistant flat plates, V-shaped saddle seats (for transporting hot steel coils), concave platforms (for transporting hot steel ingots), or platforms with positioning grooves for molds.
Cooling System Upgrade: Optional for forced air cooling or water circulation cooling systems based on operational intensity to actively cool critical components.
Remote Control Operation: Operators can control the vehicle from a safe distance using a wireless remote control, avoiding exposure to high-temperature radiation.
Automated Alignment: Can be linked with high-temperature furnace doors and heat treatment equipment to achieve automatic opening, automatic loading and unloading.

     ---- Low noise  It causes low noise level.
       ---- Maximum safety  Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
     ---- Easy for operation  These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
       ---- Easy to implement into manufacturing process  Operates on standard floors; Do not require complex or permanent installation
       ---- Suitable for All Kinds of Weight  The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
* If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
