Industrial motorized trackless transfer cart featuring pu wheels for heavy material transport and flexible site navigation
Price:
US$3000-3500
MOQ:
1 Piece
Delivery Time:
15-20 days
Brand:
BETTER
Product Description

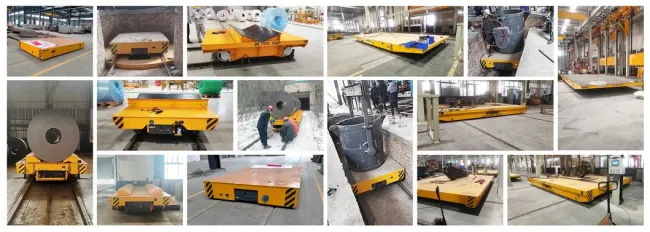

Industrial Motorized Trackless Transfer Cart
Electric transfer vehicle designed for industrial heavy-load material transportation featuring high-capacity polyurethane wheels and flexible on-site navigation for free movement without tracks.
Core Configuration
- Load Capacity: Customizable from 1 to 1500 tons
- Walking System: Heavy-duty polyurethane rubber-coated wheels with low ground pressure, floor protection, and low operating noise
- Drive System: High-power AC variable-frequency motor or servo motor with two-wheel or four-wheel drive options, smooth start/stop, and continuous speed adjustment
- Power System: High energy density lithium iron phosphate battery pack with 8-12 hour range, supporting fast charging and battery swapping
- Navigation Method: Wireless remote control (standard), laser SLAM natural navigation, magnetic strip/magnetic nail navigation, QR code navigation, or inertial navigation
- Steering System: Front-wheel steering standard with optional four-wheel steering or omnidirectional wheel set for crab-like movement, diagonal movement, and spinning
- Control Method: Industrial-grade wireless remote control (standard) or vehicle-mounted touch screen/tablet (optional)
Core Functions
Remote Control & Navigation
Operator-controlled wireless operation for flexible non-fixed route handling. Automatic navigation modes include laser SLAM natural navigation (no ground markers required), magnetic navigation, and QR code navigation for precision fixed path tracking.
Heavy-Load Stable Transportation
Multi-wheel balanced design with optional hydraulic suspension system absorbs impact from uneven road surfaces, ensuring stable operation under heavy loads.
Precise Positioning & Docking
Variable frequency speed regulation and encoder feedback enable precise docking with production lines, shelves, and loading/unloading equipment.
Safety Configuration
- 360° Active Collision Prevention: Laser radar or ultrasonic sensors detect obstacles in real time with automatic slowdown or emergency stop
- Multiple Emergency Braking: Three-layer safety including remote control emergency stop, vehicle emergency stop button, and mechanical anti-collision bar with automatic braking during signal loss
- Sound & Light Warning System: Clear audible and visual warnings during operation, turning, and reversing
- Battery Safety: Intelligent battery management system with protection against overcharging, overdischarging, overheating, and short circuits
Customization Options
- Platform Customization: Dimensions, shape (flat, concave, swivel neck), ground height tailored to workpiece requirements with hydraulic lifting, rotation, and lateral movement integration
- Special Carriers: V-shaped saddle seats for rolled materials, T-shaped slot platforms for workpiece fixing, roller lines for automatic loading/unloading, clamping devices
- Navigation Upgrade: Various navigation methods available with central dispatch system integration for multi-vehicle collaboration
- Environment Adaptation: Special versions including explosion-proof, high-temperature resistant, corrosion-resistant, and clean room configurations
Product Parameters
| Model | BXC-2t | BXC-5t | BXC-10t | BXC-16t | BXC-20t | BXC-25t | BXC-30t | BXC-40t | BXC-50t | BXC-63t | BXC-80t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 3 | 2.2 | 2.2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 180 | 200 | 220 | 220 | 260 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
Applications
Ideal for industrial scenarios requiring high ground protection and flexible path navigation:
- Precision Manufacturing Workshop: Transfer precision molds, machine parts, and electronic products on epoxy floors without damage
- Automobile Component Assembly Line: Flexible transfer of engines, transmissions, seats between assembly lines
- Warehousing & Distribution Center: Flexible transfer and picking of heavy palletized goods on wear-resistant floors
- Steel & Non-Ferrous Metals: High-density stacking and picking operations for steel coils, aluminum coils, and sheet materials on hardened floors
- Aerospace: Precise transfer and docking of aircraft components within assembly workshops
- Mold Industry: Transportation of large molds between machining centers and mold clamping areas
Manufacturing Process
- CNC Cutting: Steel plates transported from raw material warehouse to CNC cutting workshop for precision cutting
- Preliminary Assembling: Cut steel plates assembled according to design specifications
- Welding: Automated welding of steel plates using automatic welding machines
- Post Weld Treatment: Welding section testing, polishing, burring, and stress elimination
- Spray Primer: Zinc-rich epoxy anti-rust primer application in two layers
- Assembling: Integration of structure parts with wheels, motors, and gear boxes
- Paint Finish: Final painting after primer inspection
- Debugging: Electrical control system testing with no-load and load testing before storage
Customization Inquiry
For custom transfer cart solutions, please provide:
- Type of load or product to be transferred
- Weight of heaviest lift or load
- Dimensions (Length, Width, Height)
- Trip time and frequency (# of trips per shift, shifts per day)
- Travel area specifications (rail/cement floor, indoor/outdoor, straight line travel, etc.)
- Travel distance requirements
- Other relevant information or operating conditions
Our Advantages
- Low Noise Operation: Minimal noise level during operation
- Maximum Safety: Comprehensive safety features for operators and materials
- Easy Operation: User-friendly driving with comprehensive support
- Easy Implementation: Operates on standard floors without complex permanent installation
- Suitable for All Weights: Modular fabrication handles both small and extremely large loads up to 300 tons
